Eaton 3-Pole Flush Isolator Switch -, IP65, 25A, 13 kW

RS Stock No.:: 266-4595
Mfr. Part No.:: 014822 P1-25/EA/SVB-SW/2HI11
Brand:: Eaton

Eaton 3-Pole Flush Isolator Switch -, IP65, 25A, 13 kW

Subtotal (1 unit)*

£76.16

(exc. VAT)

£91.39

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 09 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£76.16

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 266-4595
Mfr. Part No.:: 014822 P1-25/EA/SVB-SW/2HI11
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	3
	Product Type	Isolator Switch
	Mount Type	Flush
	IP Rating	IP65
	Switching Current	25A
	Series	14
	Terminal Type	Screw
	Auxiliary Contacts Available	Yes
	Switching DC Voltage	24V
	Minimum Operating Temperature	-25°C
	Switching Power	13kW
	Switching AC Voltage	690V
	Maximum Operating Temperature	+50°C
	Depth	119mm
	Standards/Approvals	CSA-C22.2 No. 60947-4-1-14, CSA-C22.2 No. 94, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, VDE 0660, CE, CSA
	Width	83mm
	Hazardous Area Certification	No
	Length	119mm

	Select all
	Brand Eaton
	Number of Poles 3
	Product Type Isolator Switch
	Mount Type Flush
	IP Rating IP65
	Switching Current 25A
	Series 14
	Terminal Type Screw
	Auxiliary Contacts Available Yes
	Switching DC Voltage 24V
	Minimum Operating Temperature -25°C
	Switching Power 13kW
	Switching AC Voltage 690V
	Maximum Operating Temperature +50°C
	Depth 119mm
	Standards/Approvals CSA-C22.2 No. 60947-4-1-14, CSA-C22.2 No. 94, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, VDE 0660, CE, CSA
	Width 83mm
	Hazardous Area Certification No
	Length 119mm

COO (Country of Origin):: GB

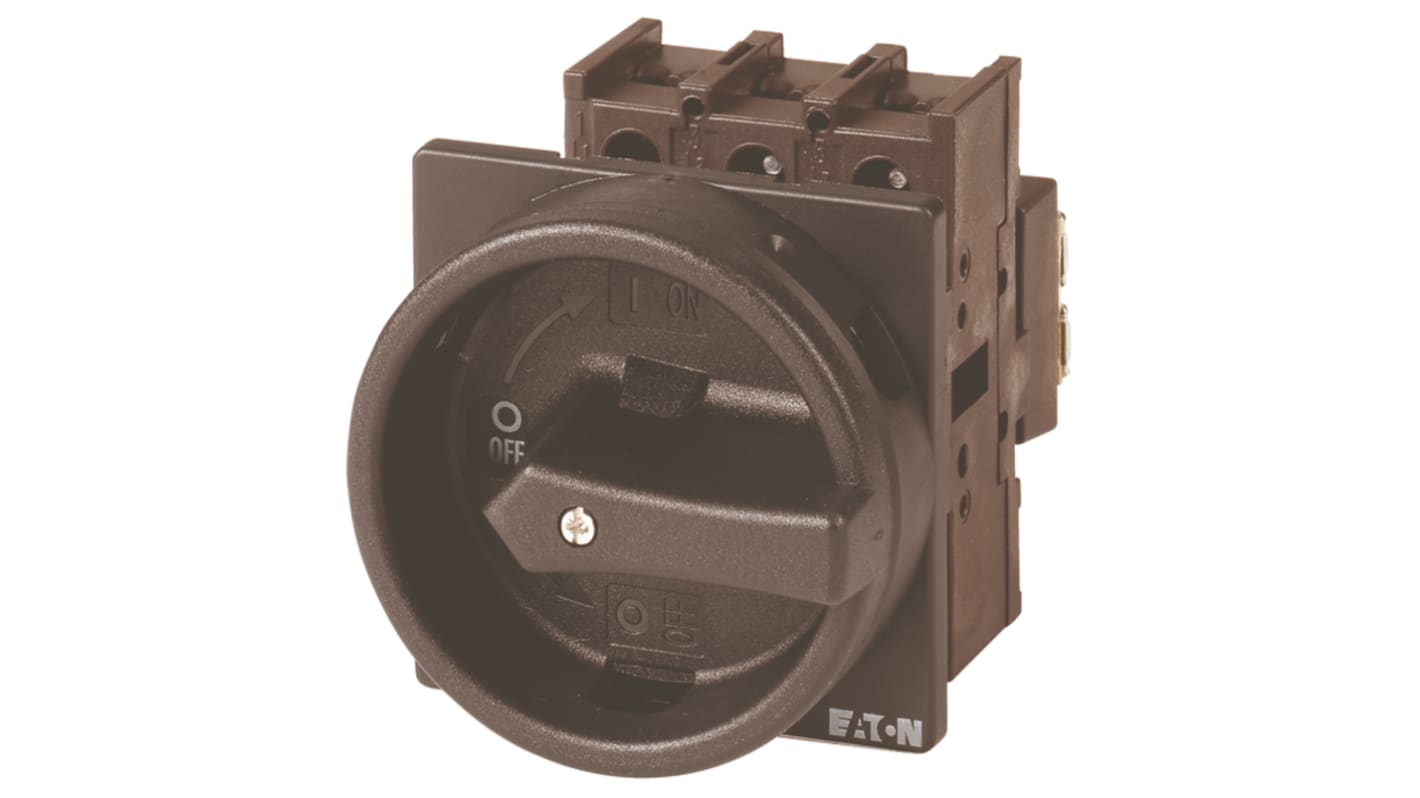

Eaton Isolator Switch, 25A Maximum Current, Flush Mount Type - 014822 P1-25/EA/SVB-SW/2HI11

This isolator switch is a Crucial component for managing electrical systems, designed to provide effective control and safety. With a robust flush mount design, this device measures 119mm in length, 83mm in width, and 119mm in depth. Its 3 poles support a maximum current of 25A and a voltage rating of 690V, making it suitable for high-performance applications. The switch is IP65 rated on the front side, ensuring protection against dust and water ingress, which enhances its reliability in various environments.

Features & Benefits

• Supports up to 25A for robust performance
• 3 pole switch configuration for versatile connections
• Flush mount design for neat installation
• Available auxiliary contacts for added functionality
• Operates effectively within -25°C to +50°C temperature range

Applications

• Ideal for use in industrial automation systems
• Suitable for electrical distribution in machinery
• Used for circuit isolation in control panels
• Ideal for high current in various installations

What type of Terminal connection is used for installation?

The switch features a screw Terminal type, allowing for secure and reliable connections to the electrical system.

What is the normal state configuration for this device?

This device is designed with a normal state configuration of 2 normally closed (NC) contacts and 2 normally open (NO) contacts, ensuring flexibility in control.

Can this product function effectively in outdoor installations?

Yes, the IP65 front rating provides excellent protection against water and dust, making it suitable for outdoor applications with exposure to the elements.
