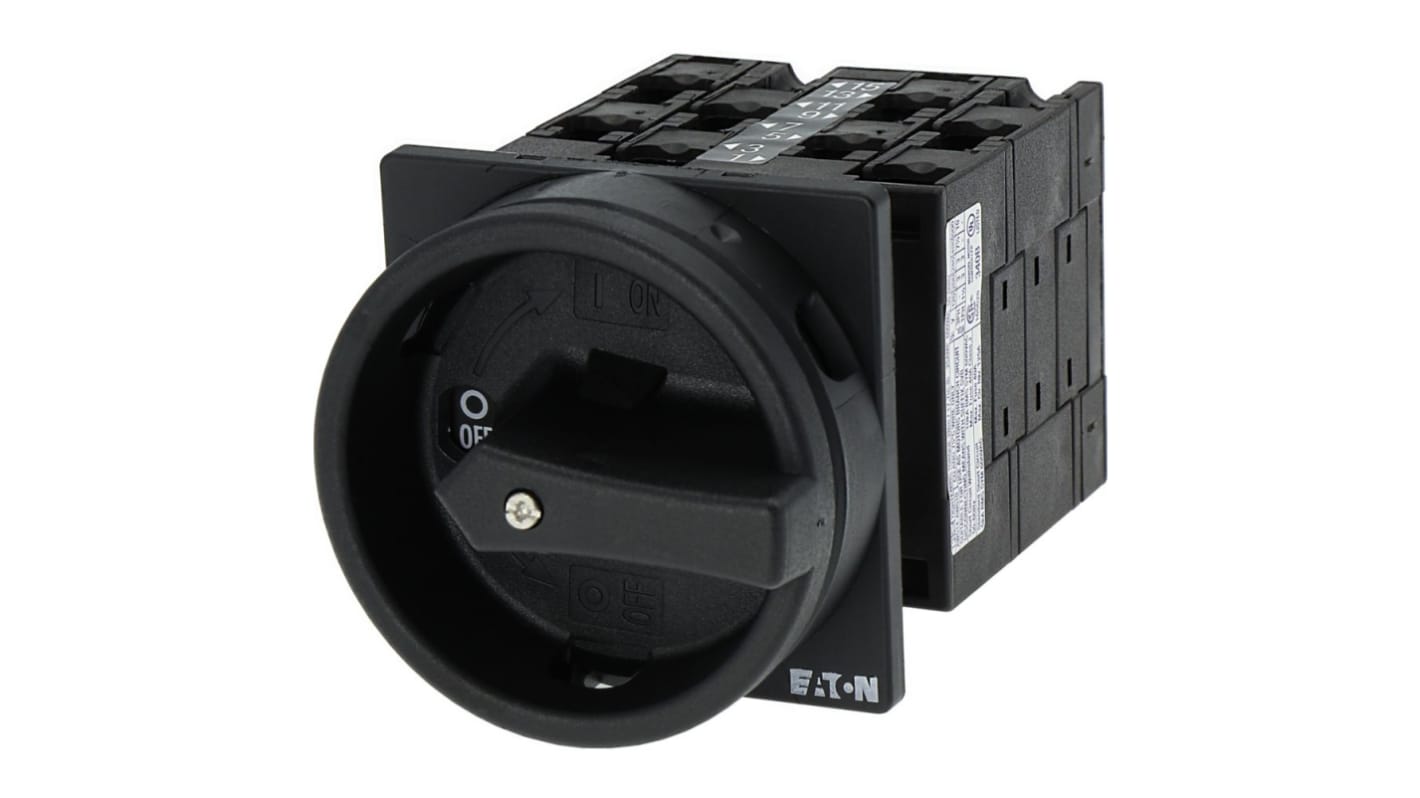

Eaton 6 Pole Flush Mount Isolator Switch - 32A Maximum Current, 15kW Power Rating, IP65
- RS Stock No.:
- 269-9737
- Mfr. Part No.:
- 057089 T3-4-15682/EA/SVB-SW
- Brand:
- Eaton
Subtotal (1 unit)*
£98.79
(exc. VAT)
£118.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £98.79 |
*price indicative
- RS Stock No.:
- 269-9737
- Mfr. Part No.:
- 057089 T3-4-15682/EA/SVB-SW
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 6 | |
| Maximum Current | 32A | |
| Mounting Type | Flush Mount | |
| IP Rating | IP65 | |
| Power Rating | 15kW | |
| Voltage Rating | 690V | |
| Electrical Phase | 3 | |
| Accepts Padlocks | Yes | |
| Handle Colour | Black | |
| Series | T3 | |
| Normal State Configuration | 1NC/1NO | |
| Model Number | T3-4-15682/EA/SVB-SW | |
| Enclosed/Not Enclosed | Not-enclosed | |
| Switch Rating | 25A | |
| Length | 139mm | |
| Width | 65mm | |
| Depth | 139mm | |
| Throw Configuration | Single | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +50°C | |
| Terminal Type | Screw | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 6 | ||
Maximum Current 32A | ||
Mounting Type Flush Mount | ||
IP Rating IP65 | ||
Power Rating 15kW | ||
Voltage Rating 690V | ||
Electrical Phase 3 | ||
Accepts Padlocks Yes | ||
Handle Colour Black | ||
Series T3 | ||
Normal State Configuration 1NC/1NO | ||
Model Number T3-4-15682/EA/SVB-SW | ||
Enclosed/Not Enclosed Not-enclosed | ||
Switch Rating 25A | ||
Length 139mm | ||
Width 65mm | ||
Depth 139mm | ||
Throw Configuration Single | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +50°C | ||
Terminal Type Screw | ||
- COO (Country of Origin):
- GB
Eaton Isolator Switch - 057089 T3-4-15682/EA/SVB-SW
The Eaton main switch that has operating frequency 1200 operations per hour. It has six number of pole and it is suitable for branch circuits, suitable as motor disconnect.
Degree of protection IP65
90 degree switching angle
90 degree switching angle
