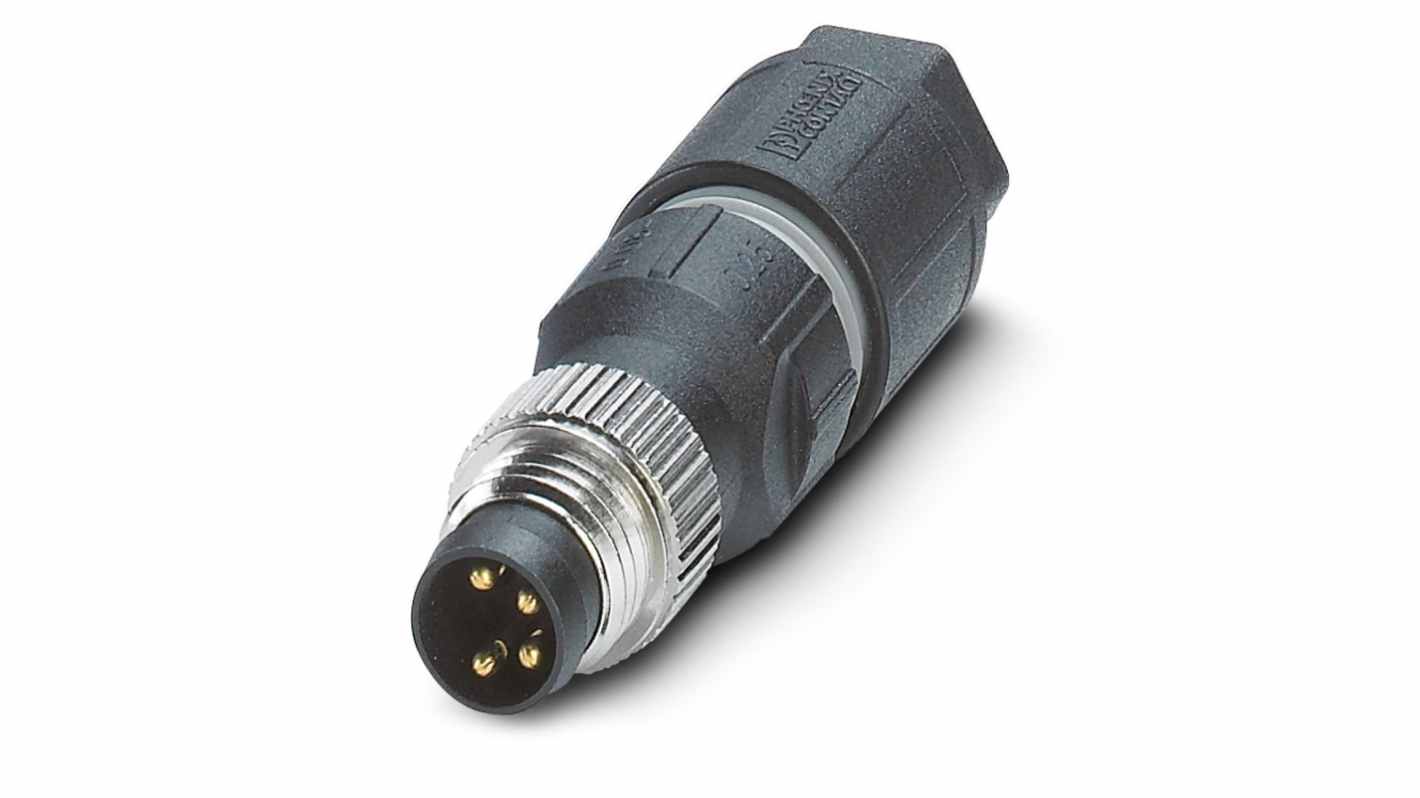

Phoenix Contact Circular Connector, 4 Contacts, M8 Connector, Plug, Male, IP65, IP67, SACC Series
- RS Stock No.:
- 721-0819
- Distrelec Article No.:
- 110-33-769
- Mfr. Part No.:
- 1441037
- Brand:
- Phoenix Contact
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£13.99
(exc. VAT)
£16.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 40 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.99 |
| 5 - 24 | £13.28 |
| 25 - 49 | £12.60 |
| 50 + | £11.89 |
*price indicative
- RS Stock No.:
- 721-0819
- Distrelec Article No.:
- 110-33-769
- Mfr. Part No.:
- 1441037
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 4 | |
| Product Type | Circular Connector | |
| Connector Size | M8 | |
| Current | 4A | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| IP Rating | IP65, IP67 | |
| Orientation | Straight | |
| Series | SACC | |
| Coding | A | |
| Voltage | 30.0V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 80°C | |
| Housing Material | Polyamide | |
| Standards/Approvals | No | |
| Contact Plating | Nickel | |
| Contact Material | Copper Tin | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Product Type Circular Connector | ||
Connector Size M8 | ||
Current 4A | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
IP Rating IP65, IP67 | ||
Orientation Straight | ||
Series SACC | ||
Coding A | ||
Voltage 30.0V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 80°C | ||
Housing Material Polyamide | ||
Standards/Approvals No | ||
Contact Plating Nickel | ||
Contact Material Copper Tin | ||
- COO (Country of Origin):
- DE
Phoenix Contact Circular Connector, 4A Current Rating, 30V Voltage Rating - SACC-M 8MS-4QO-0.5-M - 1441037
When you need to be sure of a safe and stable signal in the field, reach for this circular connector from Phoenix Contact. It's a male-gendered plug with four contact pins and a knurled screw, so you get a firm fix to compatible parts. The sturdy polymer body and durable PVC insulation ensure it can hold its own in tough settings.
An A-coded design makes this M8 connector widely compatible. Whether you're linking up sensors, actuators or industrial motors, you can transfer power and signal right at the device's level to be sure of reliable transmission. Thanks to a voltage rating of 30V, the connector is up to the challenge posed by heavy-duty applications.
Connecting your cable is done in a flash, thanks to innovative QUICKON insulation displacement technology. You'll save time on assembly as there's no need to strip wires or use any special tools. Just slot your conductors in, tighten the connector with a wrench and you're ready to go.
Features & Benefits
• 4A current rating for use with high-powered installations
• Operating temperature range between -40°C and +80°C means it performs reliably in harsh environments
• Ergonomic circular body for easy handling
• Nickel-plated brass contacts resist wear and corrosion
