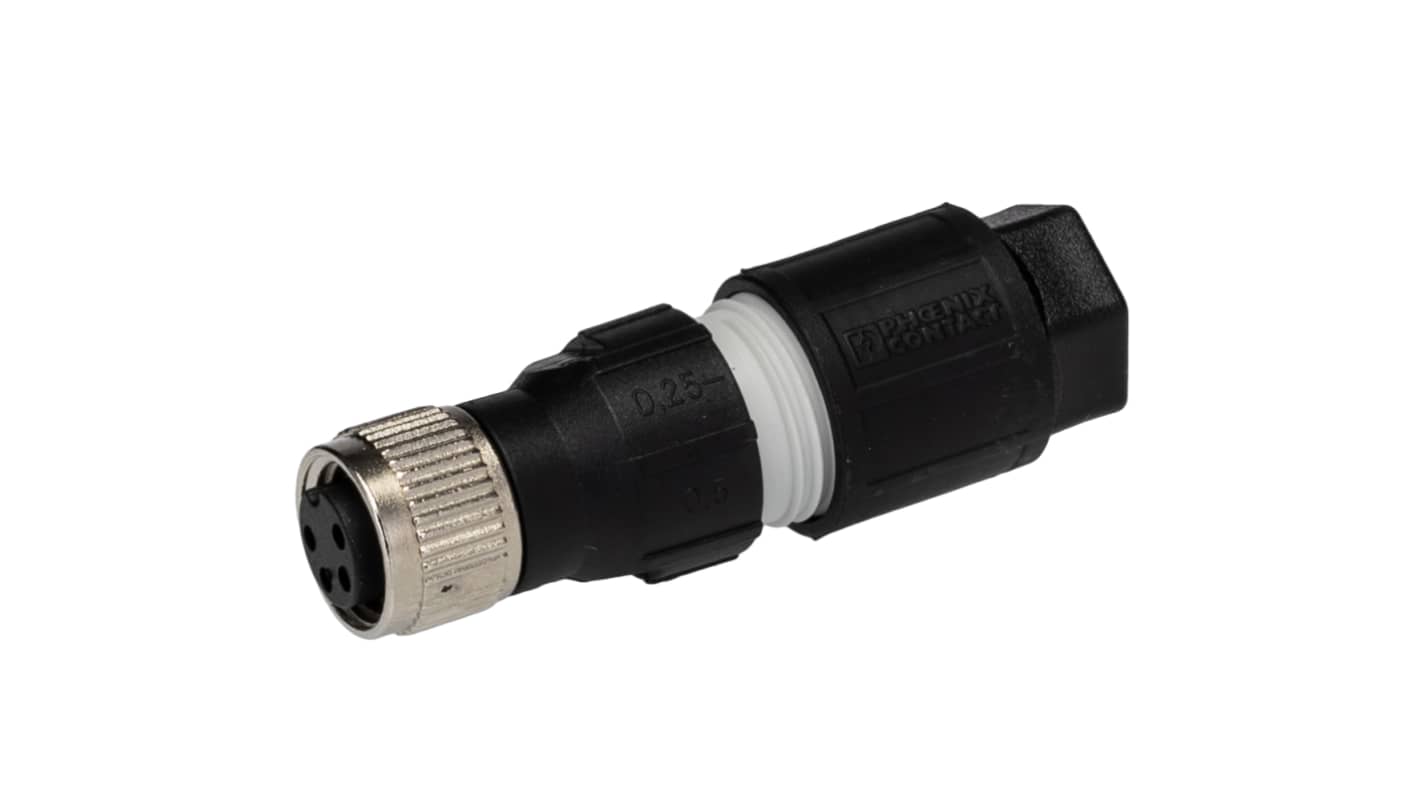

Phoenix Contact Circular Connector, 4 Contacts, M8 Connector, Socket, Female, IP65, IP67, SACC Series
- RS Stock No.:
- 721-0822
- Mfr. Part No.:
- 1441079
- Brand:
- Phoenix Contact
41 In stock - FREE next working day delivery available
8 available from Europe for delivery within 1 working day(s).
Added
Price Each
£14.62
(exc. VAT)
£17.54
(inc. VAT)
Units | Per unit |
1 - 4 | £14.62 |
5 - 24 | £13.87 |
25 - 49 | £13.17 |
50 + | £12.41 |
- RS Stock No.:
- 721-0822
- Mfr. Part No.:
- 1441079
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Phoenix Contact Circular Connector, Copper and Tin Contact Material, A-Coded - SACC-M 8FS-4QO-0,5-M - 1441079
Bridge the gap between sensor cables and your industrial equipment with this circular connector from Phoenix Contact. Its copper and tin contacts provide a safe signal transmission channel and prevent you from making contact with live parts. This keeps hazards like electric shocks at bay. The unit's PA housing provides impact resistance that's handy in harsh industrial environments. Its M8 socket is widely compatible and an integrated knurl screw ensures you achieve a secure, vibration-proof link to your appliance.
This connector has NBR seals that block out dust and contaminants to ensure your connection has integrity. Thanks to the insulation displacement connection method, you don't need to strip or twist wires in your cable, so you can rest assured of long-term performance. A 4A current rating makes this the right choice for light-duty applications. You'll find it commonly used with material handling equipment.
This connector has NBR seals that block out dust and contaminants to ensure your connection has integrity. Thanks to the insulation displacement connection method, you don't need to strip or twist wires in your cable, so you can rest assured of long-term performance. A 4A current rating makes this the right choice for light-duty applications. You'll find it commonly used with material handling equipment.
Features & Benefits
• Withstands operating temperatures between -25°C and +80°C, making it fit for demanding conditions
• UL 94-HB rating shows that it stops burning as soon as the source of a flame is removed
• Compact dimensions of 38.8 (L) x 12.5mm (⌀) for space-efficient installation in tight setups
• UL 94-HB rating shows that it stops burning as soon as the source of a flame is removed
• Compact dimensions of 38.8 (L) x 12.5mm (⌀) for space-efficient installation in tight setups
Specifications
Attribute | Value |
---|---|
Number of Contacts | 4 |
Connector Size | M8 |
Plug/Socket | Socket |
Contact Gender | Female |
IP Rating | IP65, IP67 |
Current Rating | 4A |
Body Orientation | Straight |
Series | SACC |
Coding | A |
Voltage Rating | 30 V |
Mating Type | A Coded |
Housing Material | PA6 |
Contact Plating | Nickel |
Shielded/Unshielded | Unshielded |
Minimum Operating Temperature | -25°C |
Outer Diameter | 2.5 → 5mm |
Contact Material | CuSn |
Maximum Operating Temperature | +80°C |
