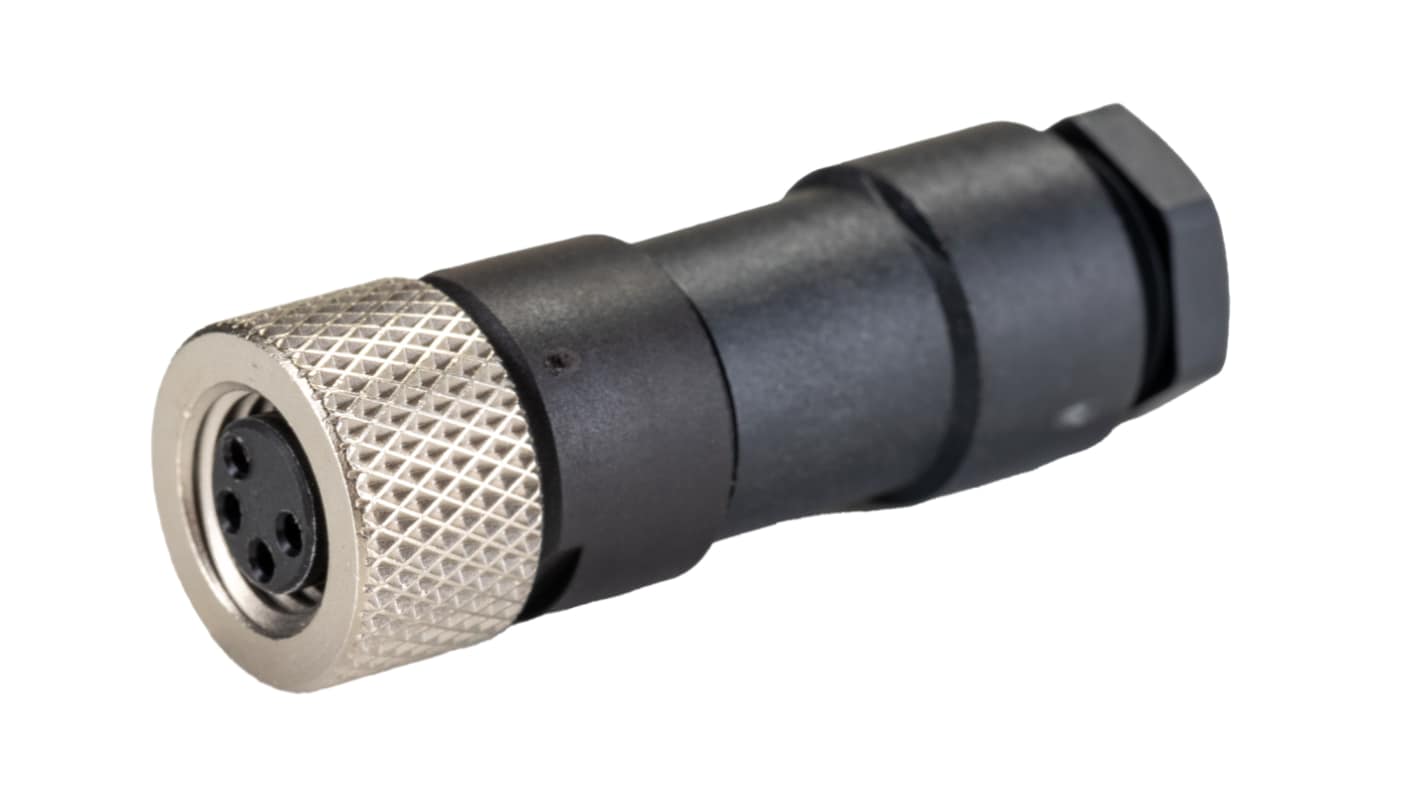

Phoenix Contact Circular Connector, 4 Contacts, M8 Connector, Socket, Female, IP67, SACC Series
- RS Stock No.:
- 857-0065
- Distrelec Article No.:
- 144-18-259
- Mfr. Part No.:
- 1681185
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£10.81
(exc. VAT)
£12.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 67 unit(s) ready to ship
- Plus 84 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £10.81 |
*price indicative
- RS Stock No.:
- 857-0065
- Distrelec Article No.:
- 144-18-259
- Mfr. Part No.:
- 1681185
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 4 | |
Connector Size | M8 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
IP Rating | IP67 | |
Current Rating | 4A | |
Body Orientation | Straight | |
Series | SACC | |
Voltage Rating | 30 V ac\dc | |
Coding | A | |
Housing Material | Brass | |
Contact Plating | Nickel | |
Shielded/Unshielded | Unshielded | |
Minimum Operating Temperature | -40°C | |
Outer Diameter | 12mm | |
Maximum Operating Temperature | '+85°C | |
Contact Material | CuZn | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Connector Size M8 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
IP Rating IP67 | ||
Current Rating 4A | ||
Body Orientation Straight | ||
Series SACC | ||
Voltage Rating 30 V ac\dc | ||
Coding A | ||
Housing Material Brass | ||
Contact Plating Nickel | ||
Shielded/Unshielded Unshielded | ||
Minimum Operating Temperature -40°C | ||
Outer Diameter 12mm | ||
Maximum Operating Temperature '+85°C | ||
Contact Material CuZn | ||
- COO (Country of Origin):
- DE
Phoenix Contact Circular Connector, 4 Contacts, IP67 - 1681185
This circular connector in the SACC-M series features a robust design with a maximum operating temperature of +85°C and a minimum operating temperature of -40°C. It supports a voltage rating of 30 VAC/DC, making it suitable for various applications requiring reliable electrical performance. The connector has a compact 4-position configuration with a straight M8 socket design for easy installation.
Features & Benefits
• IP67 rating ensures dust and water resistance
• Supports up to 4A current, versatile for various devices
• Solder connection method ensures strong, permanent connections
• Compact size enhances accessibility in tight spaces
• Nickel-plated contacts made from CuZn (copper-zinc) material
• Housing constructed from Brass
• Resistant to shock and vibration, ensuring rugged performance
• Supports up to 4A current, versatile for various devices
• Solder connection method ensures strong, permanent connections
• Compact size enhances accessibility in tight spaces
• Nickel-plated contacts made from CuZn (copper-zinc) material
• Housing constructed from Brass
• Resistant to shock and vibration, ensuring rugged performance
Applications
• Utilised for sensor and actuator connections
• Ideal for applications requiring robust environmental protection
• Commonly used in automation equipment
• Suitable for industrial machinery requiring dependable signal transmission
• Ideal for applications requiring robust environmental protection
• Commonly used in automation equipment
• Suitable for industrial machinery requiring dependable signal transmission
Is it compatible with various cable sizes?
Yes, it supports cable diameters of 3.5mm to 5mm.
