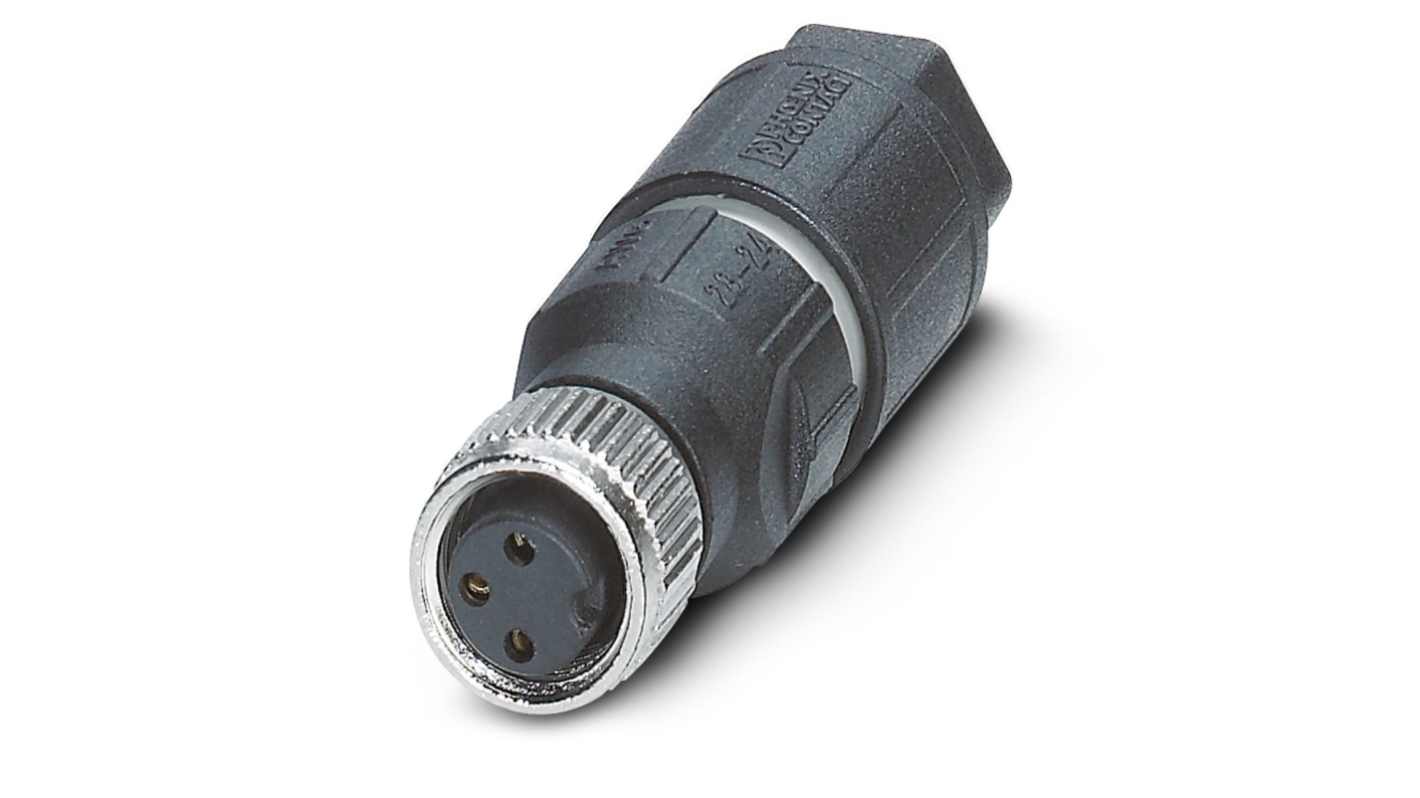

Phoenix Contact Circular Connector, 3 Contacts, Cable Mount, M8 Connector, Socket, Female, IP65, IP67, SACC Series
- RS Stock No.:
- 721-0831
- Distrelec Article No.:
- 110-33-773
- Mfr. Part No.:
- 1441066
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£13.74
(exc. VAT)
£16.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 69 unit(s) shipping from 06 October 2025
- Plus 33 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £13.74 |
5 - 24 | £13.05 |
25 - 49 | £12.40 |
50 + | £11.68 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£12.28
(exc. VAT)
£14.74
(inc. VAT)
- RS Stock No.:
- 721-0831
- Distrelec Article No.:
- 110-33-773
- Mfr. Part No.:
- 1441066
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 3 | |
Mounting Type | Cable Mount | |
Connector Size | M8 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
IP Rating | IP65, IP67 | |
Current Rating | 4.0A | |
Series | SACC | |
Body Orientation | Straight | |
Coding | A | |
Voltage Rating | 60.0 V | |
Mating Type | A Coded | |
Housing Material | PA 6 | |
Contact Plating | Nickel | |
Contact Material | CuSn | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 3 | ||
Mounting Type Cable Mount | ||
Connector Size M8 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
IP Rating IP65, IP67 | ||
Current Rating 4.0A | ||
Series SACC | ||
Body Orientation Straight | ||
Coding A | ||
Voltage Rating 60.0 V | ||
Mating Type A Coded | ||
Housing Material PA 6 | ||
Contact Plating Nickel | ||
Contact Material CuSn | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
M8 QUICKON connection
M8 Sensor/ actuator connector
Unshielded
With QUICKON connection
Metal knurl
Unshielded
With QUICKON connection
Metal knurl
Phoenix Contact Female Crimp Circular Connector, 24AWG, 0.25mm² CSA - SACC-M 8FS-3QO-0,5-M - 1441066
Quickly hook up a sensor to a cable with this circular connector from Phoenix Contact. The round structure means that multiple contacts are grouped together in a compact area, making the device a space-saving solution.
Assembly is quick, thanks to the unit's insulation displacement connection that removes the need to strip any wires. As an air-tight seal is made, your assembly is protected against air-borne contaminants and moisture. Its polyamide grip body withstands abrasion and wear for an extended service life, even when used frequently. A nitrile rubber gasket resists tearing to ensure a long-lasting and reliable seal.
Use a circular connector like this one in industrial process control applications. It's quick to assemble in the field and you can re-use it up to 100 times without any negative impact on its function.
Assembly is quick, thanks to the unit's insulation displacement connection that removes the need to strip any wires. As an air-tight seal is made, your assembly is protected against air-borne contaminants and moisture. Its polyamide grip body withstands abrasion and wear for an extended service life, even when used frequently. A nitrile rubber gasket resists tearing to ensure a long-lasting and reliable seal.
Use a circular connector like this one in industrial process control applications. It's quick to assemble in the field and you can re-use it up to 100 times without any negative impact on its function.
• Meets IEC 61076-2-104 safety standards for circular connectors used in industrial process measurement and control systems
• Broad operating temperature range of -40°C to +80°C, so it's suitable to use in extreme conditions
• Creates an IP67 rated seal, when correctly mated, that's dust-tight and protected against immersion in up to 1m of water
• Meets UL 94 H-B standards for devices that are self-extinguishing for safety
• Broad operating temperature range of -40°C to +80°C, so it's suitable to use in extreme conditions
• Creates an IP67 rated seal, when correctly mated, that's dust-tight and protected against immersion in up to 1m of water
• Meets UL 94 H-B standards for devices that are self-extinguishing for safety
