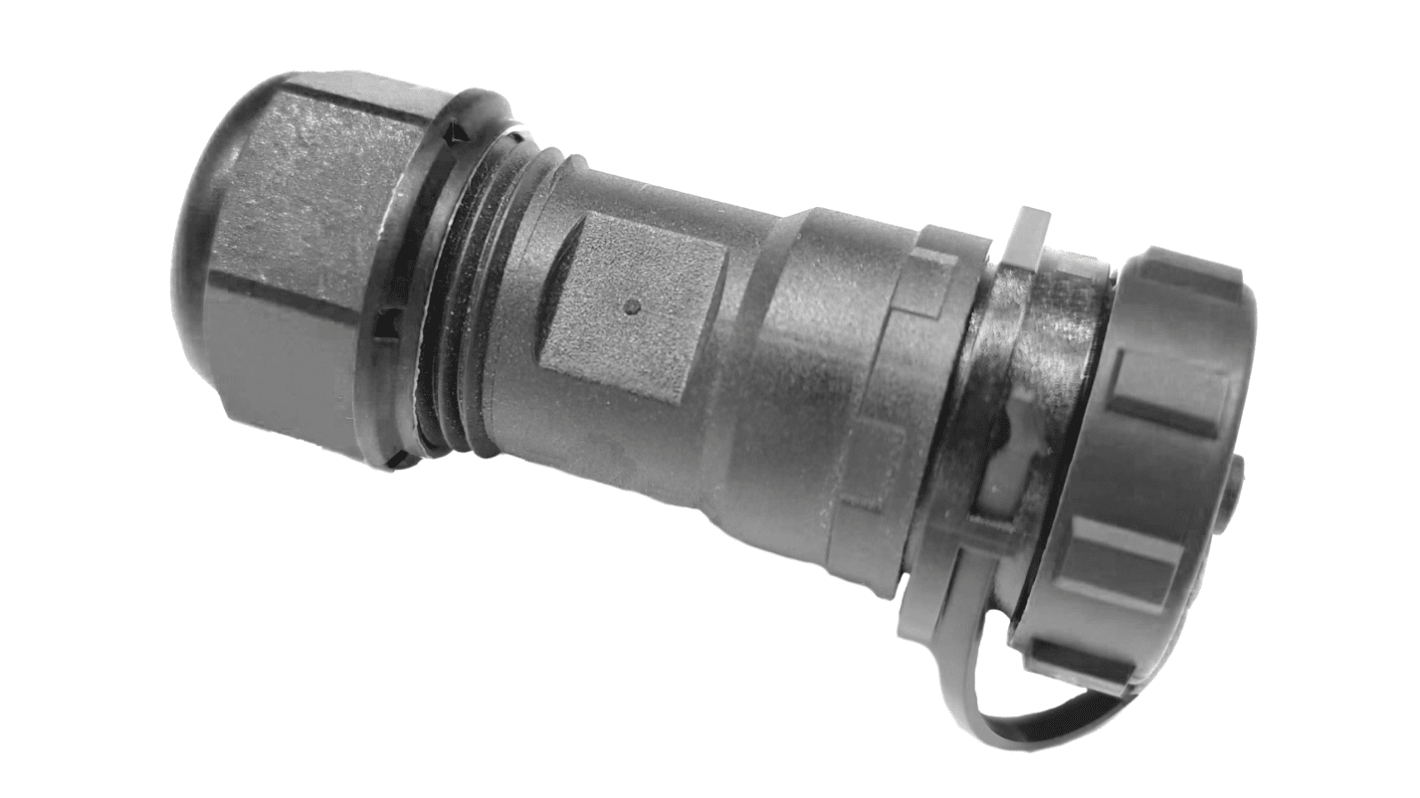

RS PRO Industrial Circular Connectors, 5 Contacts, In-line, SP13 Connector, Socket, Female, IP68
- RS Stock No.:
- 304-651
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£5.78
(exc. VAT)
£6.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 999,999,989 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £5.78 |
10 - 24 | £5.32 |
25 + | £4.80 |
*price indicative
- RS Stock No.:
- 304-651
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 5 | |
Mounting Type | In-line | |
Connector Size | SP13 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Solder | |
IP Rating | IP68 | |
Current Rating | 5A | |
Body Orientation | Straight | |
Voltage Rating | 180V ac | |
Shell Size | 13mm | |
Mating Type | Threaded Coupling | |
Housing Material | Nylon 66, PC | |
Pole Format | 5P | |
Strain Relief | No | |
Shielded/Unshielded | Unshielded | |
Contact Plating | Gold | |
Contact Material | Brass | |
Minimum Operating Temperature | -40°C | |
Outer Diameter | 19.5mm | |
Maximum Operating Temperature | 85°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 5 | ||
Mounting Type In-line | ||
Connector Size SP13 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP68 | ||
Current Rating 5A | ||
Body Orientation Straight | ||
Voltage Rating 180V ac | ||
Shell Size 13mm | ||
Mating Type Threaded Coupling | ||
Housing Material Nylon 66, PC | ||
Pole Format 5P | ||
Strain Relief No | ||
Shielded/Unshielded Unshielded | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
Outer Diameter 19.5mm | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
RS PRO Industrial Circular Connector, IP68, 5 Contacts
The RS PRO Industrial Circular Connector is an IP68-rated waterproof connector designed for environments requiring robust water resistance and compact design. Ideal for industrial applications, it offers flexibility with panel mount, cable mount, and in-line cable mount options, ensuring a secure and reliable connection.
Features and Benefits
IP68 Waterproof Rating: Ensures high resistance to water ingress, suitable for harsh environments.
Threaded Coupling: Provides a secure and stable connection, preventing accidental disconnection.
Multiple Mounting Options: Available in panel, cable, and in-line mount configurations for versatile installation.
Solder Termination: Allows for a reliable and strong electrical connection.
Compact Design: Space-saving solution with a shell size of 13 mm, ideal for confined spaces.
Durable Housing Material: Made from Nylon 66 and Polycarbonate for enhanced durability and longevity.
Gold-Plated Contacts: Ensures excellent conductivity and resistance to corrosion.
Threaded Coupling: Provides a secure and stable connection, preventing accidental disconnection.
Multiple Mounting Options: Available in panel, cable, and in-line mount configurations for versatile installation.
Solder Termination: Allows for a reliable and strong electrical connection.
Compact Design: Space-saving solution with a shell size of 13 mm, ideal for confined spaces.
Durable Housing Material: Made from Nylon 66 and Polycarbonate for enhanced durability and longevity.
Gold-Plated Contacts: Ensures excellent conductivity and resistance to corrosion.
Applications
Industrial automation
Marine equipment
Outdoor lighting systems
Telecommunications
Marine equipment
Outdoor lighting systems
Telecommunications
Additional Information
Contact Material: Brass
Operating Temperature Range: -40 °C to 85 °C
Current Rating: 5 A
Connector Size: SP13
Operating Temperature Range: -40 °C to 85 °C
Current Rating: 5 A
Connector Size: SP13
