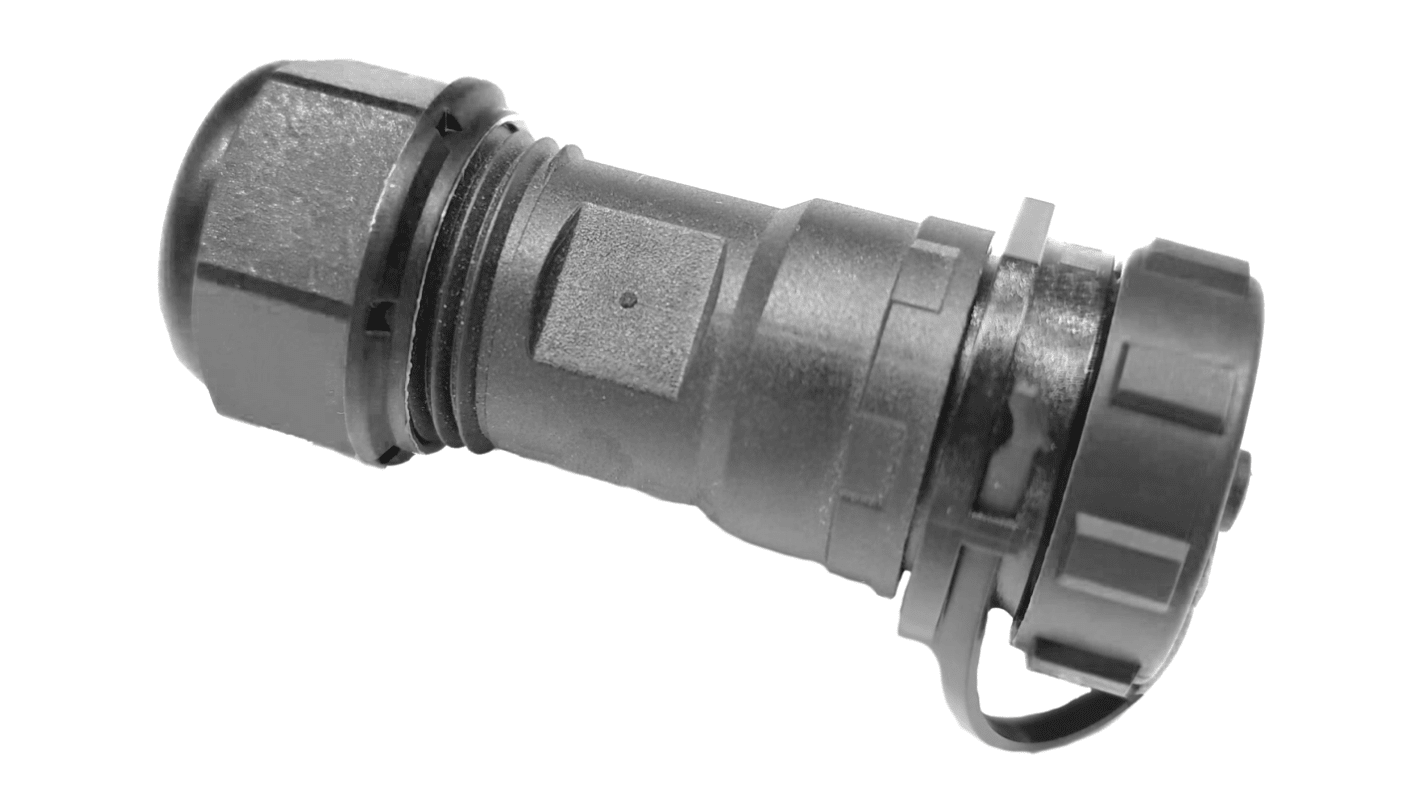

RS PRO Industrial Circular Connectors, 2 Contacts, In-line, SP13 Connector, Socket, Female, IP68
- RS Stock No.:
- 304-647
- Brand:
- RS PRO
Save 17% when you buy 25 units
Subtotal (1 unit)*
£5.05
(exc. VAT)
£6.06
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £5.05 |
10 - 24 | £4.65 |
25 + | £4.19 |
*price indicative
- RS Stock No.:
- 304-647
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 2 | |
Mounting Type | In-line | |
Connector Size | SP13 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Solder | |
IP Rating | IP68 | |
Current Rating | 13A | |
Body Orientation | Straight | |
Voltage Rating | 250V ac | |
Mating Type | Threaded Coupling | |
Shell Size | 13mm | |
Housing Material | Nylon 66, PC | |
Pole Format | 2P | |
Shielded/Unshielded | Unshielded | |
Strain Relief | No | |
Contact Plating | Gold | |
Contact Material | Brass | |
Outer Diameter | 19.5mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | 85°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 2 | ||
Mounting Type In-line | ||
Connector Size SP13 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP68 | ||
Current Rating 13A | ||
Body Orientation Straight | ||
Voltage Rating 250V ac | ||
Mating Type Threaded Coupling | ||
Shell Size 13mm | ||
Housing Material Nylon 66, PC | ||
Pole Format 2P | ||
Shielded/Unshielded Unshielded | ||
Strain Relief No | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Outer Diameter 19.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
RS PRO Industrial Circular Connector, 2 Contacts, IP68, Threaded Coupling
This RS PRO Industrial Circular Connector is an IP68 waterproof connector designed for applications requiring space-saving solutions with high water resistance. It is ideal for use in environments where durability and reliability are crucial, offering versatile mounting options such as panel mount, cable mount, and in-line cable mount.
Features and Benefits
IP68 Rating: Ensures complete protection against dust and water, suitable for harsh environments
Threaded Coupling: Provides secure and reliable connections, preventing accidental disconnection
Multiple Mounting Options: Available in panel, cable, and in-line mounts for flexible installation
Solder Termination: Allows for secure and stable electrical connections
Nylon 66 and Polycarbonate Housing: Offers robust protection and durability
Gold-Plated Contacts: Enhances conductivity and reduces corrosion
Compact Design: Space-saving with a shell size of 13 mm, ideal for tight spaces
Threaded Coupling: Provides secure and reliable connections, preventing accidental disconnection
Multiple Mounting Options: Available in panel, cable, and in-line mounts for flexible installation
Solder Termination: Allows for secure and stable electrical connections
Nylon 66 and Polycarbonate Housing: Offers robust protection and durability
Gold-Plated Contacts: Enhances conductivity and reduces corrosion
Compact Design: Space-saving with a shell size of 13 mm, ideal for tight spaces
Applications
Industrial machinery
Outdoor equipment
Marine applications
Automotive systems
Outdoor equipment
Marine applications
Automotive systems
Additional Information
Conforms to IP68 standards for water and dust resistance
Operating temperature range from -40 °C to 85 °C
Current rating of 13 A, suitable for various power applications
Operating temperature range from -40 °C to 85 °C
Current rating of 13 A, suitable for various power applications
