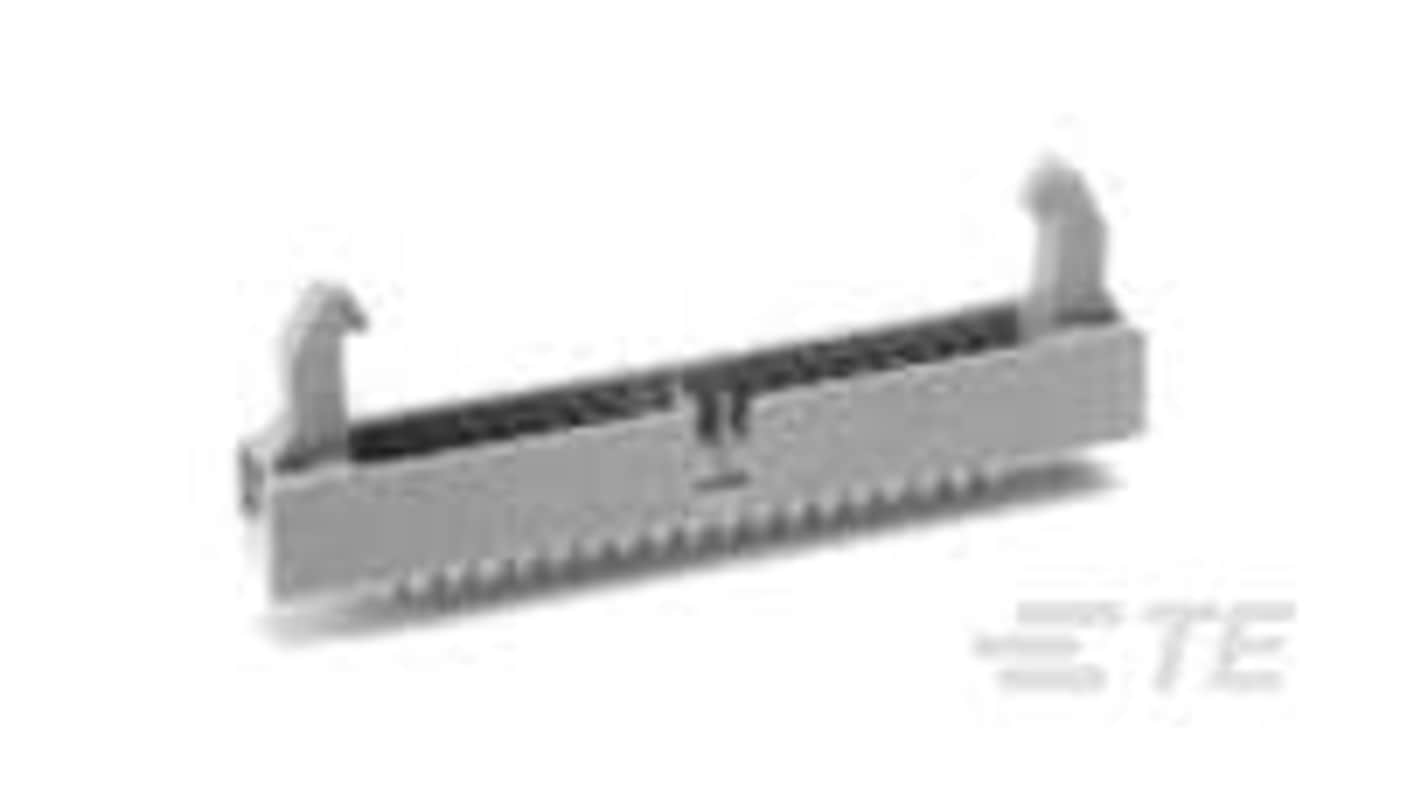

TE Connectivity 24-Way Connector Male for Board, 2 Row
- RS Stock No.:
- 479-256
- Distrelec Article No.:
- 304-63-939
- Mfr. Part No.:
- 1761685-8
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 479-256
- Distrelec Article No.:
- 304-63-939
- Mfr. Part No.:
- 1761685-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Connector | |
| Number of Contacts | 24 | |
| Number of Rows | 2 | |
| Current | 1A | |
| Pitch | 2.54mm | |
| Connector Gender | Male | |
| Mount Type | Board | |
| Voltage | 250V | |
| Orientation | Vertical | |
| Contact Plating | Gold | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 65°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Standards/Approvals | China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, 2016, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | |
| Contact Material | Phosphor Bronze | |
| Housing Material | Polybutylene Terephthalate | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Connector | ||
Number of Contacts 24 | ||
Number of Rows 2 | ||
Current 1A | ||
Pitch 2.54mm | ||
Connector Gender Male | ||
Mount Type Board | ||
Voltage 250V | ||
Orientation Vertical | ||
Contact Plating Gold | ||
Termination Type Solder | ||
Minimum Operating Temperature 65°C | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Standards/Approvals China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, 2016, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | ||
Contact Material Phosphor Bronze | ||
Housing Material Polybutylene Terephthalate | ||
- COO (Country of Origin):
- CN
The TE Connectivity wire-to-board connector is an indispensable component designed to facilitate seamless connectivity in a variety of applications. Its robust 24-position configuration ensures reliable performance, supporting efficient data transmission across numerous electronic assemblies. Crafted for vertical mounting, the connector is perfectly suited for through-hole soldering, making it an ideal choice for PCB integration. Engineered with a low-profile design, it not only saves space but also ensures ease of access in constrained environments. With a centreline pitch of 2.54 mm, this connector maintains high integrity connections while delivering significant durability and long-term performance in responsive applications.
Offers a compact solution for efficient signal connectivity
Designed for easy and reliable PCB integration
Daisy chain capability enhances connectivity options
Low profile design aids in space-constrained applications
Compatible with a wide range of ribbon cable assemblies
Mating retention feature ensures secure connections
Versatile operating temperature range accommodates varied environments
Robust materials contribute to overall longevity and reliability
