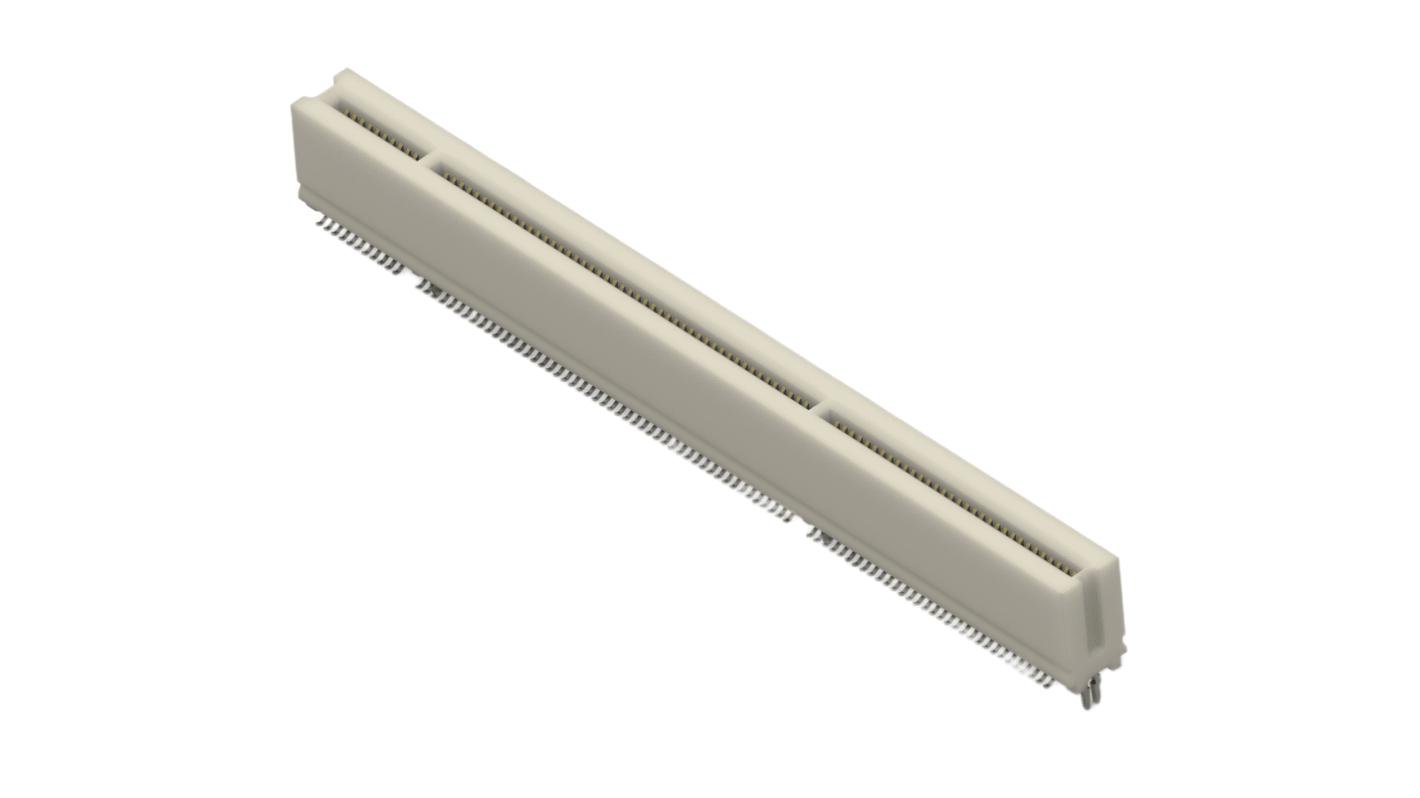

TE Connectivity 5145 Series Vertical Edge Connector, Board, 184-Contacts, 1.27 mm Pitch, Surface Mount

View all Edge Connectors

Subtotal (1 box of 32 units)*

£156.05

(exc. VAT)

£187.26

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£156.05£4.877

*price indicative

RS Stock No.:
505-885
Mfr. Part No.:
5145246-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Orientation

Vertical

Product Type

Edge Connector

Number of Contacts

184

Pitch

1.27mm

Mount Type

Board

Contact Plating

Gold

Contact Material

Phosphor Bronze

Card Thickness

1.57mm

Minimum Operating Temperature

-55°C

Termination Type

Surface Mount

Maximum Operating Temperature

85°C

Voltage

203 V

Housing Material

High Temperature Thermoplastic

Standards/Approvals

EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, 2016, China RoHS 2 Directive MIIT Order No 32, EU REACH Regulation (EC) No. 1907/2006

Series

5145

COO (Country of Origin):
CN
The TE Connectivity board-to-board connector is designed to meet the demanding requirements of PCI and PCI Express applications. Engineered with a precise 1.27 mm centreline, it ensures an efficient connection with 184 positions, perfect for high-density applications. The robust vertical orientation facilitates easy integration onto PCBs, while its natural finish ensures seamless compatibility with various board treatments. Supporting operating voltages of up to 203 VAC and engineered for an operating temperature range between -55 – 85 °C, this connector offers exceptional reliability in diverse environments. Its intricate design incorporates a high-temperature thermoplastic housing which enhances durability and ensures long-lasting performance. With its innovative retention features and exceptional build quality, this connector stands out in the realm of electronic components, promising performance and durability for critical applications.

Robust design accommodates high-density connections

Engineered for seamless integration into printed circuit boards

Supports high operating voltages for versatile application

Temperature resilient from -55 – 85 °C to suit various environments

Includes multiple PCB retention features to enhance stability

Constructed from high-temperature thermoplastic for improved longevity

Designed to meet stringent industry compliance for reliability
