Micro Motors DC Motor DC Motor, 19.8 W, 12V, 600 Nmm, 155rpm, 8 mm Shaft Diameter
- RS Stock No.:
- 288-7591
- Distrelec Article No.:
- 154-45-515
- Mfr. Part No.:
- E192.12.18
- Brand:
- Micro Motors
Subtotal (1 unit)*
£89.12
(exc. VAT)
£106.94
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 23 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £89.12 |
*price indicative
- RS Stock No.:
- 288-7591
- Distrelec Article No.:
- 154-45-515
- Mfr. Part No.:
- E192.12.18
- Brand:
- Micro Motors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Micro Motors | |
| Supply Voltage | 12V | |
| Product Type | DC Motor | |
| Sub Type | DC Motor | |
| Power Rating | 19.8W | |
| Output Speed | 155rpm | |
| Shaft Diameter | 8mm | |
| Maximum Output Torque | 600Nmm | |
| Mount Type | Flange | |
| Gearhead Type | Planetary | |
| Gear Ratio | 18:1 | |
| Current Rating | 1.65mA | |
| Shaft Length | 15mm | |
| Length | 123.5mm | |
| Width | 40.5mm | |
| Standards/Approvals | REACH, RoHS | |
| Series | E192 | |
| Core Construction | Iron Core | |
| Select all | ||
|---|---|---|
Brand Micro Motors | ||
Supply Voltage 12V | ||
Product Type DC Motor | ||
Sub Type DC Motor | ||
Power Rating 19.8W | ||
Output Speed 155rpm | ||
Shaft Diameter 8mm | ||
Maximum Output Torque 600Nmm | ||
Mount Type Flange | ||
Gearhead Type Planetary | ||
Gear Ratio 18:1 | ||
Current Rating 1.65mA | ||
Shaft Length 15mm | ||
Length 123.5mm | ||
Width 40.5mm | ||
Standards/Approvals REACH, RoHS | ||
Series E192 | ||
Core Construction Iron Core | ||
- COO (Country of Origin):
- IT

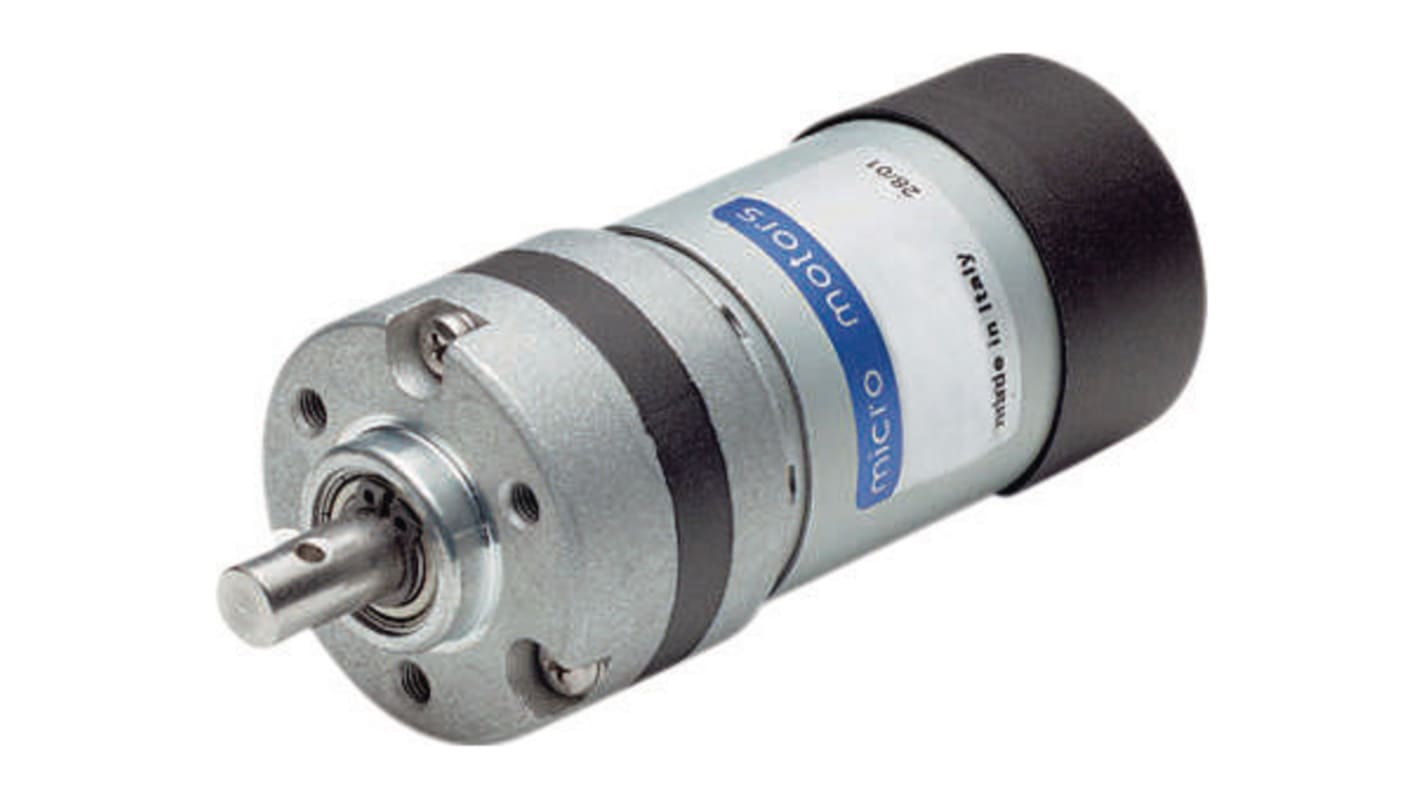

The DC motor features a shaft supported by two ball bearings for smooth operation. It's designed to be mountable in any position, offering versatility in installation. Additionally, the direction of rotation can be easily changed by reversing the polarity of the power supply, providing flexibility in its use.
Integrated EMC protection
Reduction ratio 181
