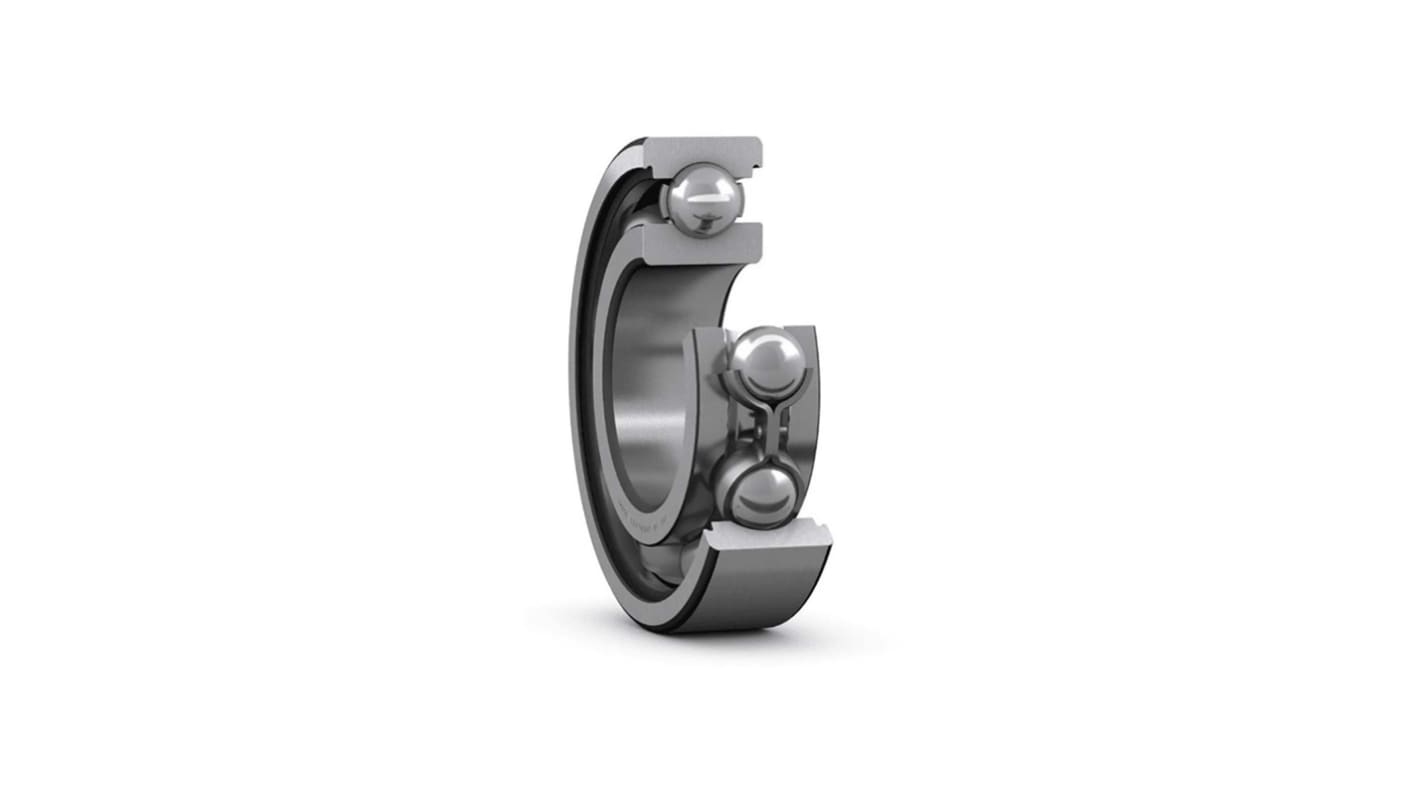

SKF 16017 Single Row Deep Groove Ball Bearing- Open Type 85mm I.D, 130mm O.D
- RS Stock No.:
- 207-9975
- Mfr. Part No.:
- 16017
- Brand:
- SKF
Subtotal (1 unit)*
£96.89
(exc. VAT)
£116.27
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £96.89 |
*price indicative
- RS Stock No.:
- 207-9975
- Mfr. Part No.:
- 16017
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 85mm | |
Outside Diameter | 130mm | |
Race Width | 14mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 33.5kN | |
Dynamic Load Rating | 35.8kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 16017 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 85mm | ||
Outside Diameter 130mm | ||
Race Width 14mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 33.5kN | ||
Dynamic Load Rating 35.8kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 16017 | ||
- COO (Country of Origin):
- IT
The SKF deep groove ball bearing having bore diameter 85mm and outside diameter 130mm. It is suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. The deep groove ball bearings are the most widely used bearing type.
Cylindrical type bore
Steel bearing
Steel bearing
