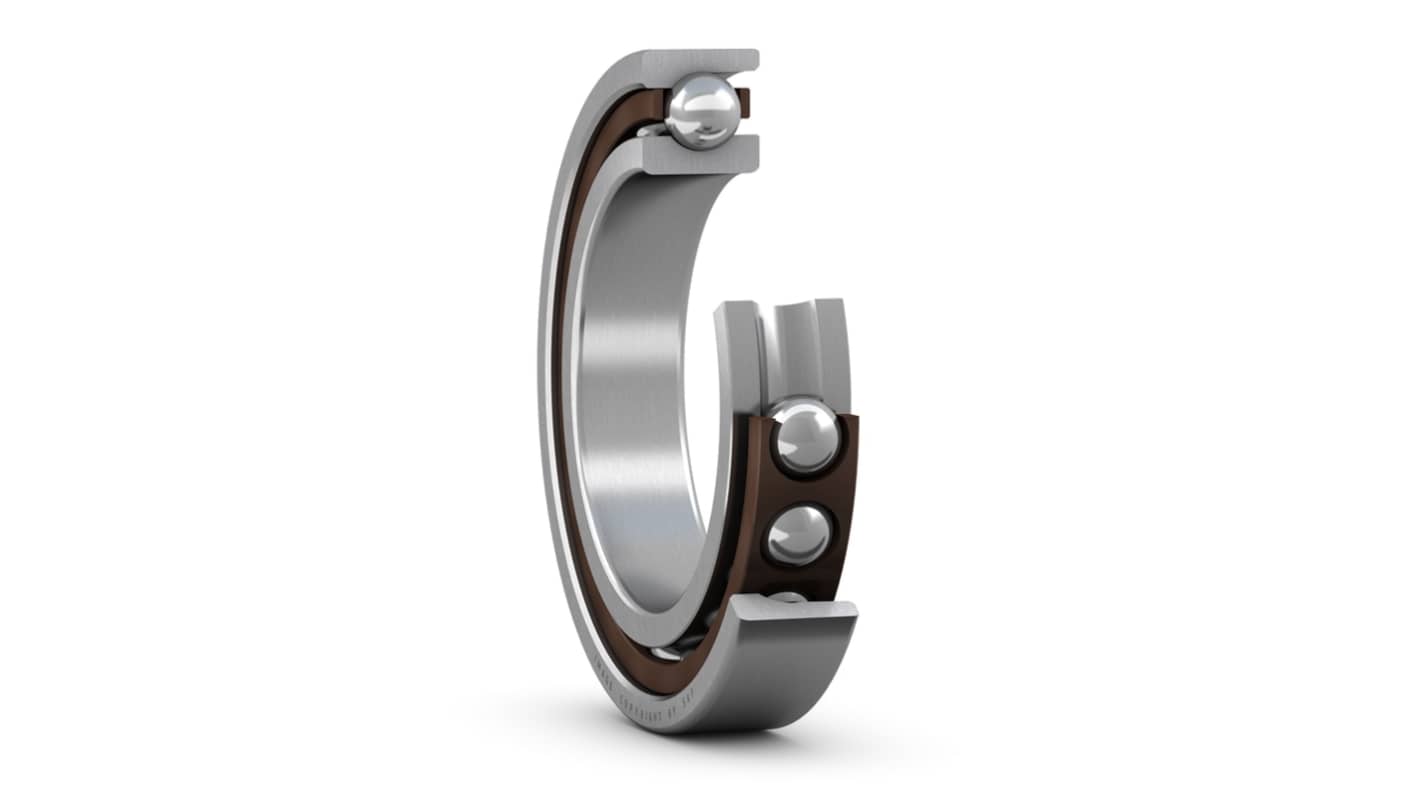

SKF 71913 CDGA/P4A 1 Row Angular Contact Ball Bearing - 65 mm ID, 90 mm OD 13 mm Race Width
- RS Stock No.:
- 462-624
- Mfr. Part No.:
- 71913 CDGA/P4A
- Brand:
- SKF
Subtotal (1 unit)*
£391.24
(exc. VAT)
£469.49
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £391.24 |
*price indicative
- RS Stock No.:
- 462-624
- Mfr. Part No.:
- 71913 CDGA/P4A
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 65 mm | |
| Product Type | Angular Contact Ball Bearing | |
| Outside Diameter | 90 mm | |
| Race Width | 13mm | |
| Race Material | Steel | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 17kN | |
| Contact Angle | 15° | |
| Dynamic Load Rating | 20.8kN | |
| Standards/Approvals | RoHS | |
| Series | 71913 | |
| Limiting Speed | 22000, 14000rpm | |
| Race Type | Grooved | |
| Bearing Type | Angular Contact | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 65 mm | ||
Product Type Angular Contact Ball Bearing | ||
Outside Diameter 90 mm | ||
Race Width 13mm | ||
Race Material Steel | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 17kN | ||
Contact Angle 15° | ||
Dynamic Load Rating 20.8kN | ||
Standards/Approvals RoHS | ||
Series 71913 | ||
Limiting Speed 22000, 14000rpm | ||
Race Type Grooved | ||
Bearing Type Angular Contact | ||
- COO (Country of Origin):
- IT
Gavin
The SKF Angular Contact Ball Bearing from SKF is engineered for exceptional performance and reliability in demanding applications. This bearing is designed to accommodate both radial and axial loads in a single direction, making it an ideal solution for systems requiring high accuracy under heavy load. With its universally matchable feature, it allows for flexible arrangements without the need for shims, delivering effective load distribution. The bearing operates efficiently at higher speeds and maintains performance within low to moderate temperature ranges. It’s an excellent choice for industries that prioritise precision and durability.
High running accuracy ensures reliable operation even under challenging conditions
Engineered for heavy load capacity enhancing durability and lifespan
Universally matchable design simplifies assembly in various configurations
Constructed with a one piece inner and outer ring for improved structural integrity
Incorporates normal contact design for effective force distribution
Optimised for speed allowing for enhanced machine performance
