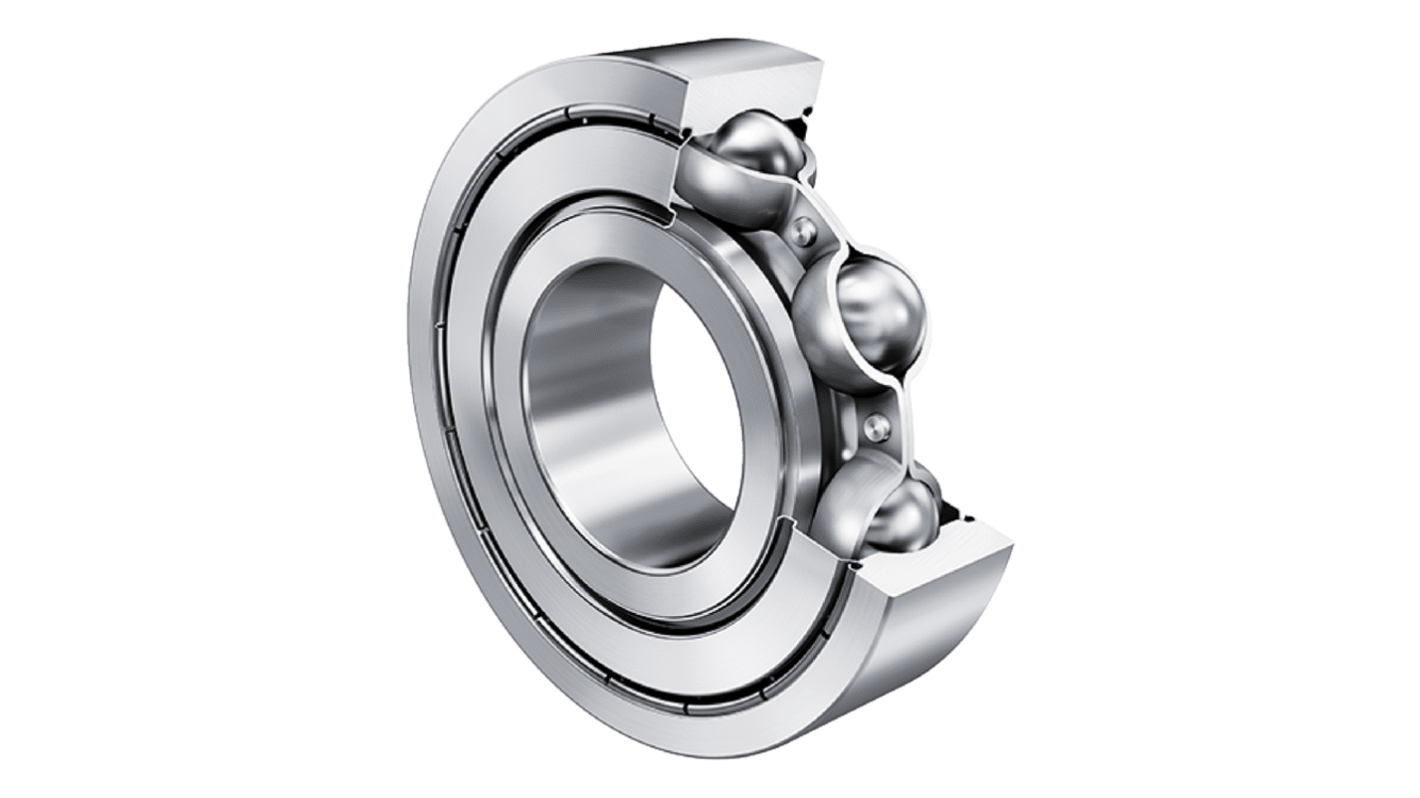

FAG 6210-C-Z 1 Row Deep Groove Ball Bearing - 50 mm ID, 90 mm OD
- RS Stock No.:
- 310-970
- Mfr. Part No.:
- 6210-C-Z
- Brand:
- FAG
Subtotal (1 unit)*
£29.37
(exc. VAT)
£35.24
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.37 |
*price indicative
- RS Stock No.:
- 310-970
- Mfr. Part No.:
- 6210-C-Z
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 50 mm | |
| Outside Diameter | 90 mm | |
| Race Width | 20mm | |
| Cage Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 23200N | |
| Dynamic Load Rating | 40000N | |
| Standards/Approvals | No | |
| Bore Type | Cylindrical | |
| Limiting Speed | 11700rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 50 mm | ||
Outside Diameter 90 mm | ||
Race Width 20mm | ||
Cage Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 23200N | ||
Dynamic Load Rating 40000N | ||
Standards/Approvals No | ||
Bore Type Cylindrical | ||
Limiting Speed 11700rpm | ||
Bearing Type Deep Groove | ||
- COO (Country of Origin):
- PT
The FAG Deep Groove Ball Bearing represents a pinnacle of engineering, meticulously designed to cater to the demands of diverse applications. With its robust single row configuration, it ensures reliable performance while accommodating radial loads with aplomb. The innovative internal design, coupled with non contact shielding on one side, provides an ideal balance between efficiency and longevity.
Optimised for high radial load capacities enhancing machine efficiency
Designed with a non contact shield to prevent contamination while reducing friction
Steel sheet metal cage which ensuring robust structural integrity
Streamlined design enables easy integration into existing setups
Radial internal clearance tailored for normal operational requirements
