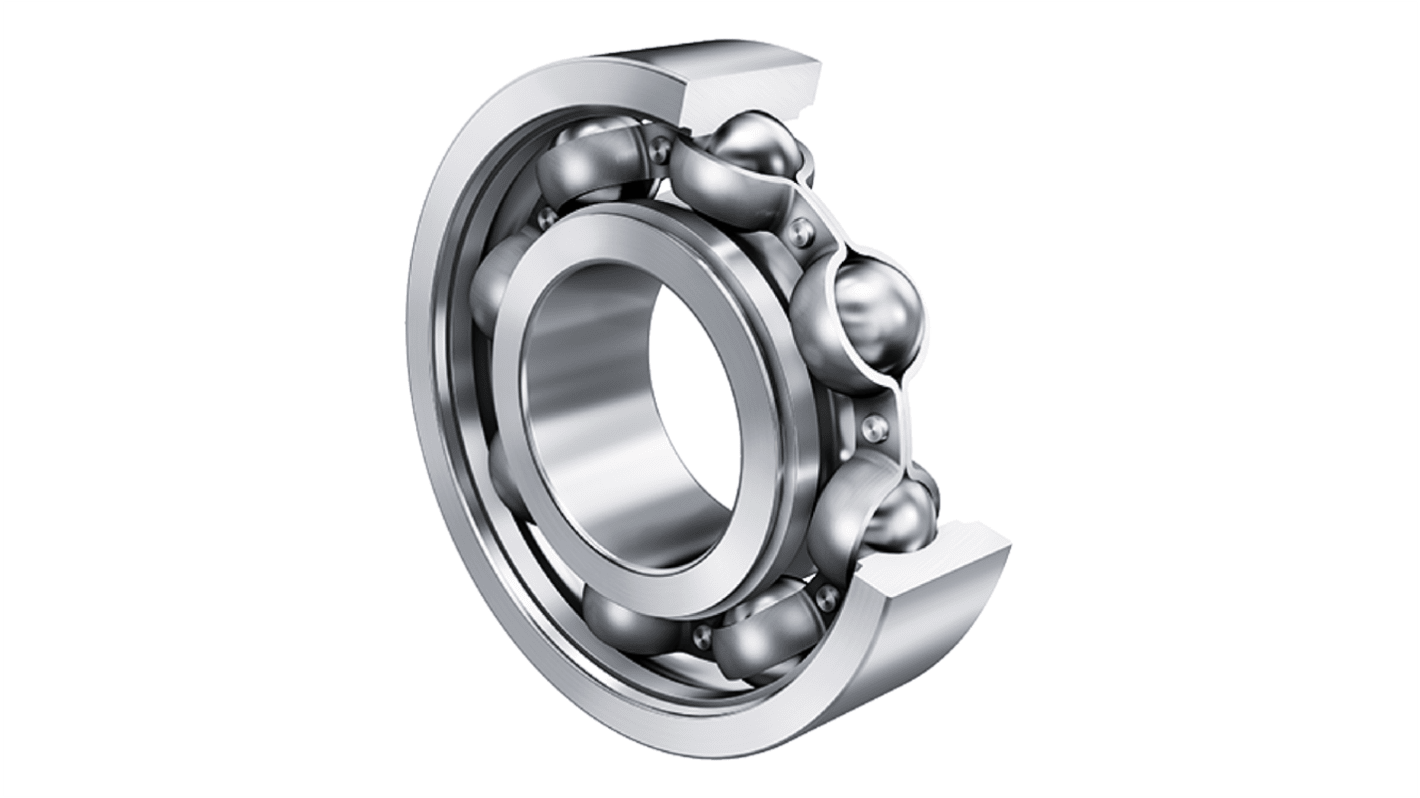

FAG 6210-C-C4 1 Row Deep Groove Ball Bearing - 50 mm ID, 90 mm OD
- RS Stock No.:
- 312-846
- Mfr. Part No.:
- 6210-C-C4
- Brand:
- FAG
Subtotal (1 unit)*
£27.07
(exc. VAT)
£32.48
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.07 |
*price indicative
- RS Stock No.:
- 312-846
- Mfr. Part No.:
- 6210-C-C4
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 50mm | |
| Outside Diameter | 90mm | |
| Race Width | 20mm | |
| Ball Material | Steel | |
| Cage Material | Steel Sheet Metal | |
| Race Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 23200N | |
| Internal Clearance | C4 | |
| Dynamic Load Rating | 40000N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | DIN 625-1 | |
| Series | 62 | |
| Limiting Speed | 11700rpm | |
| Flange Outside Diameter | 90mm | |
| Race Type | Deep Grooved | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 50mm | ||
Outside Diameter 90mm | ||
Race Width 20mm | ||
Ball Material Steel | ||
Cage Material Steel Sheet Metal | ||
Race Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 23200N | ||
Internal Clearance C4 | ||
Dynamic Load Rating 40000N | ||
Bore Type Cylindrical | ||
Standards/Approvals DIN 625-1 | ||
Series 62 | ||
Limiting Speed 11700rpm | ||
Flange Outside Diameter 90mm | ||
Race Type Deep Grooved | ||
Bearing Type Single Row Deep Groove Ball | ||
The FAG Deep Groove Ball Bearing represents a robust yet versatile solution for various mechanical applications. With its optimised design, this bearing excels in providing stability under both radial and axial loads. The internal design has been meticulously refined in the Generation C iteration, emphasising steel sheet metal cages that enhance longevity and reliability. Additionally, its capacity for external stabilisation up to 120°C allows it to thrive in demanding environments.
Optimised design for enhanced stability and longevity
Steel sheet metal cage ensures durability in rigorous conditions
Suitable for a wide range of industrial and automotive applications
Capable of handling high radial and axial loads efficiently
Designed for low maintenance operating without grease
Generational advancements lead to improved internal design
