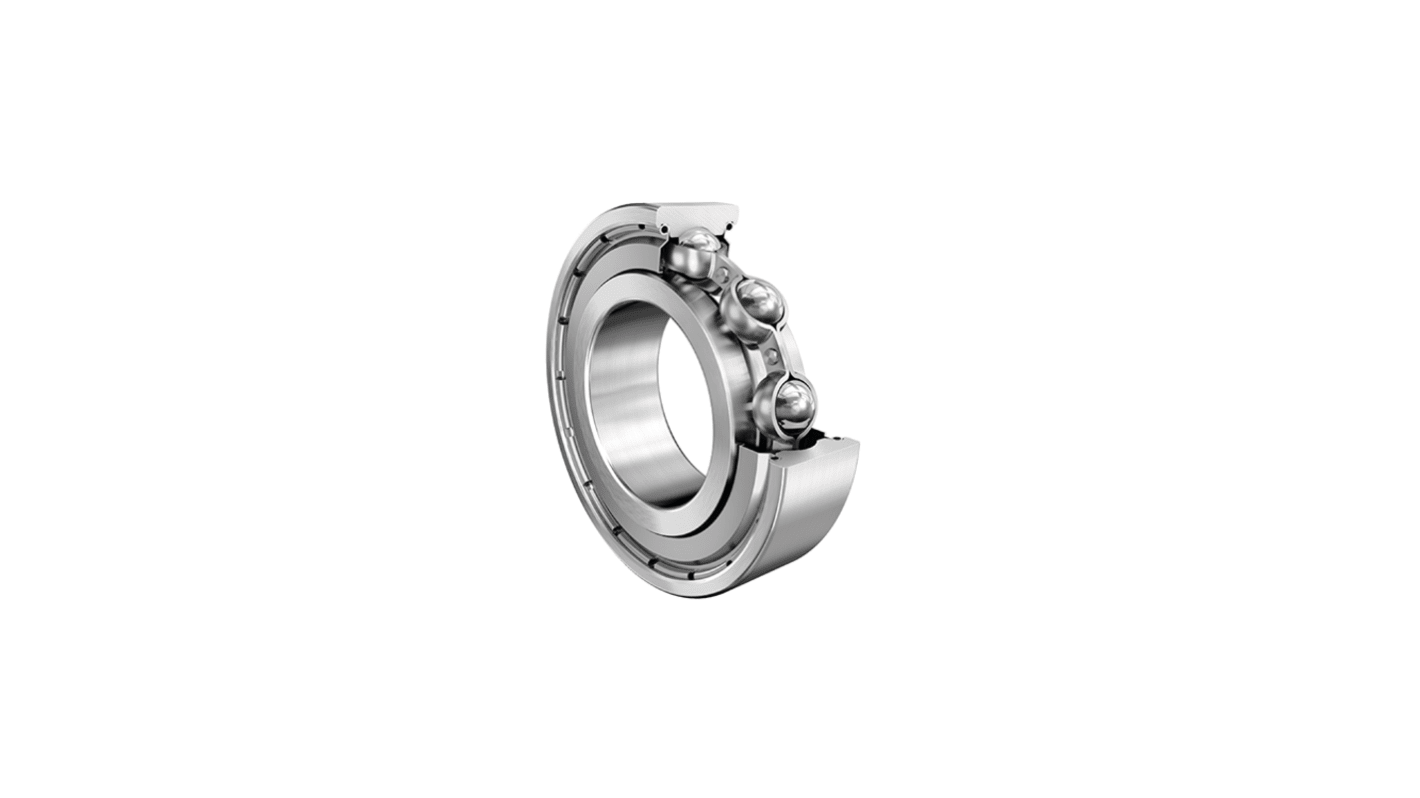

FAG 6308-Z 1 Row Deep Groove Ball Bearing - 40 mm ID, 90 mm OD
- RS Stock No.:
- 312-206
- Mfr. Part No.:
- 6308-Z
- Brand:
- FAG
Subtotal (1 unit)*
£31.30
(exc. VAT)
£37.56
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
- Plus 10 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £31.30 |
*price indicative
- RS Stock No.:
- 312-206
- Mfr. Part No.:
- 6308-Z
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 40mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 90mm | |
| Race Width | 23mm | |
| Ball Material | Steel | |
| Race Material | Steel | |
| Cage Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Internal Clearance | Normal | |
| Static Load Rating | 25000N | |
| Dynamic Load Rating | 45500N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | DIN 625-1 | |
| Series | 63 | |
| Limiting Speed | 10800rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Deep Grooved | |
| Flange Outside Diameter | 90mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 40mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 90mm | ||
Race Width 23mm | ||
Ball Material Steel | ||
Race Material Steel | ||
Cage Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Internal Clearance Normal | ||
Static Load Rating 25000N | ||
Dynamic Load Rating 45500N | ||
Bore Type Cylindrical | ||
Standards/Approvals DIN 625-1 | ||
Series 63 | ||
Limiting Speed 10800rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Deep Grooved | ||
Flange Outside Diameter 90mm | ||
The FAG Deep Groove Ball Bearing is engineered to enhance operational efficiency in various applications. With its advanced design, it caters to both radial and axial loads, making it ideal for a wide array of industrial settings. The non-contact shield on one side reduces friction, ensuring longevity and optimal performance while keeping maintenance to a minimum. Its robust construction features high-grade steel that contributes to stability under thermal stress, making it reliable in extreme conditions.
Constructed for low maintenance enhancing operational uptime
Lightweight design aids in reduced overall system weight
Temperature resilient suitable for a wide range of environments
