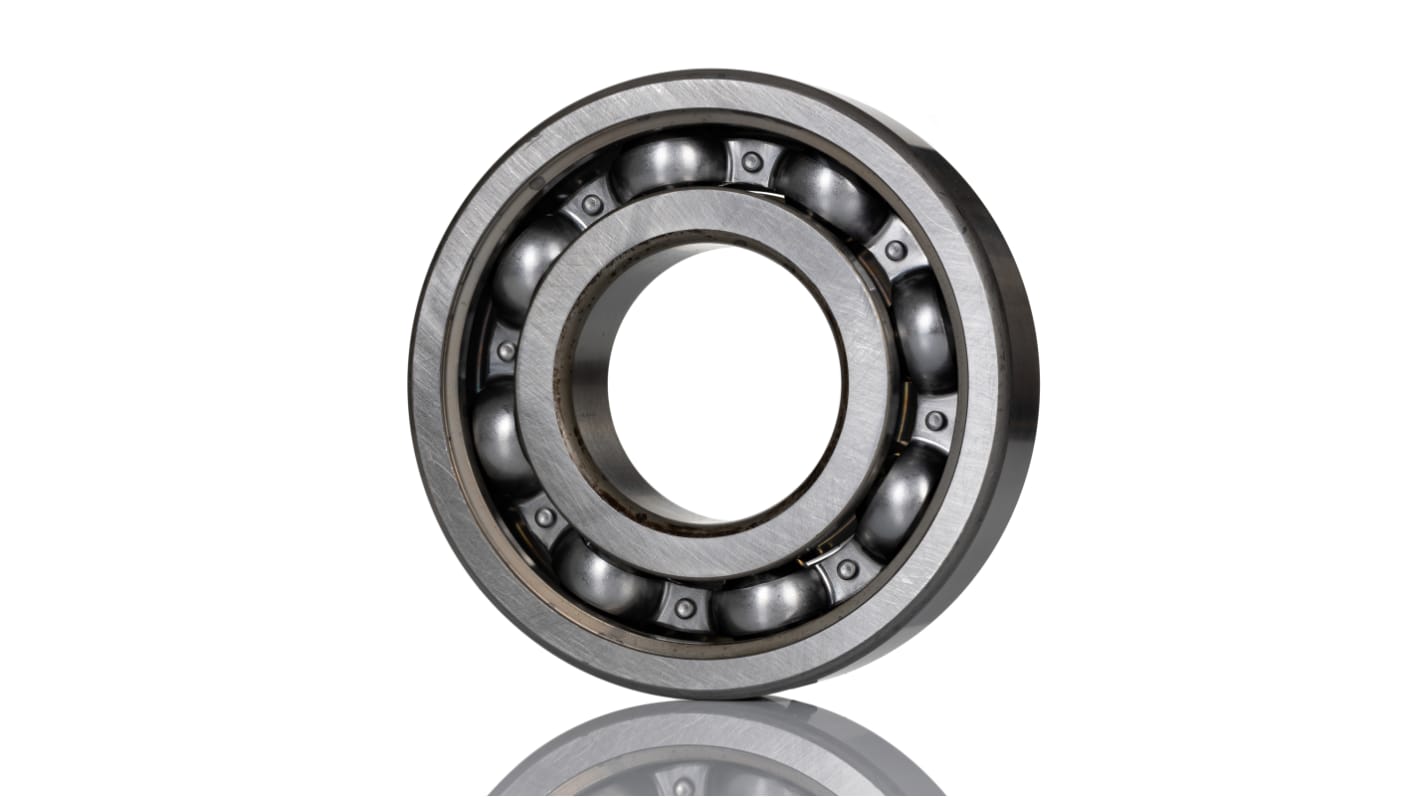

SKF 6308-Z Single Row Deep Groove Ball Bearing- One Side Shielded 40mm I.D, 90mm O.D
- RS Stock No.:
- 207-8277
- Mfr. Part No.:
- 6308-Z
- Brand:
- SKF
Subtotal (1 unit)*
£46.45
(exc. VAT)
£55.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3 unit(s) shipping from 20 October 2025
- Plus 999,999,996 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £46.45 |
*price indicative
- RS Stock No.:
- 207-8277
- Mfr. Part No.:
- 6308-Z
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 40mm | |
Outside Diameter | 90mm | |
Race Width | 23mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | One Side Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 24kN | |
Dynamic Load Rating | 42.3kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Model Number p | 6308Z | |
Partial Bearing Code | 6308 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 40mm | ||
Outside Diameter 90mm | ||
Race Width 23mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement One Side Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 24kN | ||
Dynamic Load Rating 42.3kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Model Number p 6308Z | ||
Partial Bearing Code 6308 | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, Deep-Groove Bearing Type, One-Sided Shielding, 40mm ID, 90mm OD - 6308-Z
Want to put a stop to noise and friction? Trust this ball bearing from SKF to handle moving parts of your equipment. It's a deep-groove type that handles both axial and radial loads, so it's a versatile workmate. By rotating along your machine's shaft, it distributes the weight to improve performance. The bearing's 24kN static load rating and 42.3kN dynamic load rating make it the right choice for heavy-duty applications. Its stainless steel body withstands corrosion and impact without breaking a sweat, so you can rely on it for long-term performance, even in rugged settings.
Features & Benefits
• Inside diameter of 40mm makes it suitable for medium-sized shafts
• Reference speed of 17,000r/min and limiting speed of 11,000r/min for use in fast-paced machinery
• One shielded end prevents dust and contaminants from impacting performance
• SKF Explorer performance class means it takes the strain of high speeds and heavy loads without suffering damage
• Reference speed of 17,000r/min and limiting speed of 11,000r/min for use in fast-paced machinery
• One shielded end prevents dust and contaminants from impacting performance
• SKF Explorer performance class means it takes the strain of high speeds and heavy loads without suffering damage
Applications
• Automotive industry
• Agricultural equipment
• Printing and binding machinery
• Agricultural equipment
• Printing and binding machinery
What's the temperature tolerance of this ball bearing?
All SKF deep-groove ball bearings are heat-stabilised up to at least +120°C, so you can rest assured this unit will work reliably and retain its rigidity in demanding conditions.
