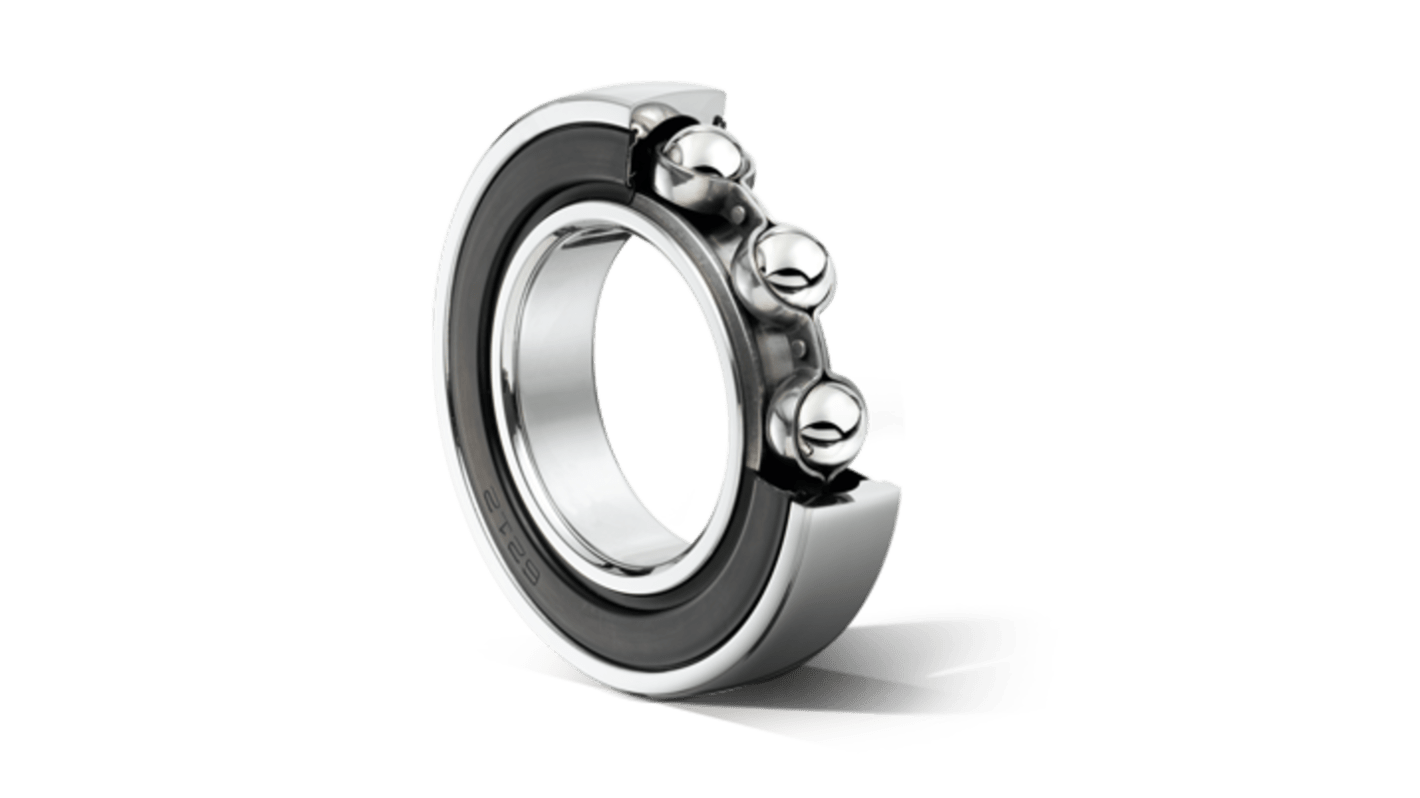

SNR 6204EEC3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 20mm I.D, 47mm O.D
- RS Stock No.:
- 146-245
- Mfr. Part No.:
- 6204EEC3
- Brand:
- SNR
Subtotal (1 unit)*
£5.25
(exc. VAT)
£6.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship from another location
- Plus 999,999,979 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £5.25 |
*price indicative
- RS Stock No.:
- 146-245
- Mfr. Part No.:
- 6204EEC3
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SNR | |
Inside Diameter | 20mm | |
Outside Diameter | 47mm | |
Race Width | 14mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Select all | ||
---|---|---|
Brand SNR | ||
Inside Diameter 20mm | ||
Outside Diameter 47mm | ||
Race Width 14mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
- COO (Country of Origin):
- CN
The SNR Single Row Deep Groove Ball Bearings deliver strong performance with a dynamic load rating of 14.4 kN and a static load rating of 6.7 kN. They feature a fatigue limit load of 0.3 kN and a coefficient of 12.6, ensuring efficient and reliable operation under varying conditions. With a mechanical limit speed of 11,000 rpm, these bearings are well-suited for high-speed applications.
2.595 Hz Characteristic outer ring frequency
4.405 Hz Characteristic inner ring frequency
0.371 Hz Characteristic cage frequency
3.611 Hz Characteristic rolling element frequency
4.405 Hz Characteristic inner ring frequency
0.371 Hz Characteristic cage frequency
3.611 Hz Characteristic rolling element frequency
