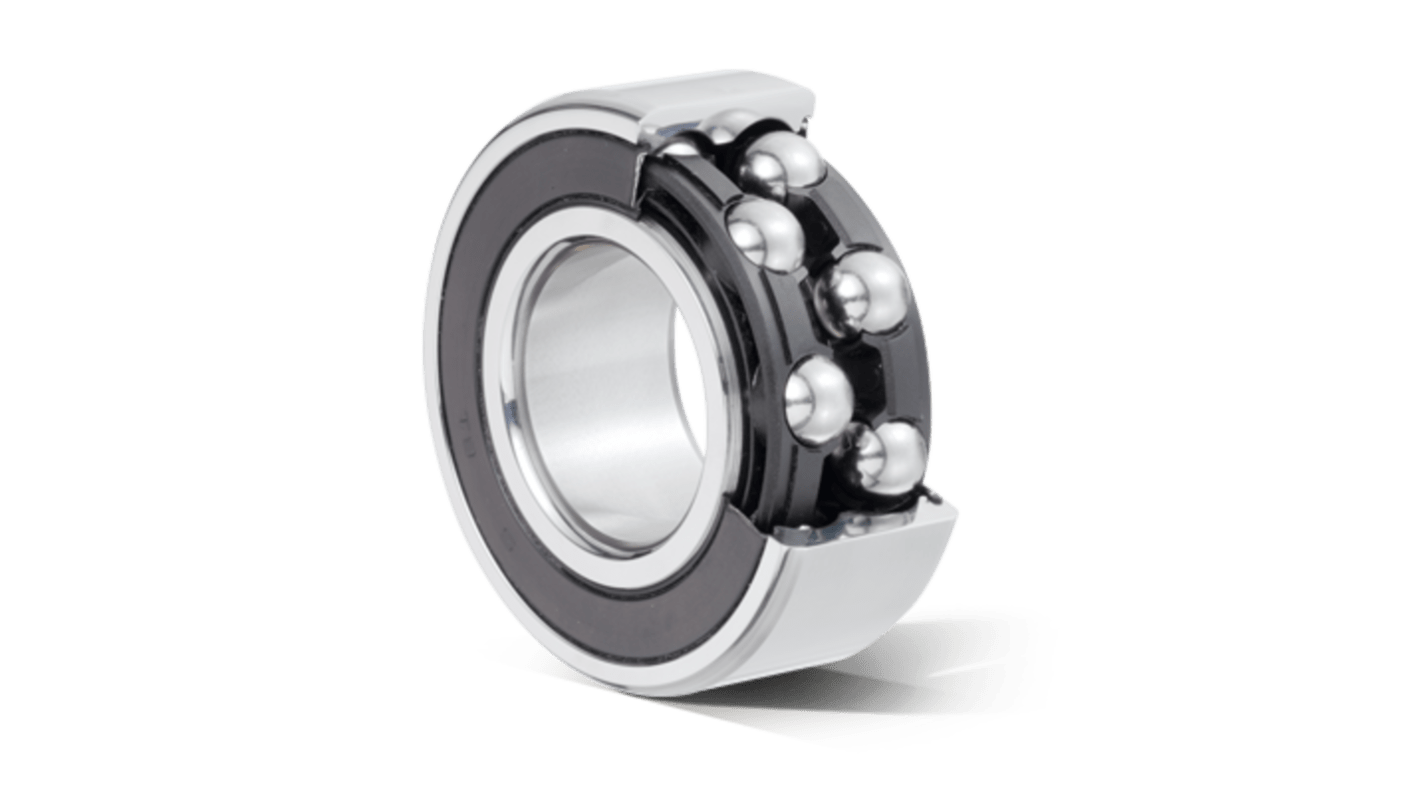

SNR 5204EEG15 2 Row Ball Bearing - 20 mm ID, 47 mm OD 20.6 mm Race Width
- RS Stock No.:
- 146-164
- Mfr. Part No.:
- 5204EEG15
- Brand:
- SNR
Subtotal (1 unit)*
£37.70
(exc. VAT)
£45.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £37.70 |
*price indicative
- RS Stock No.:
- 146-164
- Mfr. Part No.:
- 5204EEG15
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Inside Diameter | 20 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 47 mm | |
| Race Width | 20.6mm | |
| Number of Rows | 2 | |
| Internal Clearance | CN | |
| Static Load Rating | 12.5kN | |
| Contact Angle | 25° | |
| Dynamic Load Rating | 19.1kN | |
| Standards/Approvals | No | |
| Limiting Speed | 10000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Inside Diameter 20 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 47 mm | ||
Race Width 20.6mm | ||
Number of Rows 2 | ||
Internal Clearance CN | ||
Static Load Rating 12.5kN | ||
Contact Angle 25° | ||
Dynamic Load Rating 19.1kN | ||
Standards/Approvals No | ||
Limiting Speed 10000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- DE
The SNR Double Row Angular Contact Ball Bearings provide outstanding performance, featuring a dynamic load rating of 19.1 kN and a static load rating of 12.5 kN. With a fatigue limit load of 0.81 kN and a coefficient of 13.7, they are designed for high efficiency under various loads. The mechanical limit speed of 10,000 rpm makes these bearings ideal for demanding applications.
3.154 Hz Characteristic outer ring frequency
4.846 Hz Characteristic inner ring frequency
0.394 Hz Characteristic cage frequency
4.091 Hz Characteristic rolling element frequency
