SKF 3204A Double Row Angular Contact Ball Bearing- Open Type 20mm I.D, 47mm O.D
- RS Stock No.:
- 285-1658
- Mfr. Part No.:
- 3204A
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£52.65
(exc. VAT)
£63.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £52.65 |
5 - 9 | £51.18 |
10 - 24 | £49.80 |
25 + | £48.49 |
*price indicative
- RS Stock No.:
- 285-1658
- Mfr. Part No.:
- 3204A
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 47mm | |
Race Width | 20.6mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 2 | |
Static Load Rating | 12.9kN | |
Dynamic Load Rating | 20.4kN | |
Clearance Code | CN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Model Number p | 3204 | |
Race Type | Plain | |
Partial Bearing Code | 3204 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 47mm | ||
Race Width 20.6mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 2 | ||
Static Load Rating 12.9kN | ||
Dynamic Load Rating 20.4kN | ||
Clearance Code CN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Model Number p 3204 | ||
Race Type Plain | ||
Partial Bearing Code 3204 | ||
RoHS Status: Exempt

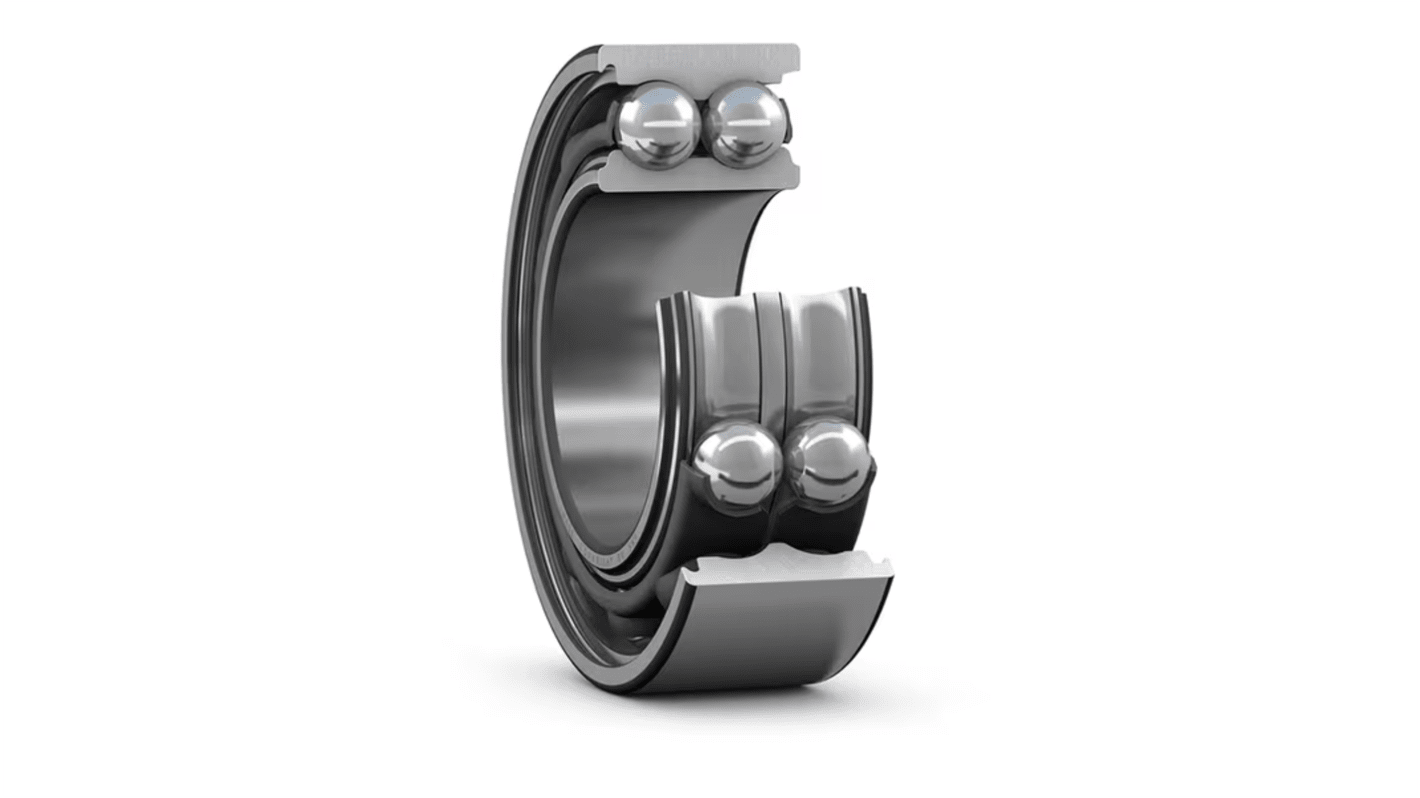

SKF Ball Bearing, 20mm Inside Diameter, 47mm Outside Diameter - 3204A
This ball bearing is a double row angular contact ball bearing designed to accommodate combined loads and provide stability in various industrial applications. The product features an inside diameter of 20mm, an outside diameter of 47mm, and a race width of 20.6mm, making it suitable for precision needs in both electrical and mechanical sectors. Crafted from steel, this open type bearing demonstrates impressive load ratings, ensuring durability and performance in demanding conditions.
Features & Benefits
• Capable of handling dynamic loads up to 20.4 kN
• Offers a static load rating of 12.9 kN for reliable performance
• Parallel bore type ensures ease of installation and alignment
• Unsealed design facilitates reduced friction and heat generation
• Steel construction withstands wear for longevity in operation
• Suitable for high-speed applications with a reference speed of 14,000 r/min
• Offers a static load rating of 12.9 kN for reliable performance
• Parallel bore type ensures ease of installation and alignment
• Unsealed design facilitates reduced friction and heat generation
• Steel construction withstands wear for longevity in operation
• Suitable for high-speed applications with a reference speed of 14,000 r/min
Applications
• Utilised in automation systems for precise movement control
• Applied in electric motors for enhanced efficiency
• Suitable for mechanical setups requiring robust support
• Ideal for equipment in high-speed machinery
• Applied in electric motors for enhanced efficiency
• Suitable for mechanical setups requiring robust support
• Ideal for equipment in high-speed machinery
What types of loads can the bearing support effectively?
This bearing efficiently supports both radial and axial loads due to its double row angular contact design, ensuring stability under varying operational conditions.
How does the open type design benefit performance?
An open type design leads to better heat dissipation and reduced friction, allowing for smoother operation in high-speed applications.
What environments are suitable for this steel bearing?
The robust steel construction makes it ideal for use in environments where durability is critical, such as manufacturing and processing facilities.
Can this bearing be used in high-speed applications?
Yes, it is designed to perform well at speeds up to 14,000 r/min, making it suitable for high-speed machinery.
What should be considered when installing the bearing?
Proper alignment and installation are crucial to maximise performance and minimise wear, ensuring the bearing operates within its specified load ratings.
