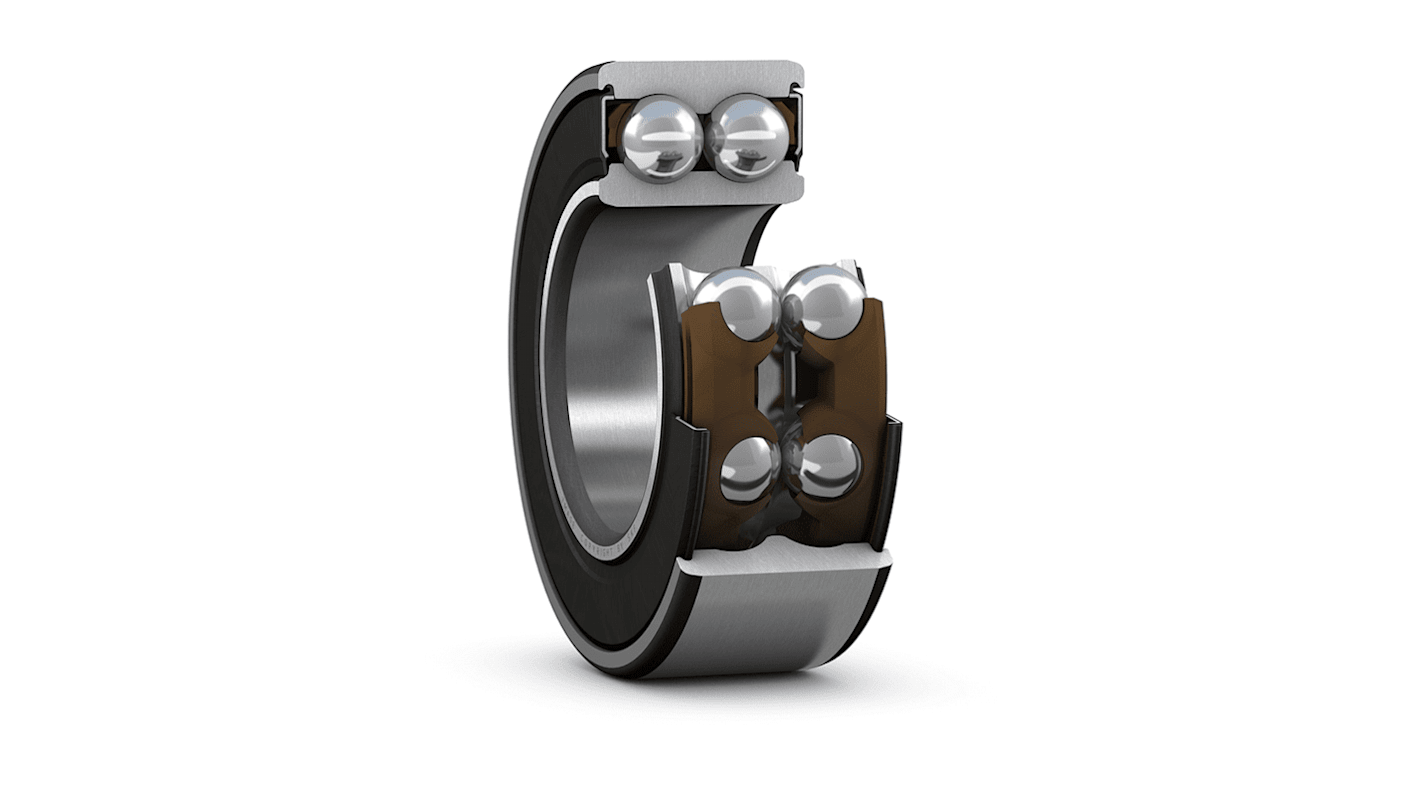

SKF 3204 A-2Z/C3MT33 Double Row Angular Contact Ball Bearing- Both Sides Shielded 20mm I.D, 47mm O.D
- RS Stock No.:
- 207-9851
- Mfr. Part No.:
- 3204 A-2Z/C3MT33
- Brand:
- SKF
Subtotal (1 unit)*
£62.92
(exc. VAT)
£75.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 46 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £62.92 |
*price indicative
- RS Stock No.:
- 207-9851
- Mfr. Part No.:
- 3204 A-2Z/C3MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 20mm | |
| Outside Diameter | 47mm | |
| Race Width | 20.6mm | |
| Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
| Sealing Arrangement | Both Sides Shielded | |
| Bearing Clearance | C3 | |
| Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| Number of Rows | 2 | |
| Static Load Rating | 12.9kN | |
| Dynamic Load Rating | 20.4kN | |
| Bore Type | Parallel | |
| Bearing Series | 2 Light | |
| Partial Bearing Code | 3204 | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 47mm | ||
Race Width 20.6mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 2 | ||
Static Load Rating 12.9kN | ||
Dynamic Load Rating 20.4kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 3204 | ||
The SKF angular contact ball bearings with bore diameter 20mm and outside diameter 47mm having inner and outer ring raceways which is displaced relative to each other in the direction of the bearing axis this means that these bearings are designed to accommodate combined loads and simultaneously acts radial and axial loads. The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane along which the combined load is transmitted from one raceway to another and a line perpendicular to the bearing axis.
Cylindrical type bore
Steel bearing
Steel bearing
