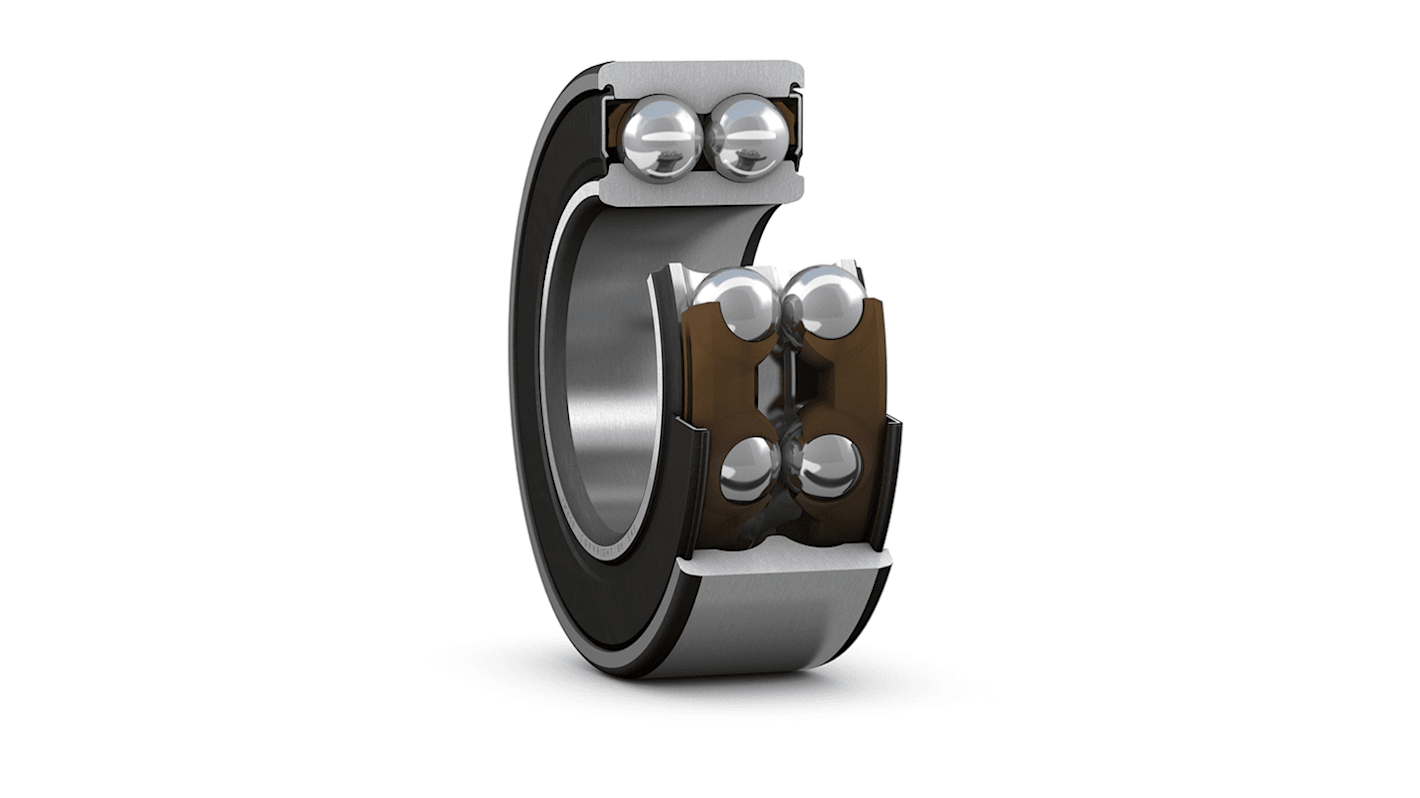

SKF 3204 A-2Z/MT33 2 Row Ball Bearing - 20 mm ID, 47 mm OD 20.6 mm Race Width
- RS Stock No.:
- 207-9852
- Mfr. Part No.:
- 3204 A-2Z/MT33
- Brand:
- SKF
Subtotal (1 unit)*
£62.38
(exc. VAT)
£74.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 27 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £62.38 |
*price indicative
- RS Stock No.:
- 207-9852
- Mfr. Part No.:
- 3204 A-2Z/MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 20mm | |
| Outside Diameter | 47mm | |
| Race Width | 20.6mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Shielded | |
| Number of Rows | 2 | |
| Static Load Rating | 12.9kN | |
| Contact Angle | 30° | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 20.4kN | |
| Series | 2 Light | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 14000rpm | |
| Bearing Type | Double Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 20mm | ||
Outside Diameter 47mm | ||
Race Width 20.6mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Shielded | ||
Number of Rows 2 | ||
Static Load Rating 12.9kN | ||
Contact Angle 30° | ||
Internal Clearance CN | ||
Dynamic Load Rating 20.4kN | ||
Series 2 Light | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 14000rpm | ||
Bearing Type Double Row Angular Contact Ball | ||
SKF Ball Bearing, 20mm Inside Diameter, 47mm Outside Diameter - 3204 A-2Z/MT33
This is a double row angular contact ball bearing designed for high performance in various mechanical applications. The 20 mm inside diameter and 47 mm outside diameter make it suitable for Compact setups, while the 20.6 mm race width ensures stability. With both sides shielded, it offers enhanced protection against contaminants, ensuring longevity and reliability in demanding environments.
Features & Benefits
• Double row design supports high load capacities
• Steel construction provides durability and resistance
• Shielded for protection against dust and moisture
• Suitable for precision applications with normal clearance
• High dynamic load rating of 20.4 kN enhances performance
• Established tolerance levels ensure consistent fit and function
• Steel construction provides durability and resistance
• Shielded for protection against dust and moisture
• Suitable for precision applications with normal clearance
• High dynamic load rating of 20.4 kN enhances performance
• Established tolerance levels ensure consistent fit and function
Applications
• Used in automated machinery for reliable operation
• Utilised in electrical devices requiring high-speed rotation
• Incorporated into mechanical assemblies for efficient power transmission
• Suitable for in the automotive industry
• Employed in various industrial equipment for longevity
• Utilised in electrical devices requiring high-speed rotation
• Incorporated into mechanical assemblies for efficient power transmission
• Suitable for in the automotive industry
• Employed in various industrial equipment for longevity
What specific loading capabilities can be expected?
The dynamic load rating of 20.4 kN and static load rating of 12.9 kN allow it to handle significant axial and radial loads effectively, making it Ideal for heavy-duty applications.
How does the shielding enhance the functionality of this bearing?
The shielded design prevents the ingress of debris and moisture, thereby reducing wear and potential failure, which is Crucial in maintaining operational efficiency in challenging environments.
What is the significance of the double row feature?
The double row design allows for higher load capacity and improved stability, which is essential for applications that experience varying load conditions or high-speed rotation.
Can this bearing be used in high-speed applications?
Yes, with a reference speed of 16,000 r/min and a limiting speed of 14,000 r/min, it is well-suited for high-speed operations, ensuring efficiency while maintaining performance.
