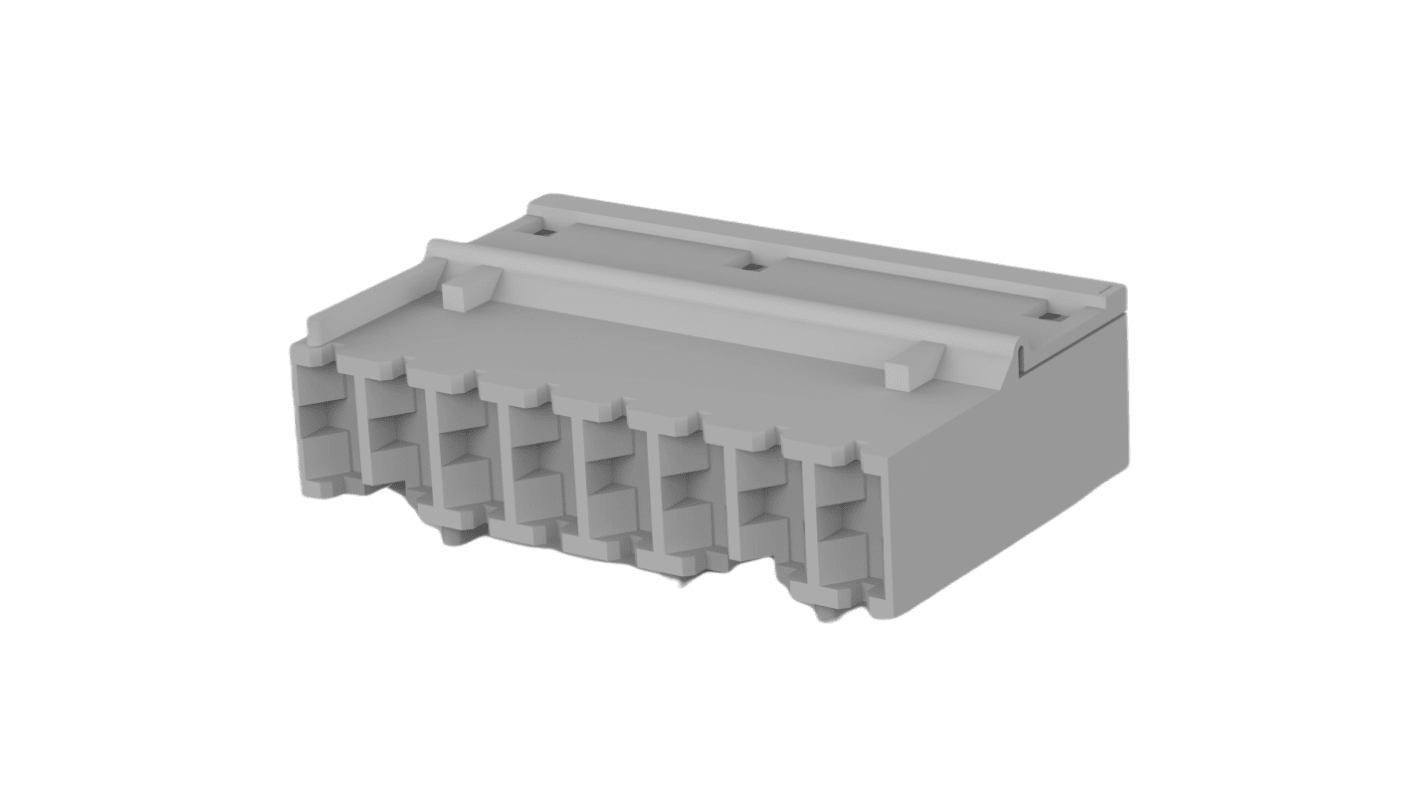

TE Connectivity, RAST 5 IDC Connectors Receptacle PCB Connector Housing, 5mm Pitch, 8 Way, 1 Row Vertical
- RS Stock No.:
- 302-543
- Mfr. Part No.:
- 3-928343-8
- Brand:
- TE Connectivity
Save 17% when you buy 25 units
Subtotal (1 unit)*
£1.76
(exc. VAT)
£2.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 143 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £1.76 |
10 - 24 | £1.62 |
25 + | £1.46 |
*price indicative
- RS Stock No.:
- 302-543
- Mfr. Part No.:
- 3-928343-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Number of Contacts | 8 | |
Number of Rows | 1 | |
Pitch | 5mm | |
Gender | Receptacle | |
Mounting Type | Cable Mount | |
Series | RAST 5 IDC Connectors | |
For Use With | Wire & Cable | |
Body Orientation | Vertical | |
Length | 40mm | |
Width | 12.2mm | |
Housing Material | PA 66 | |
Termination Method | Crimp | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Pitch 5mm | ||
Gender Receptacle | ||
Mounting Type Cable Mount | ||
Series RAST 5 IDC Connectors | ||
For Use With Wire & Cable | ||
Body Orientation Vertical | ||
Length 40mm | ||
Width 12.2mm | ||
Housing Material PA 66 | ||
Termination Method Crimp | ||
- COO (Country of Origin):
- DE
The TE Connectivity Housing is a wire-to-wire receptacle with 8 positions, a 5 mm centerline, and a 1-row configuration. It features a crimp termination and comes in grey. It is designed for wire and cable in both power and signal applications, part of the RAST 5 IDC Connector series. The housing meets UL 94V-2 flammability standards and is not glow wire rated. It is packaged in quantities of 1000 in a package. Its dimensions are 12.2 mm in height and 40 mm in length.
Latch mating retention
PA 6.6 construction
PA 6.6 construction
