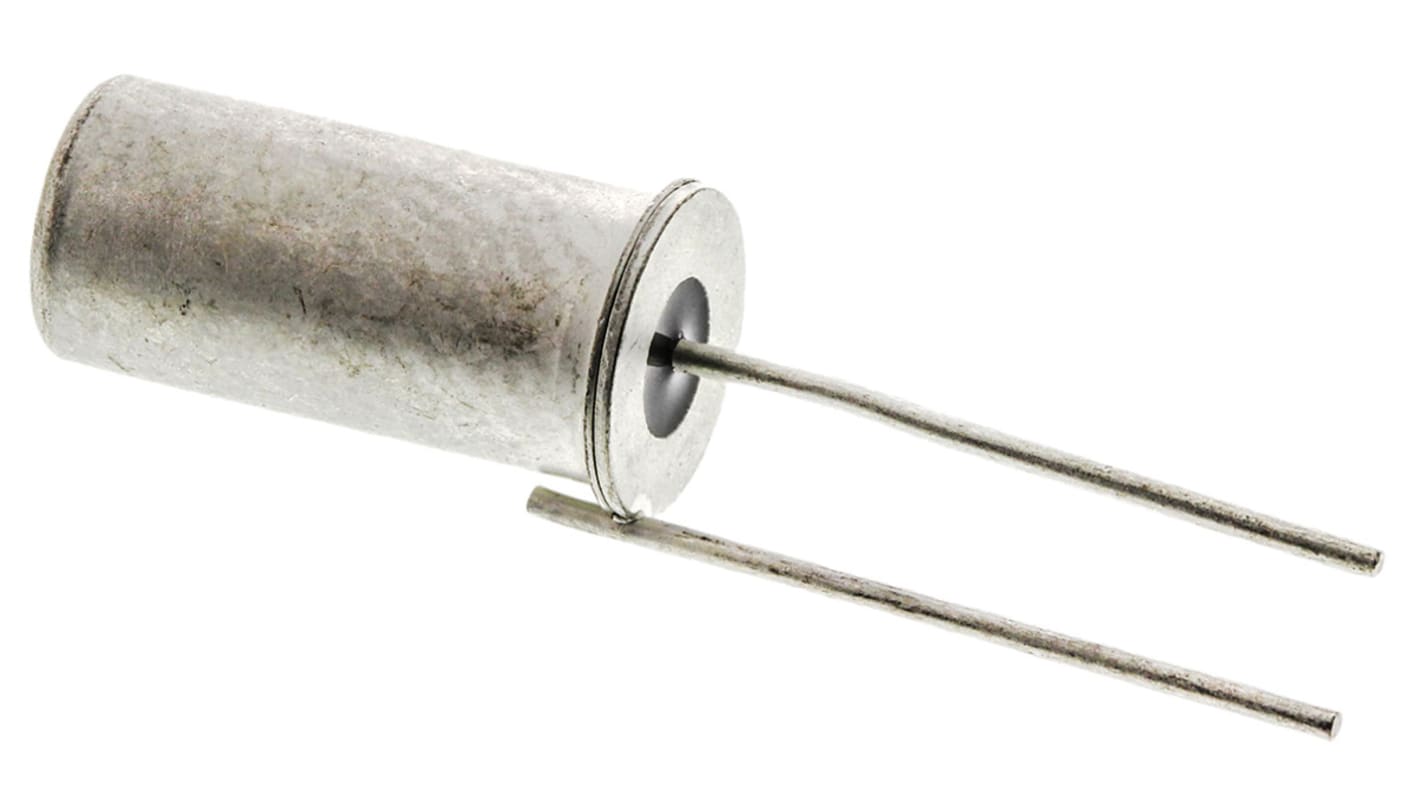

Assemtech 15° Horizontal Tilt Switch 250mA, 60V
- RS Stock No.:
- 779-0882
- Mfr. Part No.:
- CW1306-1
- Brand:
- Assemtech
Subtotal (1 unit)*
£7.35
(exc. VAT)
£8.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 112 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £7.35 |
*price indicative
- RS Stock No.:
- 779-0882
- Mfr. Part No.:
- CW1306-1
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Assemtech | |
Differential Angle | 15° | |
Mounting Orientation | Horizontal | |
Electrical Output | Voltage | |
Maximum Current | 250mA | |
Maximum AC Voltage | 60V | |
Contact Resistance | 30Ω | |
Terminal Type | PCB Pin | |
Length | 22.1mm | |
Minimum Operating Temperature | -37°C | |
Maximum Operating Temperature | +100°C | |
Dimensions | 5.94 (Dia.) x 22.1mm | |
Select all | ||
---|---|---|
Brand Assemtech | ||
Differential Angle 15° | ||
Mounting Orientation Horizontal | ||
Electrical Output Voltage | ||
Maximum Current 250mA | ||
Maximum AC Voltage 60V | ||
Contact Resistance 30Ω | ||
Terminal Type PCB Pin | ||
Length 22.1mm | ||
Minimum Operating Temperature -37°C | ||
Maximum Operating Temperature +100°C | ||
Dimensions 5.94 (Dia.) x 22.1mm | ||
- COO (Country of Origin):
- US
Tilt Switch / Motion Sensor - 2 Pin
Motion sensors are very similar in design to tilt switches and some tilt switches are used as motion sensors. Motion sensors will be in one condition (open or closed) at rest. When the sensor is subjected to motion it will continually change state as long as it remains in motion.
Resistant to ambient environmental conditions
Housing material: tin plated
Hermetically sealed and inert gas filled
Housing material: tin plated
Hermetically sealed and inert gas filled
