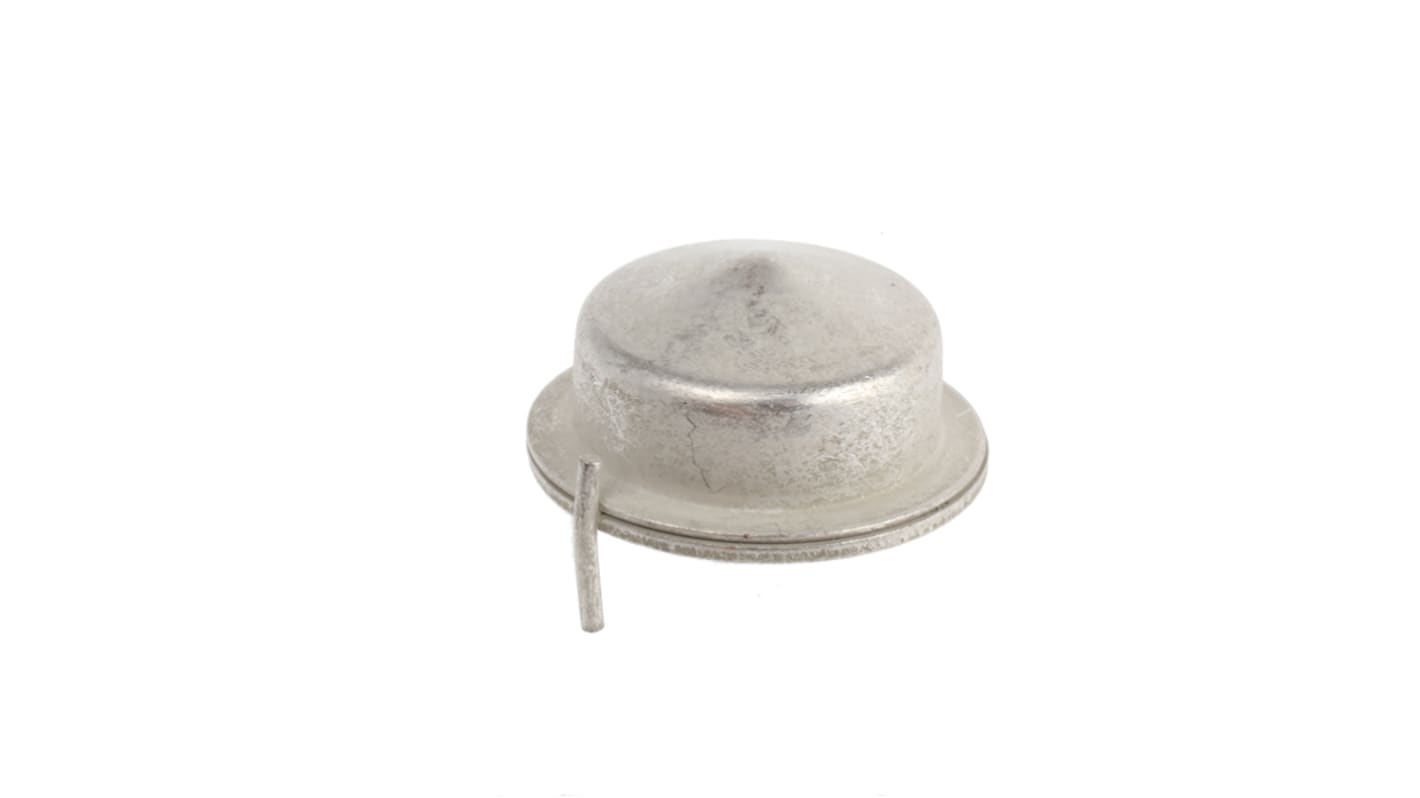

Assemtech 25° Horizontal Tilt Switch 250mA, 60V
- RS Stock No.:
- 361-5122
- Mfr. Part No.:
- CW1725-1
- Brand:
- Assemtech
23 In stock - FREE next working day delivery available
Added
Price Each
£18.30
(exc. VAT)
£21.96
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £18.30 |
| 5 - 9 | £17.80 |
| 10 + | £16.77 |
- RS Stock No.:
- 361-5122
- Mfr. Part No.:
- CW1725-1
- Brand:
- Assemtech
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Tip-over Switch - 2 Pin
Hermetically sealed metal, tin plated housing
Gold plated contacts
Dimensions: Length 11mm (inc. pins) Body Dia. 15mm
Gold plated contacts
Dimensions: Length 11mm (inc. pins) Body Dia. 15mm
Specifications
Attribute | Value |
|---|---|
| Differential Angle | 25° |
| Mounting Orientation | Horizontal |
| Maximum Current | 250mA |
| Maximum AC Voltage | 60V |
| Maximum DC Voltage | 60V |
| Contact Resistance | 30Ω |
| Terminal Type | PCB |
| Length | 11mm |
| Minimum Operating Temperature | -37°C |
| Maximum Operating Temperature | +100°C |
| Dimensions | 12.3 (Dia.) x 11mm |
