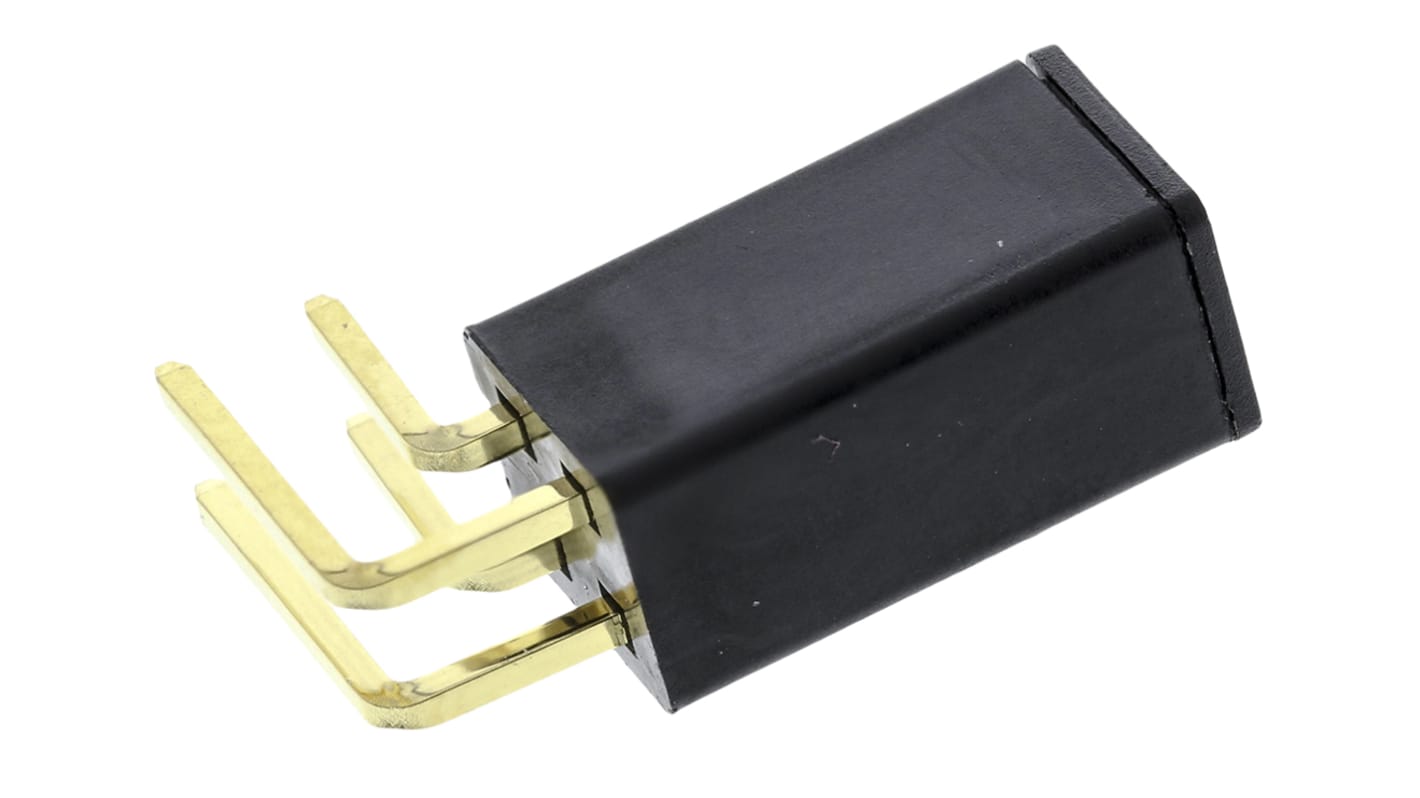

Assemtech 15° Horizontal Tilt Switch 25mA, 24V
- RS Stock No.:
- 361-5093
- Mfr. Part No.:
- RBS040200
- Brand:
- Assemtech
Subtotal (1 unit)*
£1.99
(exc. VAT)
£2.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 26 unit(s) ready to ship
- Plus 196 unit(s) ready to ship from another location
- Plus 400 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.99 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1.99
(exc. VAT)
£2.39
(inc. VAT)
- RS Stock No.:
- 361-5093
- Mfr. Part No.:
- RBS040200
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Assemtech | |
| Differential Angle | 15° | |
| Mounting Orientation | Horizontal | |
| Maximum Current | 25mA | |
| Maximum AC Voltage | 24V | |
| Maximum DC Voltage | 24V | |
| Terminal Type | PCB | |
| Length | 6mm | |
| Depth | 11mm | |
| Width | 5mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Dimensions | 6 x 5 x 11mm | |
Select all | ||
|---|---|---|
Brand Assemtech | ||
Differential Angle 15° | ||
Mounting Orientation Horizontal | ||
Maximum Current 25mA | ||
Maximum AC Voltage 24V | ||
Maximum DC Voltage 24V | ||
Terminal Type PCB | ||
Length 6mm | ||
Depth 11mm | ||
Width 5mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Dimensions 6 x 5 x 11mm | ||
- COO (Country of Origin):
- TW
Tilt/Movement Switches
Designed to trigger an I.C., these switches detect tilt or tip-over movement
Vertical and 90° Pin versions in polyamide UL94V-0 housing
Both types have gold plated ball and gold plated terminals for improved life and stability
Suitable for alarm and non-hazardous applications
Differential angle 15°
Vertical and 90° Pin versions in polyamide UL94V-0 housing
Both types have gold plated ball and gold plated terminals for improved life and stability
Suitable for alarm and non-hazardous applications
Differential angle 15°
