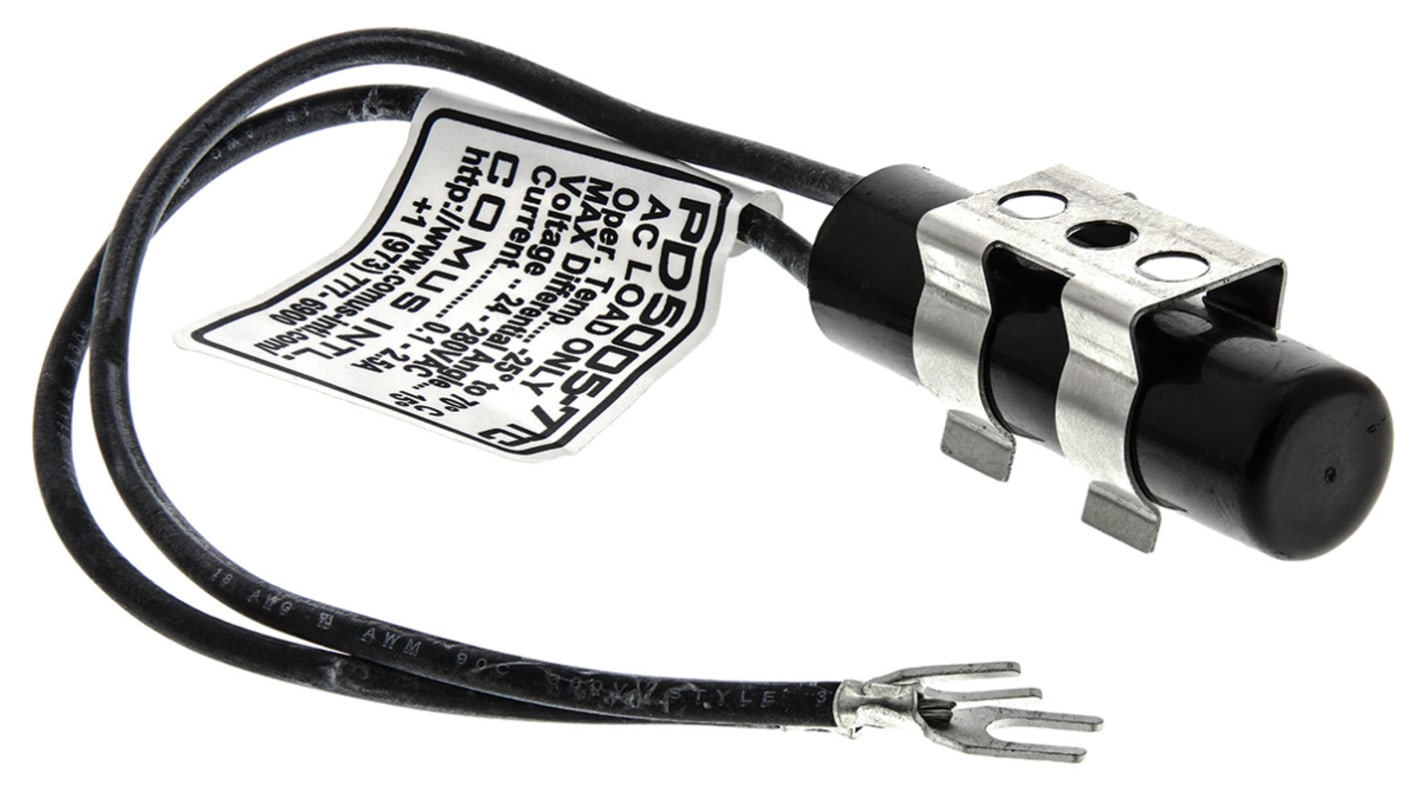

Assemtech 15 ° Horizontal Tilt Switch 2.5 A 280 V ac
- RS Stock No.:
- 779-0873
- Mfr. Part No.:
- PD5005-7TC
- Brand:
- Assemtech
Subtotal (1 unit)*
£89.78
(exc. VAT)
£107.74
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 27 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £89.78 |
*price indicative
- RS Stock No.:
- 779-0873
- Mfr. Part No.:
- PD5005-7TC
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Assemtech | |
| Differential Angle | 15 ° | |
| Product Type | Tilt Switch | |
| Mounting Orientation | Horizontal | |
| Maximum Current | 2.5A | |
| Maximum AC Voltage | 280V ac | |
| Maximum DC Voltage | 200V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 75°C | |
| Series | PD5005 | |
| Standards/Approvals | RoHS | |
| Diameter | 12mm | |
| Length | 47.6mm | |
| Depth | 10mm | |
| Select all | ||
|---|---|---|
Brand Assemtech | ||
Differential Angle 15 ° | ||
Product Type Tilt Switch | ||
Mounting Orientation Horizontal | ||
Maximum Current 2.5A | ||
Maximum AC Voltage 280V ac | ||
Maximum DC Voltage 200V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 75°C | ||
Series PD5005 | ||
Standards/Approvals RoHS | ||
Diameter 12mm | ||
Length 47.6mm | ||
Depth 10mm | ||
- COO (Country of Origin):
- US
Hybrid Tilt Switch
2.5A hybrid mercury free tilt switch.
High commutation triac output
Peak-off state voltage: 600 Vdrm
ABS case material
2x0.75 mmsq. neoprene insulated cable
