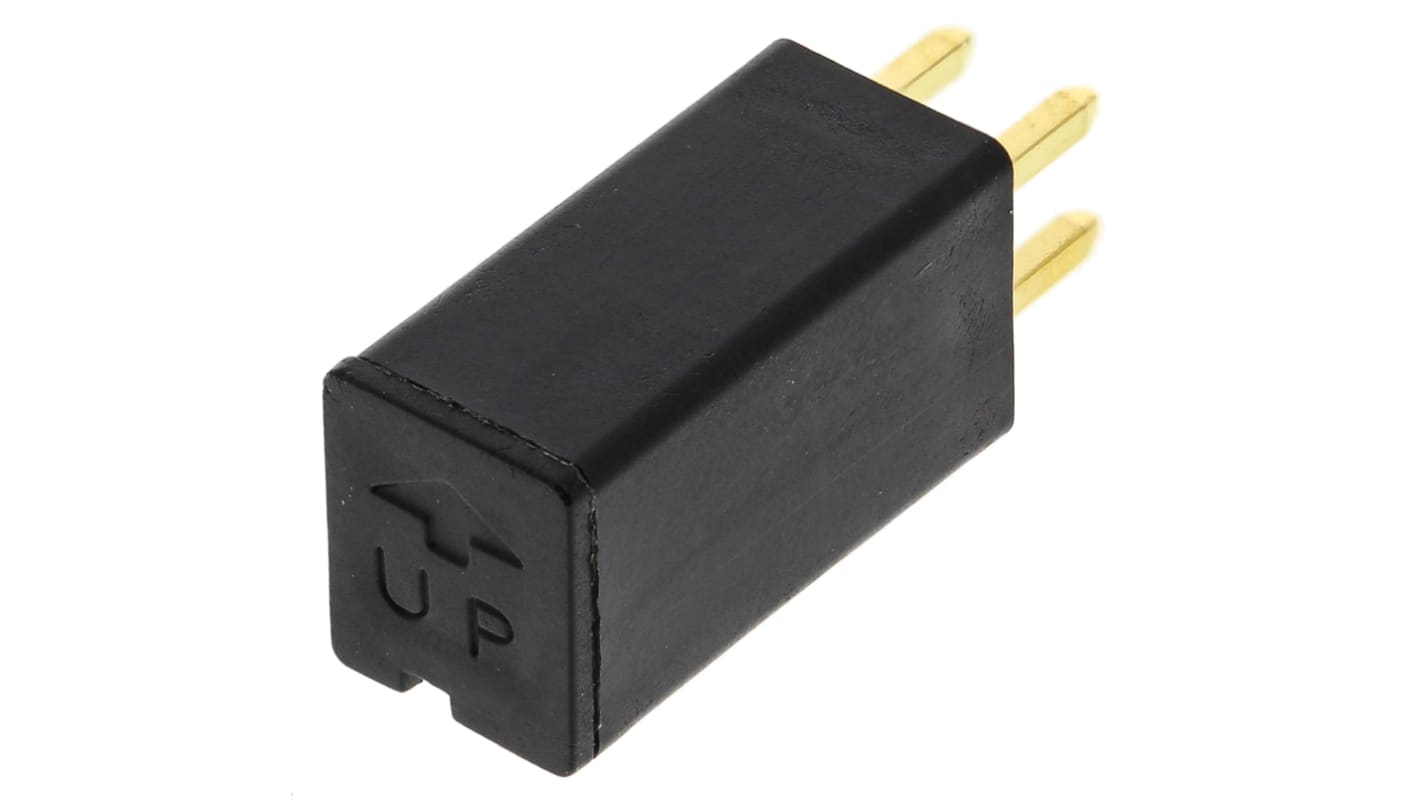

Assemtech 15 ° Horizontal Tilt Switch 25 mA 24 V ac
- RS Stock No.:
- 361-5087
- Mfr. Part No.:
- RBS040100
- Brand:
- Assemtech
Subtotal (1 unit)*
£2.01
(exc. VAT)
£2.41
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £2.01 |
*price indicative
- RS Stock No.:
- 361-5087
- Mfr. Part No.:
- RBS040100
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Assemtech | |
| Product Type | Tilt Switch | |
| Differential Angle | 15 ° | |
| Mounting Orientation | Horizontal | |
| Maximum Current | 25mA | |
| Maximum AC Voltage | 24V ac | |
| Maximum DC Voltage | 24V dc | |
| Contact Resistance | 10Ω | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Depth | 14mm | |
| Length | 6mm | |
| Series | RBS0 | |
| Width | 5mm | |
| Select all | ||
|---|---|---|
Brand Assemtech | ||
Product Type Tilt Switch | ||
Differential Angle 15 ° | ||
Mounting Orientation Horizontal | ||
Maximum Current 25mA | ||
Maximum AC Voltage 24V ac | ||
Maximum DC Voltage 24V dc | ||
Contact Resistance 10Ω | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Depth 14mm | ||
Length 6mm | ||
Series RBS0 | ||
Width 5mm | ||
Tilt/Movement Switches
Designed to trigger an I.C., these switches detect tilt or tip-over movement
Vertical and 90° Pin versions in polyamide UL94V-0 housing
Both types have gold plated ball and gold plated terminals for improved life and stability
Suitable for alarm and non-hazardous applications
Differential angle 15°
