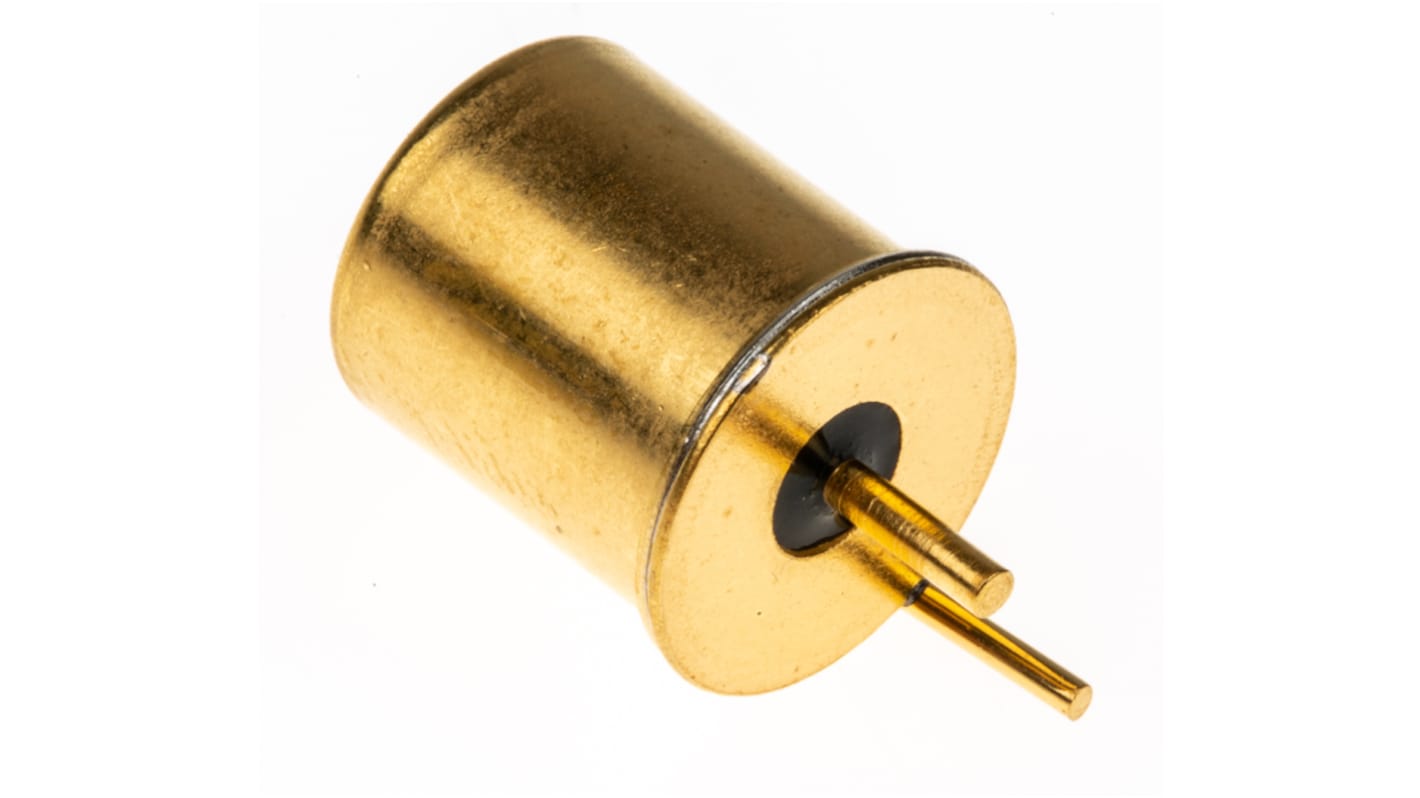

Assemtech Any Position Tilt Switch 250 mA 24 V ac

View all Tilt Switches
Bulk discount available

Subtotal (1 unit)*

£14.77

(exc. VAT)

£17.72

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,754 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£14.77
5 - 9£14.27
10 +£13.59

*price indicative

RS Stock No.:
331-7519
Mfr. Part No.:
S1425
Brand:
Assemtech
Find similar products by selecting one or more attributes.
Select all

Brand

Assemtech

Product Type

Tilt Switch

Mounting Orientation

Any Position

Maximum Current

250mA

Maximum AC Voltage

24V ac

Maximum DC Voltage

24V dc

Contact Resistance

5Ω

Minimum Operating Temperature

-37°C

Maximum Operating Temperature

100°C

Length

14mm

Diameter

8.2mm

Standards/Approvals

RoHS

Series

S14

Width

4.7mm

COO (Country of Origin):
GB

Movement / Vibration Sensor - Standard & Miniature


Sensor reacts when disturbed by giving a fleeting change of state (i.e. N/O to N/C or vice versa). The time taken to settle depends on the amount of energy absorbed by the device, the settled state will be random unless mounting is chosen for a N/C output

Non-position sensitive

Analogue or digital circuitry

Gold-plated steel body
