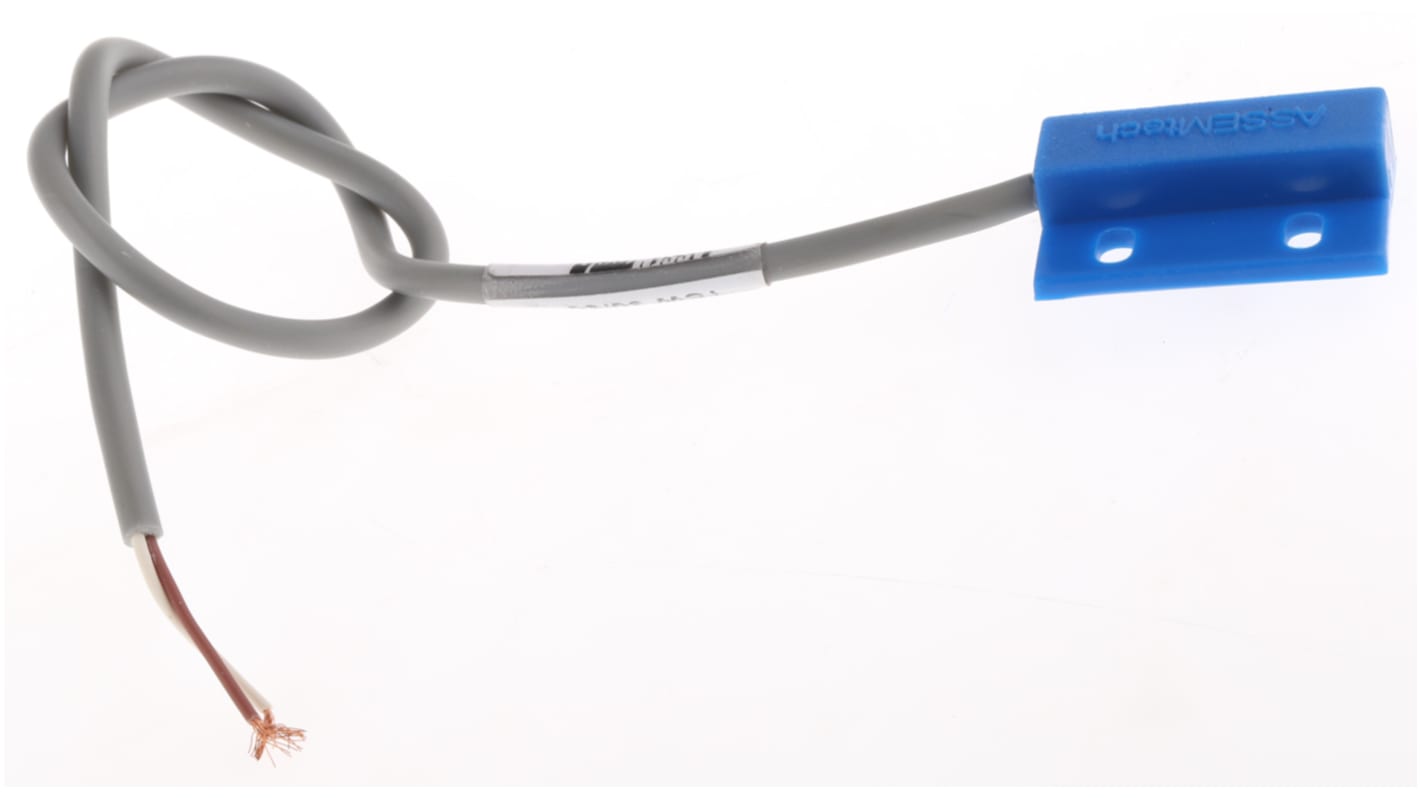

Assemtech 15 ° Horizontal Tilt Switch 250 mA 60 V ac
- RS Stock No.:
- 361-5065
- Mfr. Part No.:
- S1267
- Brand:
- Assemtech
Subtotal (1 unit)*
£6.46
(exc. VAT)
£7.75
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £6.46 |
*price indicative
- RS Stock No.:
- 361-5065
- Mfr. Part No.:
- S1267
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Assemtech | |
| Product Type | Tilt Switch | |
| Differential Angle | 15 ° | |
| Mounting Orientation | Horizontal | |
| Maximum Current | 250mA | |
| Maximum AC Voltage | 60V ac | |
| Maximum DC Voltage | 60V dc | |
| Contact Resistance | 30Ω | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Depth | 20mm | |
| Series | S12 | |
| Width | 7mm | |
| Length | 30mm | |
| Diameter | 7mm | |
| Select all | ||
|---|---|---|
Brand Assemtech | ||
Product Type Tilt Switch | ||
Differential Angle 15 ° | ||
Mounting Orientation Horizontal | ||
Maximum Current 250mA | ||
Maximum AC Voltage 60V ac | ||
Maximum DC Voltage 60V dc | ||
Contact Resistance 30Ω | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Depth 20mm | ||
Series S12 | ||
Width 7mm | ||
Length 30mm | ||
Diameter 7mm | ||
Encapsulated Tilt
Cylindrical and Rectangular polypropylene housed Tilt switches rated to IP65
Hermetically sealed, gold plated contacts
Cylindrical type prewired with 150mm of 2 core PVC cable, Rectangular type prewired with 300mm of 2 core PVC cable
Differential angles: cylindrical tilt switch 15°, rectangular 16°
