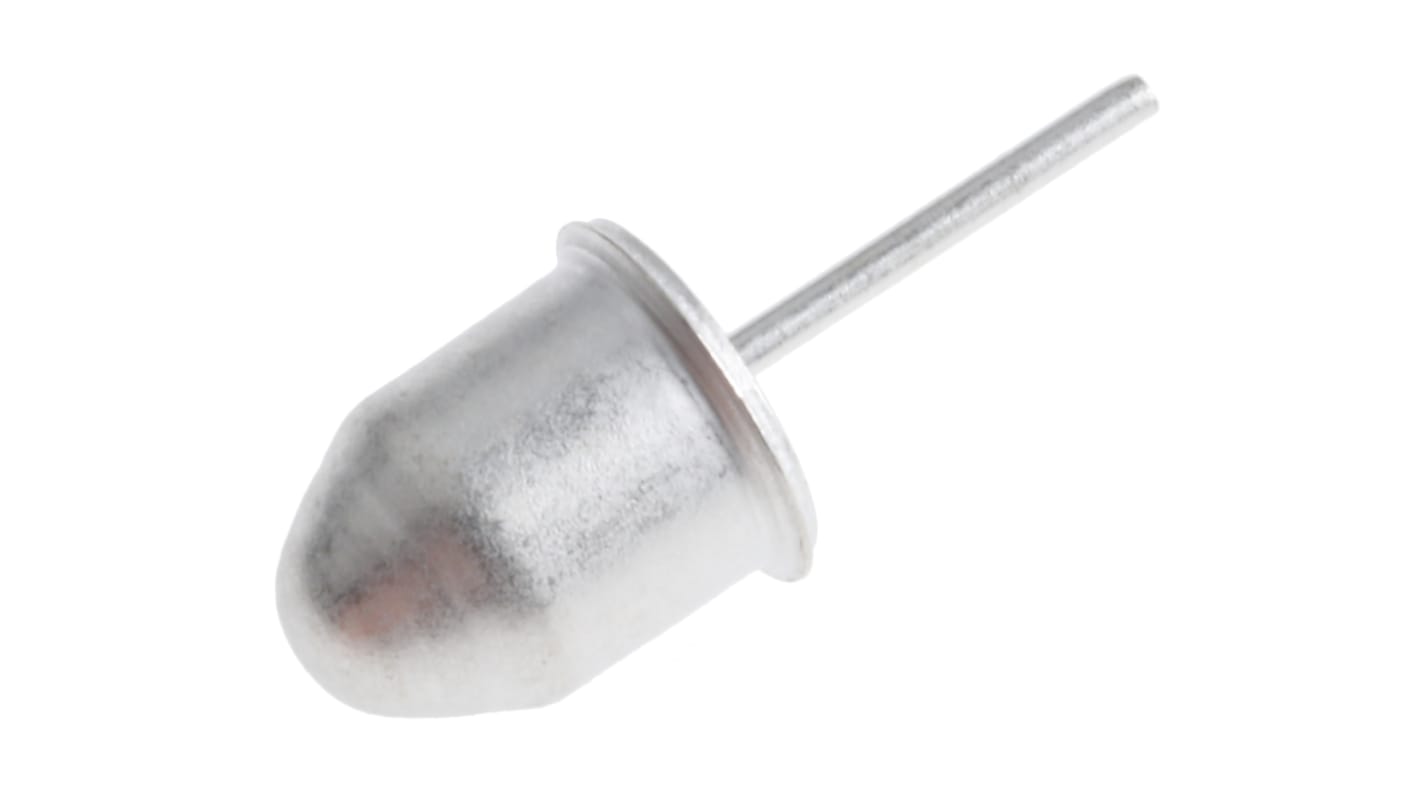

Assemtech 60 ° Horizontal Tilt Switch 250 mA 60 V ac
- RS Stock No.:
- 361-5194
- Mfr. Part No.:
- CW1260-0
- Brand:
- Assemtech
Subtotal (1 unit)*
£7.43
(exc. VAT)
£8.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 49 unit(s) shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.43 |
*price indicative
- RS Stock No.:
- 361-5194
- Mfr. Part No.:
- CW1260-0
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Assemtech | |
| Product Type | Tilt Switch | |
| Differential Angle | 60 ° | |
| Mounting Orientation | Horizontal | |
| Maximum Current | 250mA | |
| Maximum AC Voltage | 60V ac | |
| Contact Resistance | 5mΩ | |
| Minimum Operating Temperature | -37°C | |
| Maximum Operating Temperature | 100°C | |
| Diameter | 12mm | |
| Standards/Approvals | RoHS | |
| Length | 16.25mm | |
| Series | CW1 | |
| Width | 7.62mm | |
| Select all | ||
|---|---|---|
Brand Assemtech | ||
Product Type Tilt Switch | ||
Differential Angle 60 ° | ||
Mounting Orientation Horizontal | ||
Maximum Current 250mA | ||
Maximum AC Voltage 60V ac | ||
Contact Resistance 5mΩ | ||
Minimum Operating Temperature -37°C | ||
Maximum Operating Temperature 100°C | ||
Diameter 12mm | ||
Standards/Approvals RoHS | ||
Length 16.25mm | ||
Series CW1 | ||
Width 7.62mm | ||
- COO (Country of Origin):
- US
Tip-over Switches - Housed & 1 Pin
Hermetically sealed steel tin plated switch, available with or without a polypropylene housing
Gold plated contacts
Housed type is rated to IP65 and is prewired with 150mm of 2 core PVC cable
