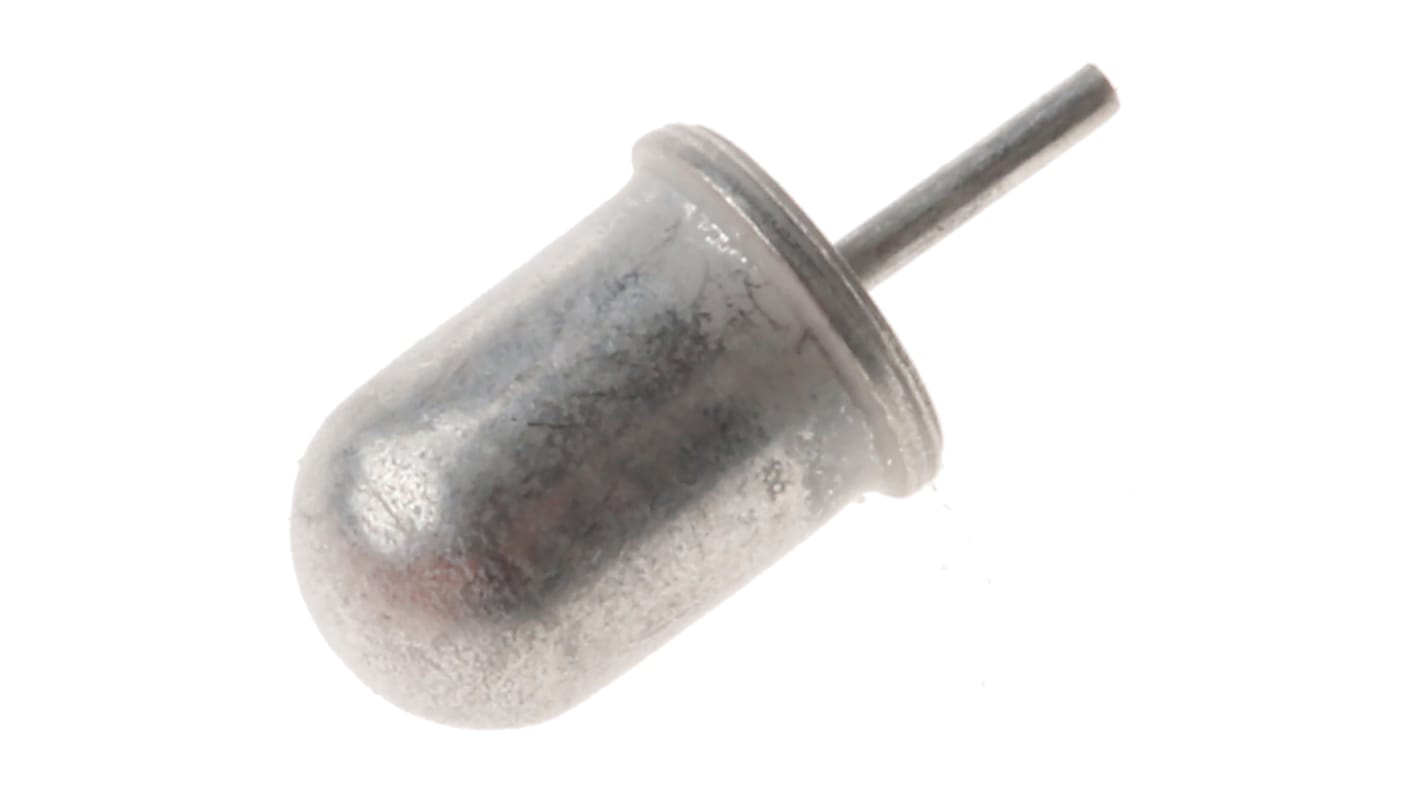

Assemtech 15° Horizontal Tilt Switch 100mA, 60V
- RS Stock No.:
- 779-0870
- Mfr. Part No.:
- CW1600-0
- Brand:
- Assemtech
8 In stock - FREE next working day delivery available
Added
Price Each
£6.73
(exc. VAT)
£8.08
(inc. VAT)
| Units | Per unit |
| 1 + | £6.73 |
- RS Stock No.:
- 779-0870
- Mfr. Part No.:
- CW1600-0
- Brand:
- Assemtech
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Movement / Vibration Switch - 1 Pin
Motion sensors are very similar in design to tilt switches and some tilt switches are used as motion sensors. Motion sensors will be in one condition (open or closed) at rest. When the sensor is subjected to motion it will continually change state as long as it remains in motion.
Resistant to ambient environmental conditions
Case material: steel-tin plated
Mechanical stress resistant
Hermetically sealed & inert gas filled
Case material: steel-tin plated
Mechanical stress resistant
Hermetically sealed & inert gas filled
Specifications
Attribute | Value |
|---|---|
| Differential Angle | 15° |
| Mounting Orientation | Horizontal |
| Electrical Output | Voltage |
| Maximum Current | 100mA |
| Maximum AC Voltage | 60V |
| Contact Resistance | 100Ω |
| Terminal Type | PCB Pin |
| Length | 8.71mm |
| Minimum Operating Temperature | -37°C |
| Maximum Operating Temperature | +100°C |
| Dimensions | 4.27 (Dia.) x 8.71mm |
