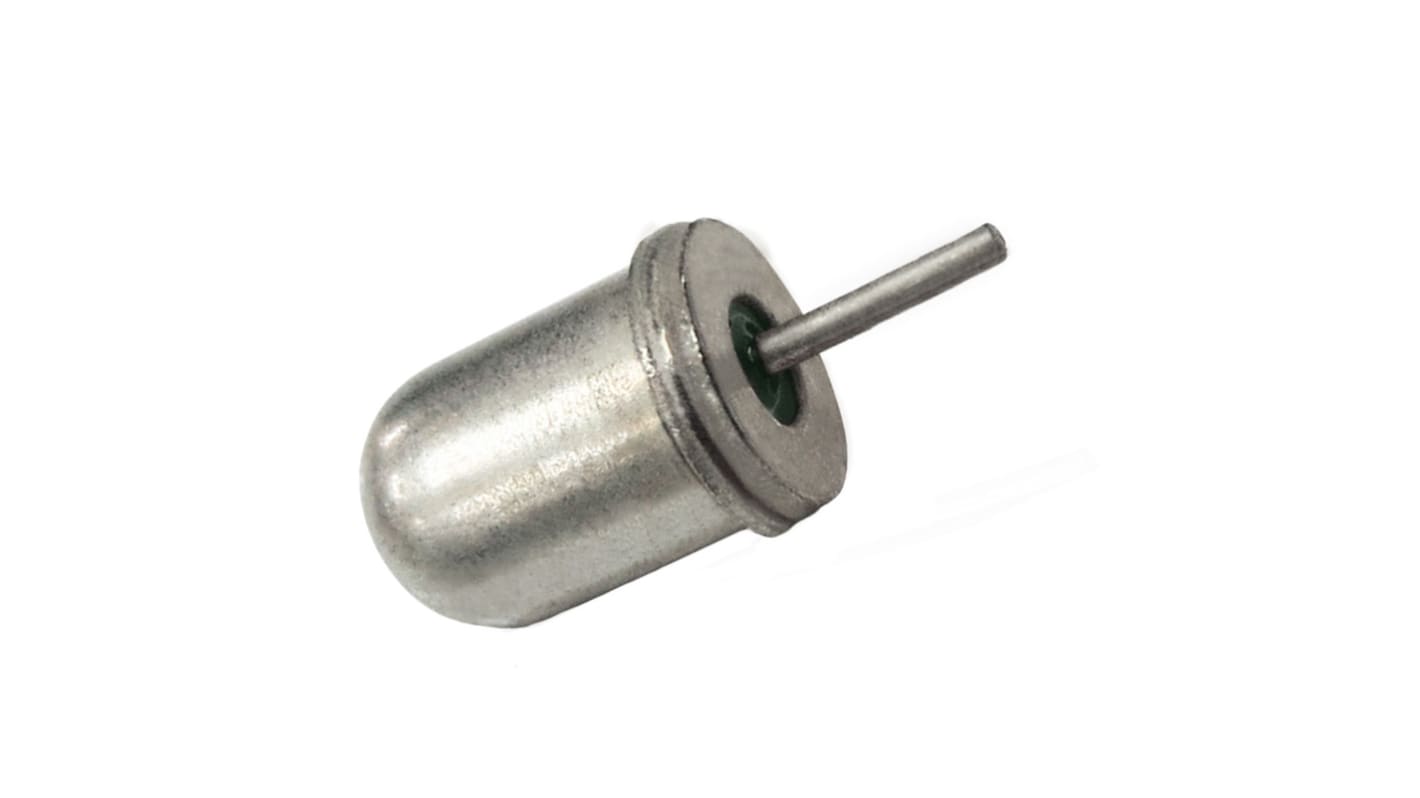

Assemtech 10 ° Horizontal Tilt Switch 0.1 A 60 V ac
- RS Stock No.:
- 209-9921
- Mfr. Part No.:
- CW1600-1
- Brand:
- Assemtech
Subtotal (1 unit)*
£4.50
(exc. VAT)
£5.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 88 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.50 |
*price indicative
- RS Stock No.:
- 209-9921
- Mfr. Part No.:
- CW1600-1
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Assemtech | |
| Product Type | Tilt Switch | |
| Differential Angle | 10 ° | |
| Mounting Orientation | Horizontal | |
| Maximum Current | 0.1A | |
| Maximum AC Voltage | 60V ac | |
| Contact Resistance | 100Ω | |
| Minimum Operating Temperature | -37°C | |
| Maximum Operating Temperature | 100°C | |
| Diameter | 4.27mm | |
| Standards/Approvals | ISO 9001 | |
| Series | CW1600 | |
| Length | 8.71mm | |
| Select all | ||
|---|---|---|
Brand Assemtech | ||
Product Type Tilt Switch | ||
Differential Angle 10 ° | ||
Mounting Orientation Horizontal | ||
Maximum Current 0.1A | ||
Maximum AC Voltage 60V ac | ||
Contact Resistance 100Ω | ||
Minimum Operating Temperature -37°C | ||
Maximum Operating Temperature 100°C | ||
Diameter 4.27mm | ||
Standards/Approvals ISO 9001 | ||
Series CW1600 | ||
Length 8.71mm | ||
- COO (Country of Origin):
- US
The Assemtech Mercury Free Tilt Switch / Motion Sensor.
Resistant to Ambient Environmental Conditions
Case Material : Steel-Tin Plated
Mechanical Stress Resistant
Hermetically Sealed & Inert Gas Filled
Could also be used as a Movement vibration switch
Customization Available
