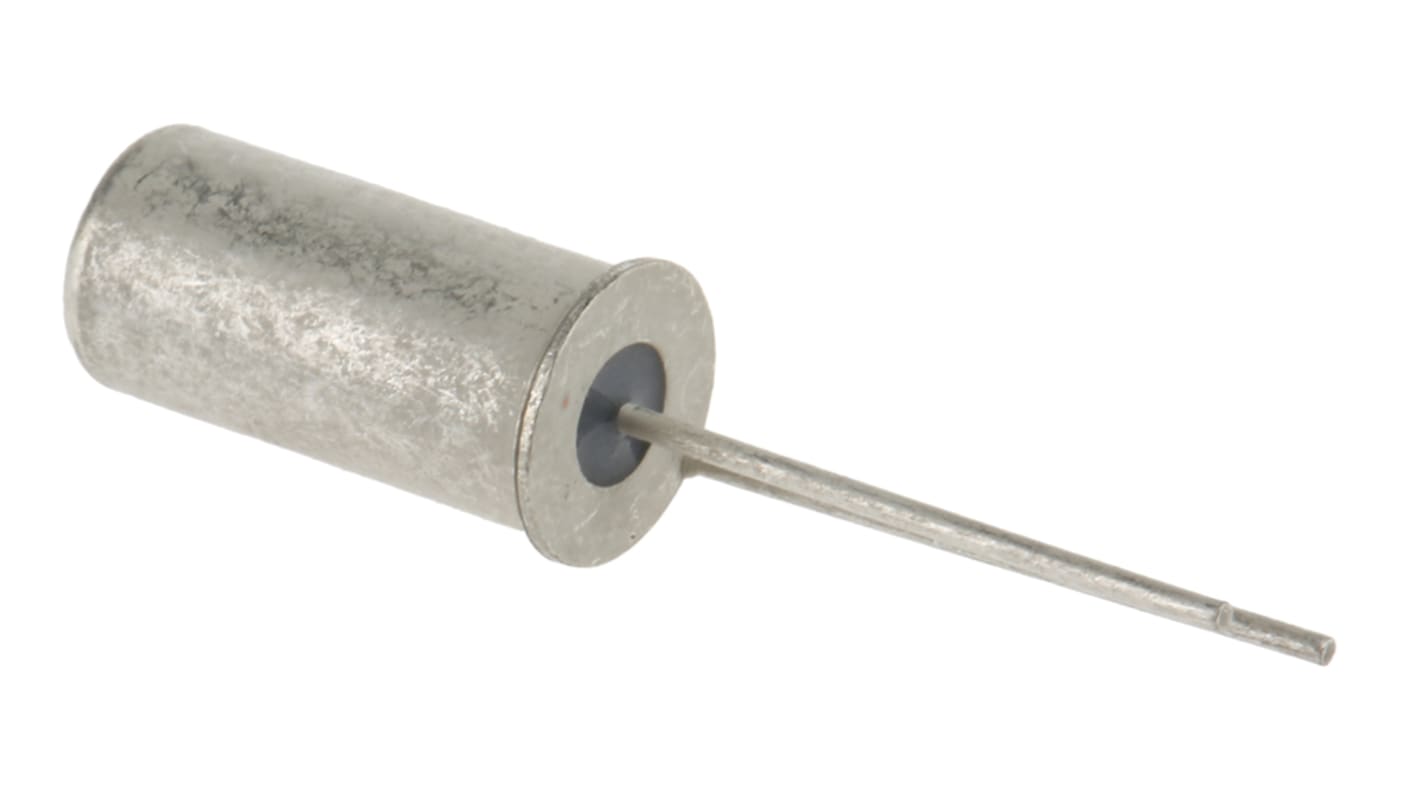

Assemtech 15 ° Horizontal Tilt Switch 250 mA 60 V ac
- RS Stock No.:
- 235-7623
- Mfr. Part No.:
- CW1300-1
- Brand:
- Assemtech
Subtotal (1 unit)*
£4.18
(exc. VAT)
£5.02
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1,063 unit(s) shipping from 10 August 2026
- Plus 265 unit(s) shipping from 10 August 2026
- Plus 391 unit(s) shipping from 12 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.18 |
*price indicative
- RS Stock No.:
- 235-7623
- Mfr. Part No.:
- CW1300-1
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Assemtech | |
| Differential Angle | 15 ° | |
| Product Type | Tilt Switch | |
| Mounting Orientation | Horizontal | |
| Maximum Current | 250mA | |
| Maximum AC Voltage | 60V ac | |
| Maximum DC Voltage | 60V dc | |
| Contact Resistance | 30Ω | |
| Minimum Operating Temperature | -37°C | |
| Maximum Operating Temperature | 100°C | |
| Diameter | 4.7mm | |
| Length | 22.1mm | |
| Standards/Approvals | No | |
| Width | 4.7mm | |
| Select all | ||
|---|---|---|
Brand Assemtech | ||
Differential Angle 15 ° | ||
Product Type Tilt Switch | ||
Mounting Orientation Horizontal | ||
Maximum Current 250mA | ||
Maximum AC Voltage 60V ac | ||
Maximum DC Voltage 60V dc | ||
Contact Resistance 30Ω | ||
Minimum Operating Temperature -37°C | ||
Maximum Operating Temperature 100°C | ||
Diameter 4.7mm | ||
Length 22.1mm | ||
Standards/Approvals No | ||
Width 4.7mm | ||
- COO (Country of Origin):
- US
Standard & Miniature Tilt 2 Pin
Gas filled, hermetically sealed in miniature metal housings for use in ON/OFF control applications
±7.5° from the horizontal angle
The switch movement required to cause contact change (E.g. on/off) is called the differential angle
Note
When in the horizontal position the switch contact may be open or closed.
