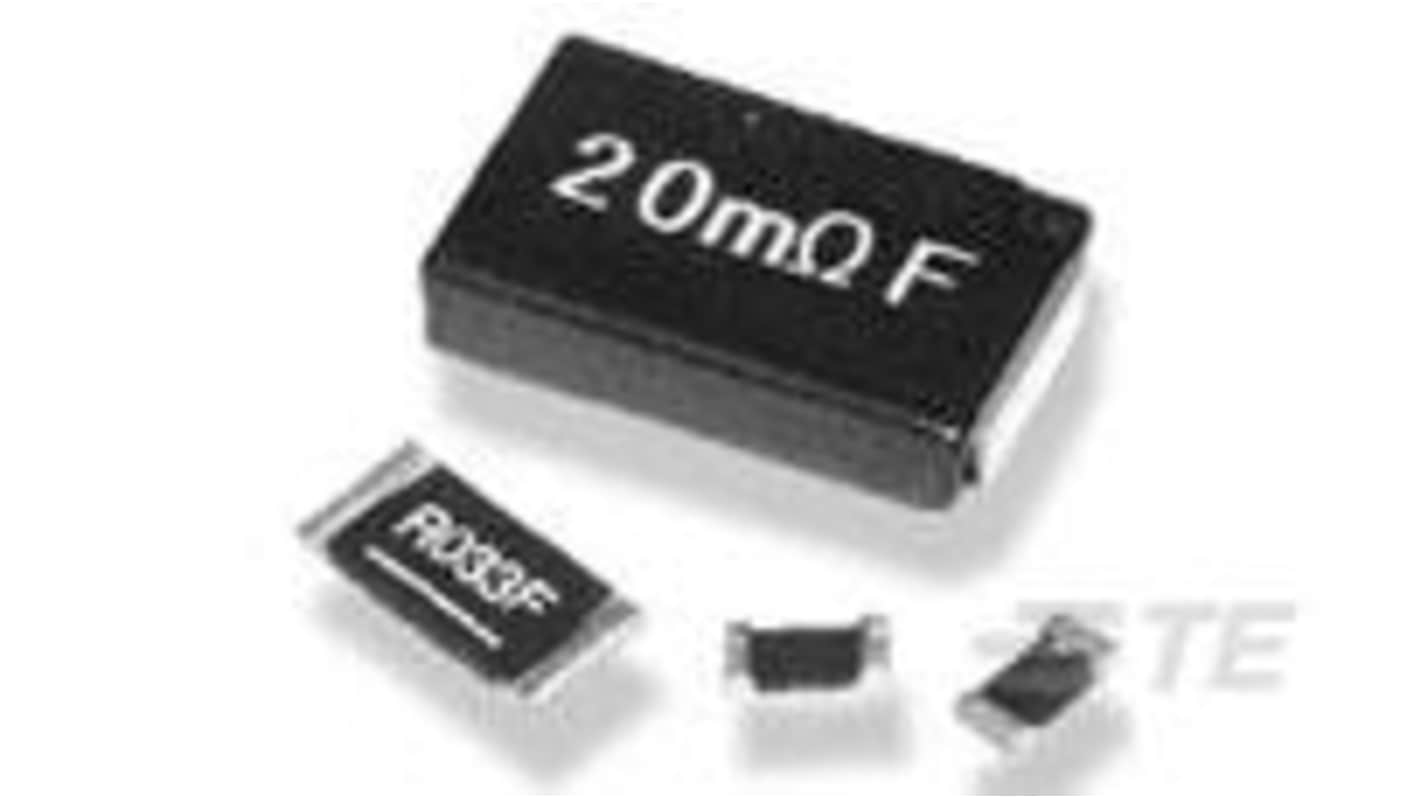

TE Connectivity CGS TLR 0.012 Ω, 2512 Current Sensing Surface Mount Resistor 1 % Surface 1 W - 2176166-3
- RS Stock No.:
- 468-828
- Distrelec Article No.:
- 304-60-400
- Mfr. Part No.:
- 2176166-3
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 468-828
- Distrelec Article No.:
- 304-60-400
- Mfr. Part No.:
- 2176166-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Surface Mount Resistor | |
| Resistance | 0.012Ω | |
| Resistor Type | Current | |
| Technology | Current Sensing | |
| Package/Case | 2512 | |
| Packaging | Tape & Reel | |
| Tolerance | 1 % | |
| Power Rating | 1W | |
| Temperature Coefficient | ±75 ppm/°C | |
| Mount Type | Surface | |
| Automotive Standard | No | |
| Series | CGS TLR | |
| Standards/Approvals | 2016 Restricted Materials Above Threshold, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant with Exemptions | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Surface Mount Resistor | ||
Resistance 0.012Ω | ||
Resistor Type Current | ||
Technology Current Sensing | ||
Package/Case 2512 | ||
Packaging Tape & Reel | ||
Tolerance 1 % | ||
Power Rating 1W | ||
Temperature Coefficient ±75 ppm/°C | ||
Mount Type Surface | ||
Automotive Standard No | ||
Series CGS TLR | ||
Standards/Approvals 2016 Restricted Materials Above Threshold, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant with Exemptions | ||
- COO (Country of Origin):
- TW
The TE Connectivity Top-of-the-line resistor exemplifies precision and reliability in electronic components, specifically designed for current sensing applications. Furthermore, the excellent power rating of 1 watt empowers it to handle demanding tasks with ease. Crafted with low halogen materials, this resistor aligns with environmentally-friendly initiatives while maintaining high performance standards. The product’s compliance with various global directives showcases its commitment to safety and quality, ensuring it meets the rigorous standards expected by engineers and manufacturers alike.
Designed with current sensing capabilities for accurate measurements
Low halogen construction ensures minimal environmental impact
Exceptional tolerance level ensures reliable performance
Built to withstand a wide temperature range, enhancing durability
Complies with EU RoHS and ELV directives for safety and reliability
Taped and reeled packaging allows for convenient handling and deployment
Dual termination points promote easy soldering and integration into circuits
