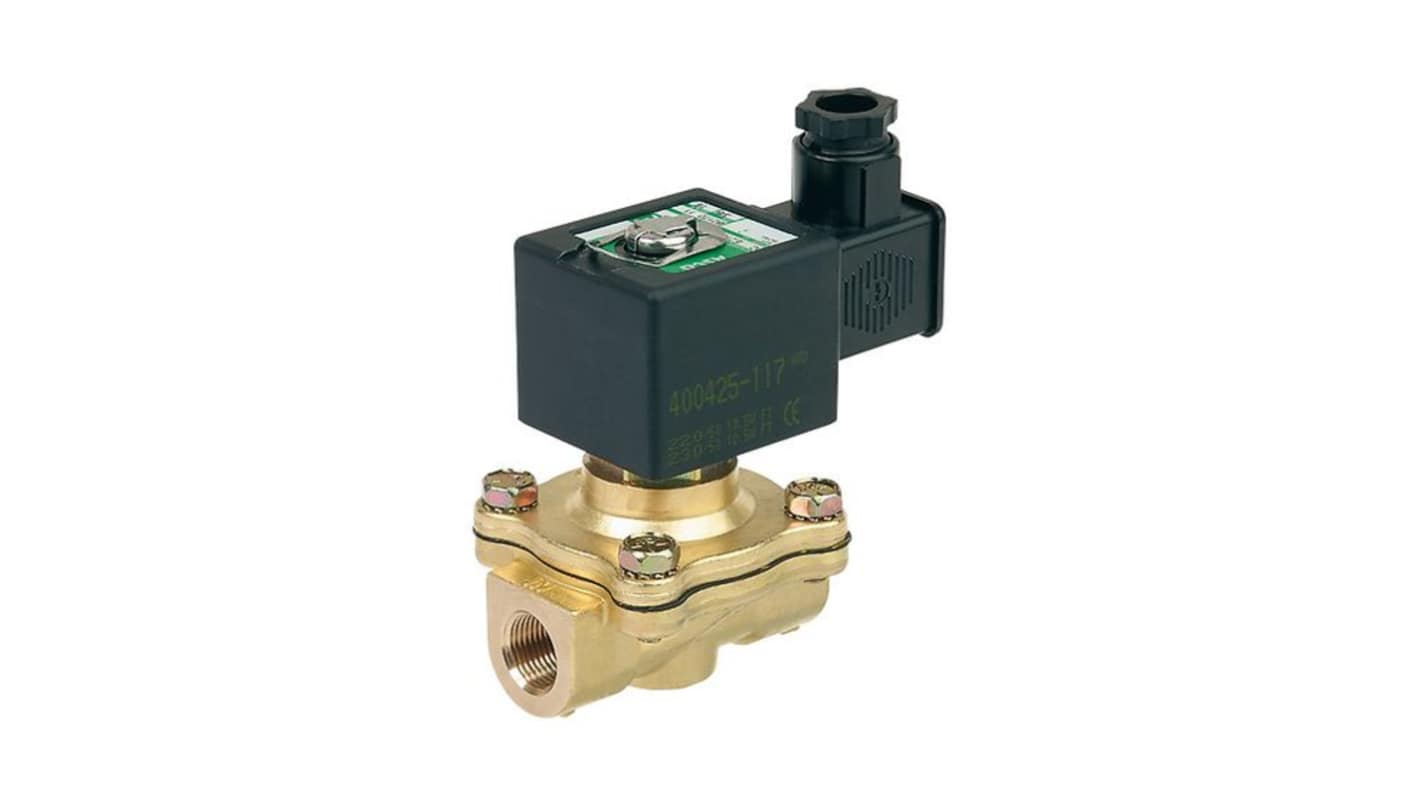

EMERSON ? ASCO Solenoid Valve SCE210C494.12/DC, 2 port(s) , NC, 12 V, 1/2in
- RS Stock No.:
- 432-326
- Mfr. Part No.:
- SCE210C494.12/DC
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£235.31
(exc. VAT)
£282.37
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £235.31 |
*price indicative
- RS Stock No.:
- 432-326
- Mfr. Part No.:
- SCE210C494.12/DC
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? ASCO | |
Supply Voltage | 12 V | |
Number of Ports | 2 | |
Connection Size | 1/2in | |
Connection | G 1/2 | |
Operation | Pilot | |
Default Valve Position | NC | |
Suitable Applications | Air, Inert Gas, Oil, Water | |
Type | Solenoid | |
Orifice Diameter | 16mm | |
Body Material | Brass | |
Series | 210 | |
Maximum Working Pressure | 16 bar | |
Operating Temperature Range | -20 → +85 °C | |
Servo Assist | No | |
Thread Standard or Connection Type | G | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +85°C | |
Flow Factor Kv | 57L/min | |
Select all | ||
---|---|---|
Brand EMERSON ? ASCO | ||
Supply Voltage 12 V | ||
Number of Ports 2 | ||
Connection Size 1/2in | ||
Connection G 1/2 | ||
Operation Pilot | ||
Default Valve Position NC | ||
Suitable Applications Air, Inert Gas, Oil, Water | ||
Type Solenoid | ||
Orifice Diameter 16mm | ||
Body Material Brass | ||
Series 210 | ||
Maximum Working Pressure 16 bar | ||
Operating Temperature Range -20 → +85 °C | ||
Servo Assist No | ||
Thread Standard or Connection Type G | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +85°C | ||
Flow Factor Kv 57L/min | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Asco Solenoid Valve is expertly designed for optimal performance in controlling air, inert gases, water, and oils. Integrating a pilot-operated, hung diaphragm mechanism, this valve delivers reliable operation across various demanding applications. The compact design ensures it fits seamlessly in confined spaces while maintaining efficiency. With no minimum operating pressure requirement, it enhances system flexibility and integration. Constructed from high-quality brass and stainless steel materials, this solenoid valve not only offers durability but is also compliant with essential EU directives and pressure equipment regulations. This valve is suitable for both AC and DC power sources, making it a versatile choice for numerous installations, while the robust IP65 enclosure rating ensures protection against dust and water ingress, extending its operational life in challenging environments.
Two-way shut-off valve ideal for multiple fluid types
No minimum operating pressure requirement provides versatile installation options
Durable brass and stainless steel construction ensures longevity
Complies with Pressure Equipment Directive 2014/68/EU for safety
Fast response times ranging from 15 to 120 ms for quick operation
Wide temperature range of -20°C to +85°C accommodates diverse applications
Flexible electrical options available for optimal compatibility
Moulded IP65 enclosure protects against environmental factors
Mounting position is unrestricted, simplifying installation
No minimum operating pressure requirement provides versatile installation options
Durable brass and stainless steel construction ensures longevity
Complies with Pressure Equipment Directive 2014/68/EU for safety
Fast response times ranging from 15 to 120 ms for quick operation
Wide temperature range of -20°C to +85°C accommodates diverse applications
Flexible electrical options available for optimal compatibility
Moulded IP65 enclosure protects against environmental factors
Mounting position is unrestricted, simplifying installation
