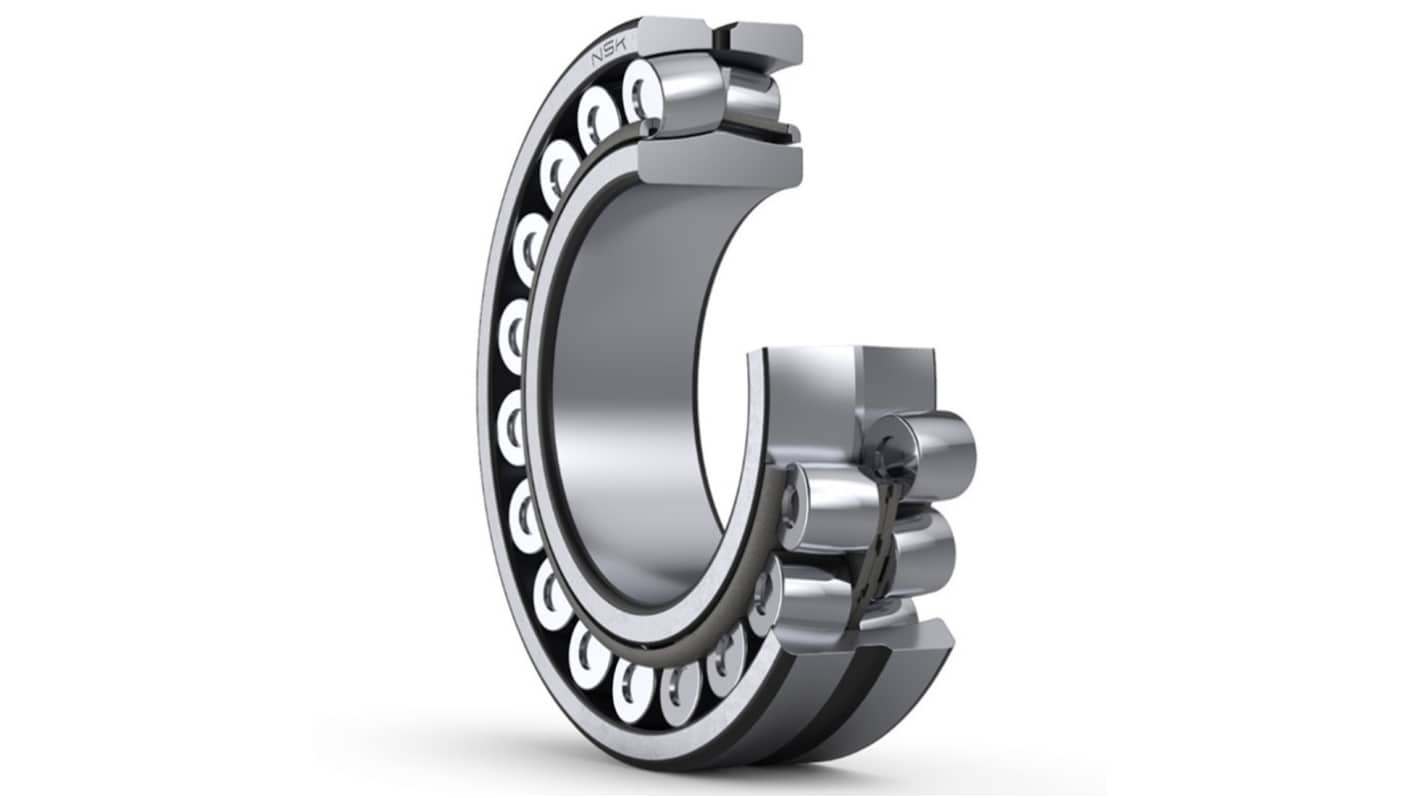

NSK 22213EAE4 Straight 65 mm ID Spherical Roller Bearing, 120 mm OD
- RS Stock No.:
- 643-959
- Mfr. Part No.:
- 22213EAE4
- Brand:
- NSK
Subtotal (1 unit)*
£104.55
(exc. VAT)
£125.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £104.55 |
*price indicative
- RS Stock No.:
- 643-959
- Mfr. Part No.:
- 22213EAE4
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 65mm | |
| Race Width | 31mm | |
| Bore Type | Straight | |
| Cage Material | Steel | |
| Maximum Speed - Grease | 4300rpm | |
| Dynamic Load Rating | 221000N | |
| End Type | Open | |
| Standards/Approvals | ISO 15312 | |
| Series | 222 | |
| Maximum Speed - Oil | 5300rpm | |
| Internal Clearance | C0 | |
| Static Load Rating | 230000N | |
| Number of Rows | 2 | |
| Bearing Material | Steel | |
| Outside Diameter | 120mm | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 65mm | ||
Race Width 31mm | ||
Bore Type Straight | ||
Cage Material Steel | ||
Maximum Speed - Grease 4300rpm | ||
Dynamic Load Rating 221000N | ||
End Type Open | ||
Standards/Approvals ISO 15312 | ||
Series 222 | ||
Maximum Speed - Oil 5300rpm | ||
Internal Clearance C0 | ||
Static Load Rating 230000N | ||
Number of Rows 2 | ||
Bearing Material Steel | ||
Outside Diameter 120mm | ||
Non Compliant
- COO (Country of Origin):
- JP
The NSK Spherical roller bearing with a cylindrical 65 mm bore, 120 mm outer diameter, and 31 mm width, designed for high radial loads and moderate axial loads in compact industrial setups. Its steel cage and open design enable efficient lubrication via grooves and holes, while the self-aligning geometry compensates for shaft deflection and mounting inaccuracies. It ensures consistent performance across grease, oil-bath, and forced oil circulation systems.
ISO 15312 compliant
Supports dynamic and static load
Easy maintenance with lubrication access
