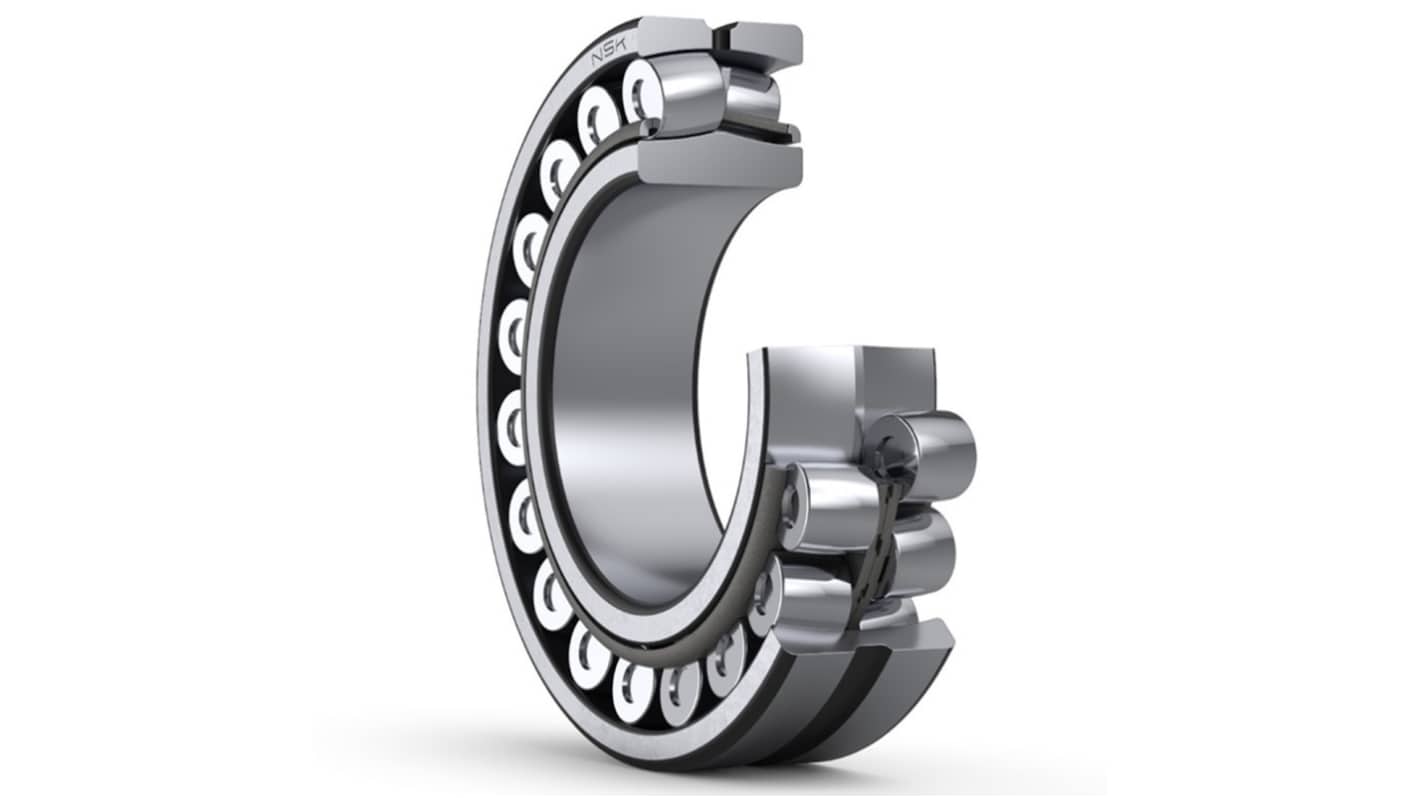

NSK 22313EAKE4C3 Straight 65 mm ID Spherical Roller Bearing, 140 mm OD
- RS Stock No.:
- 643-760
- Mfr. Part No.:
- 22313EAKE4C3
- Brand:
- NSK
Subtotal (1 unit)*
£189.17
(exc. VAT)
£227.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £189.17 |
*price indicative
- RS Stock No.:
- 643-760
- Mfr. Part No.:
- 22313EAKE4C3
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 65mm | |
| Race Width | 48mm | |
| Bore Type | Straight | |
| Cage Material | Steel | |
| Maximum Speed - Grease | 3200rpm | |
| Outside Diameter | 140mm | |
| Internal Clearance | C3 | |
| Static Load Rating | 380000N | |
| Number of Rows | 2 | |
| Bearing Material | Steel | |
| Maximum Speed - Oil | 4000rpm | |
| Dynamic Load Rating | 375000N | |
| End Type | Open | |
| Standards/Approvals | ISO 15312 | |
| Series | 223 | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 65mm | ||
Race Width 48mm | ||
Bore Type Straight | ||
Cage Material Steel | ||
Maximum Speed - Grease 3200rpm | ||
Outside Diameter 140mm | ||
Internal Clearance C3 | ||
Static Load Rating 380000N | ||
Number of Rows 2 | ||
Bearing Material Steel | ||
Maximum Speed - Oil 4000rpm | ||
Dynamic Load Rating 375000N | ||
End Type Open | ||
Standards/Approvals ISO 15312 | ||
Series 223 | ||
Non Compliant
- COO (Country of Origin):
- JP
The NSK Spherical roller bearing with a 65 mm tapered bore, 140 mm outer diameter, and 48 mm width, designed for high radial loads and moderate axial forces. Its C3 internal clearance provides extra space for thermal expansion, making it suitable for high-speed or high-temperature applications. With a steel cage, open design, and lubrication grooves, it ensures smooth operation and easy mounting using adapter or withdrawal sleeves.
ISO 15312 compliant
Supports dynamic and static load
Easy maintenance with lubrication access
