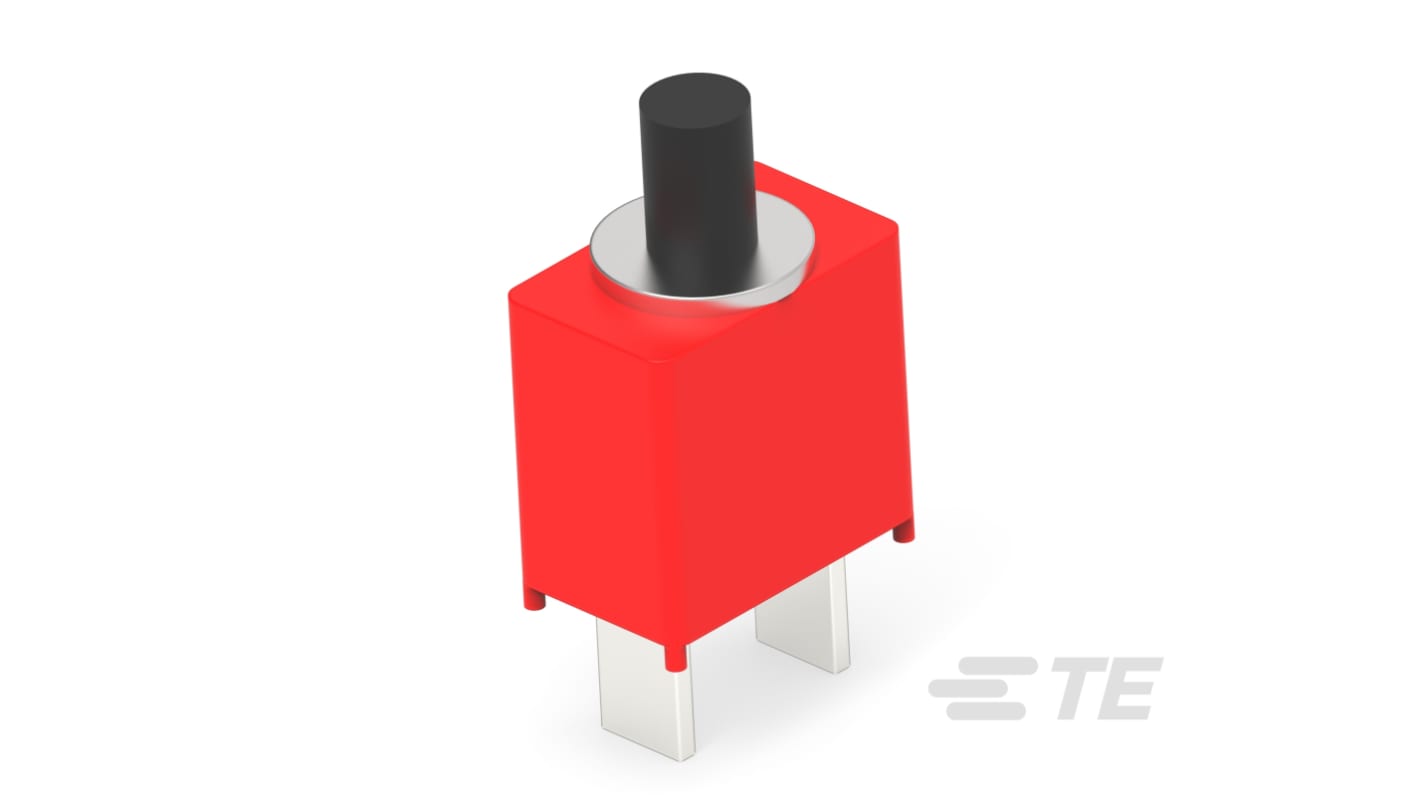

TE Connectivity Alcoswitch Series Push Button Switch, On-Off, Bushing, SPST, IP67, 28 V dc 28 V ac
- RS Stock No.:
- 470-760
- Distrelec Article No.:
- 304-52-808
- Mfr. Part No.:
- 2267072-4
- Brand:
- TE Connectivity
Subtotal (1 bag of 100 units)*
£237.86
(exc. VAT)
£285.43
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £237.86 | £2.379 |
*price indicative
- RS Stock No.:
- 470-760
- Distrelec Article No.:
- 304-52-808
- Mfr. Part No.:
- 2267072-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Actuator Colour | Black | |
| Switch Operation | On-Off | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | Alcoswitch | |
| Mount Type | Bushing | |
| Contact Configuration | SPST | |
| Terminal Type | Through Hole | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -30°C | |
| Contact DC Voltage | 28V dc | |
| Actuator Style | Round | |
| Contact AC Voltage | 28V ac | |
| Switch Configuration | SPST | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 3A | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant with Exemptions, EU RoHS Directive 2011/65/EU Compliant with Exemptions | |
| Length | 3.9mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Actuator Colour Black | ||
Switch Operation On-Off | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series Alcoswitch | ||
Mount Type Bushing | ||
Contact Configuration SPST | ||
Terminal Type Through Hole | ||
IP Rating IP67 | ||
Minimum Operating Temperature -30°C | ||
Contact DC Voltage 28V dc | ||
Actuator Style Round | ||
Contact AC Voltage 28V ac | ||
Switch Configuration SPST | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 3A | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant with Exemptions, EU RoHS Directive 2011/65/EU Compliant with Exemptions | ||
Length 3.9mm | ||
- COO (Country of Origin):
- TW
The TE Connectivity General purpose push button switch offers a reliable solution for various applications requiring precise user input. With an ergonomic extended actuator, this switch provides user-friendly operation and ensures long-lasting performance. Designed for printed circuit integration, it boasts a robust build that withstands diverse operating conditions. This switch features a non-tactile feedback mechanism, perfect for environments that demand a seamless user experience. Compliant with essential industry standards, it is ideal for both commercial and industrial uses, ensuring safety and effectiveness in every action.
Optimised for printed circuit board connections enhancing ease of installation
Extended actuator profile allows for convenient operation in tight spaces
Designed to operate within a broad temperature range for versatile deployment
Non tactile feedback ensures smooth operation without interruption
Constructed from durable materials to withstand daily wear and tear
Low halogen content aligns with environmental safety regulations
Suitable for wave soldering processes streamlining manufacturing efficiency
