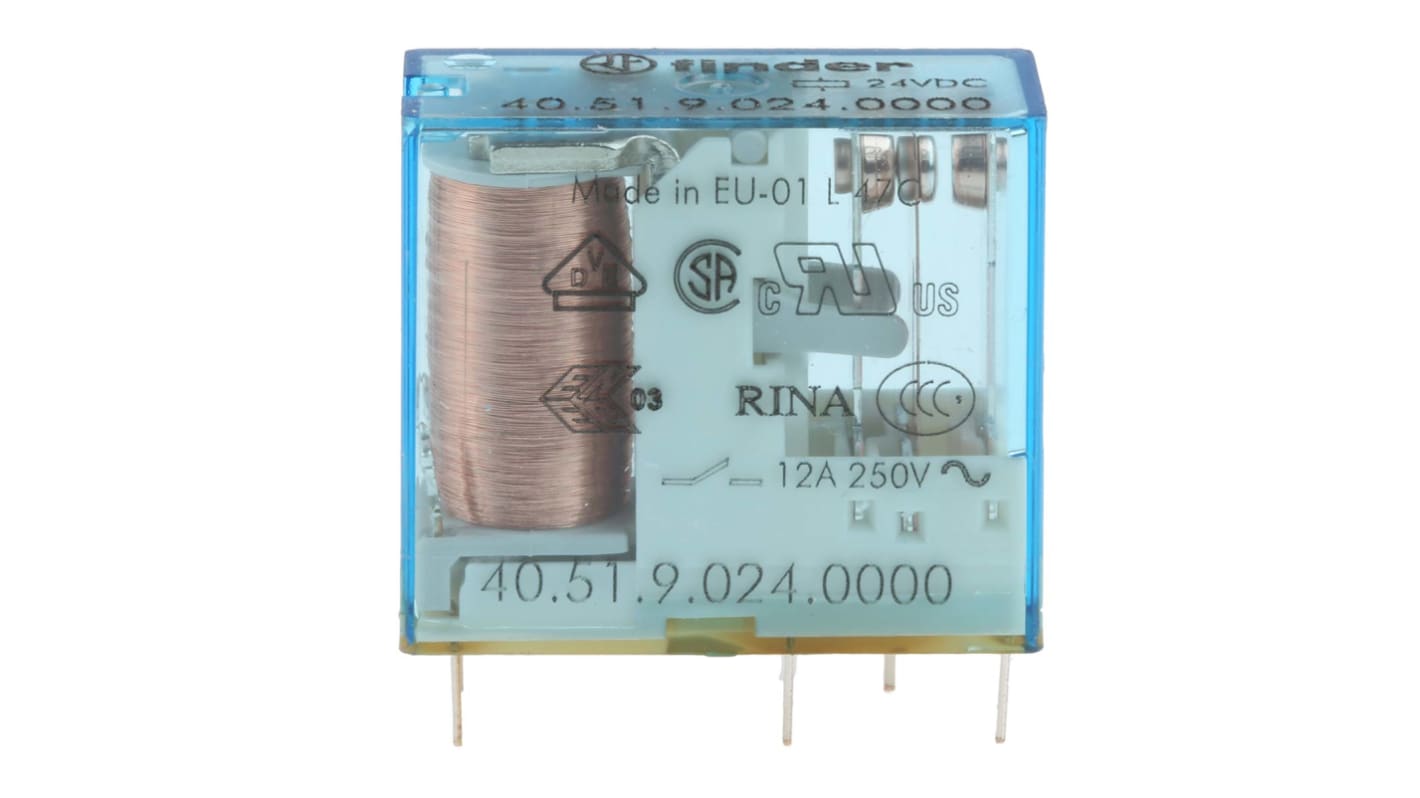

Finder PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT

RS Stock No.:: 382-9731
Mfr. Part No.:: 40.51.9.024.0000
Brand:: Finder

Finder PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT

107 In stock - FREE next working day delivery available

534 available from Europe for delivery within 1 working day(s).

Added

Price Each

£4.68

(exc. VAT)

£5.62

(inc. VAT)

Units	Per unit
1 - 24	£4.68
25 - 49	£4.13
50 - 99	£3.99
100 - 249	£3.65
250 +	£3.05

RS Stock No.:: 382-9731
Mfr. Part No.:: 40.51.9.024.0000
Brand:: Finder

Technical Reference

Legislation and Compliance

COO (Country of Origin):: IT

Product Details

Finder SPDT Miniature PCB Relay

The Finder 40 series PCB mount non-latching relay has a contact configuration of SPDT. It is actuated with a 24VDC coil voltage and 10A switching current.

Features and Benefits

Insulation coil to contact is 6kV
Coil power is 500mW
Coil resistance is 900ohm
Pin pitch is 5mm
Pin length 5mm
Cadmium-free contact material
8mm creepage and clearance
Operating temperature ranging between -40°C and 85°C
Through hole terminal type

Applications

Automation for blinds, grilles and shutters
Door and gate openers
Electronic circuit boards
Medical and dentistry control panels
Panels for electrical distribution
Toys
Vending machines

Certifications

CSA certified
GOST approved
IMQ approved
RINA approved
SEV approved
UL approved
US approved
VDE approved

Specifications

Attribute	Value
Coil Voltage	24V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	400V ac
Length	29mm
Coil Resistance	900Ω
Coil Power	500mW
Series	40 Series
Height	25mm
Contact Material	Silver Alloy
Life	20000000 (Electrical) cycles
Depth	12.4mm
Maximum Operating Temperature	+85°C
Isolation Coil To Contact	6kV
Minimum Operating Temperature	-40°C
Maximum Switching Power AC	2.5 kVA
Application	PCB
