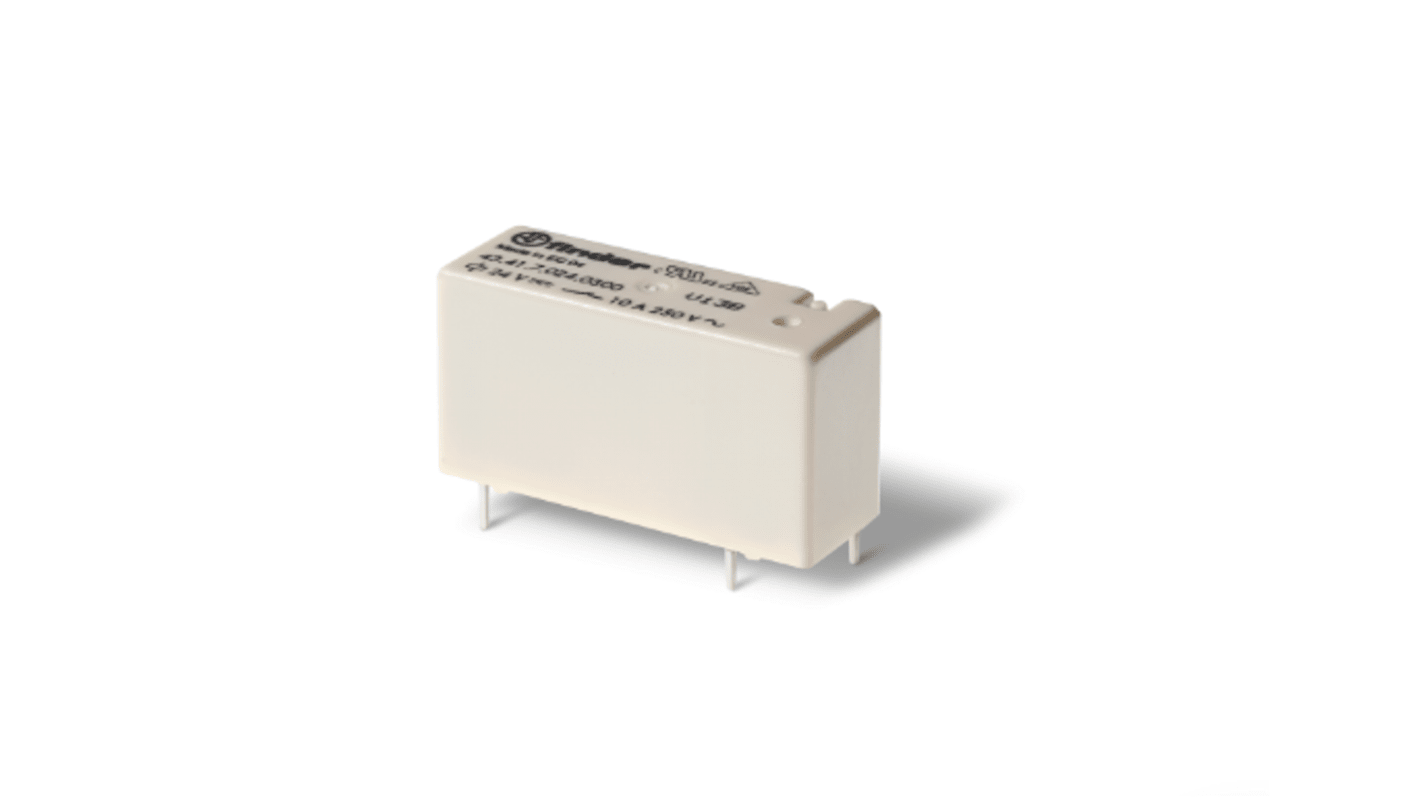

Finder PCB Relay, 24V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 257-7375
- Mfr. Part No.:
- 434170245001
- Brand:
- Finder
Subtotal (1 unit)*
£9.01
(exc. VAT)
£10.81
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 23 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.01 |
*price indicative
- RS Stock No.:
- 257-7375
- Mfr. Part No.:
- 434170245001
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 24V dc | |
| Product Type | Relay | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | 43 | |
| Switching Current | 10A | |
| Switching AC Voltage | 400V ac | |
| Switching Power | 4kVA | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 220V dc | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 9.2kΩ | |
| Length | 30.2mm | |
| Standards/Approvals | EAC, ENEC 03 | |
| Width | 10.2mm | |
| Height | 15.4mm | |
| Coil Power | 0.4W | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Product Type Relay | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series 43 | ||
Switching Current 10A | ||
Switching AC Voltage 400V ac | ||
Switching Power 4kVA | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 220V dc | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 9.2kΩ | ||
Length 30.2mm | ||
Standards/Approvals EAC, ENEC 03 | ||
Width 10.2mm | ||
Height 15.4mm | ||
Coil Power 0.4W | ||
Contact Material Silver Nickel Alloy | ||
RoHS Status: Exempt
The Finder Miniature PCB Relay has cadmium-free contact material. It meets EN 60335-1 glow wire requirements. 35 mm rail mounting with screw, screw less or push-in terminals.
Mounted on sockets ≤ 10 A
8 mm creep age and clearance
