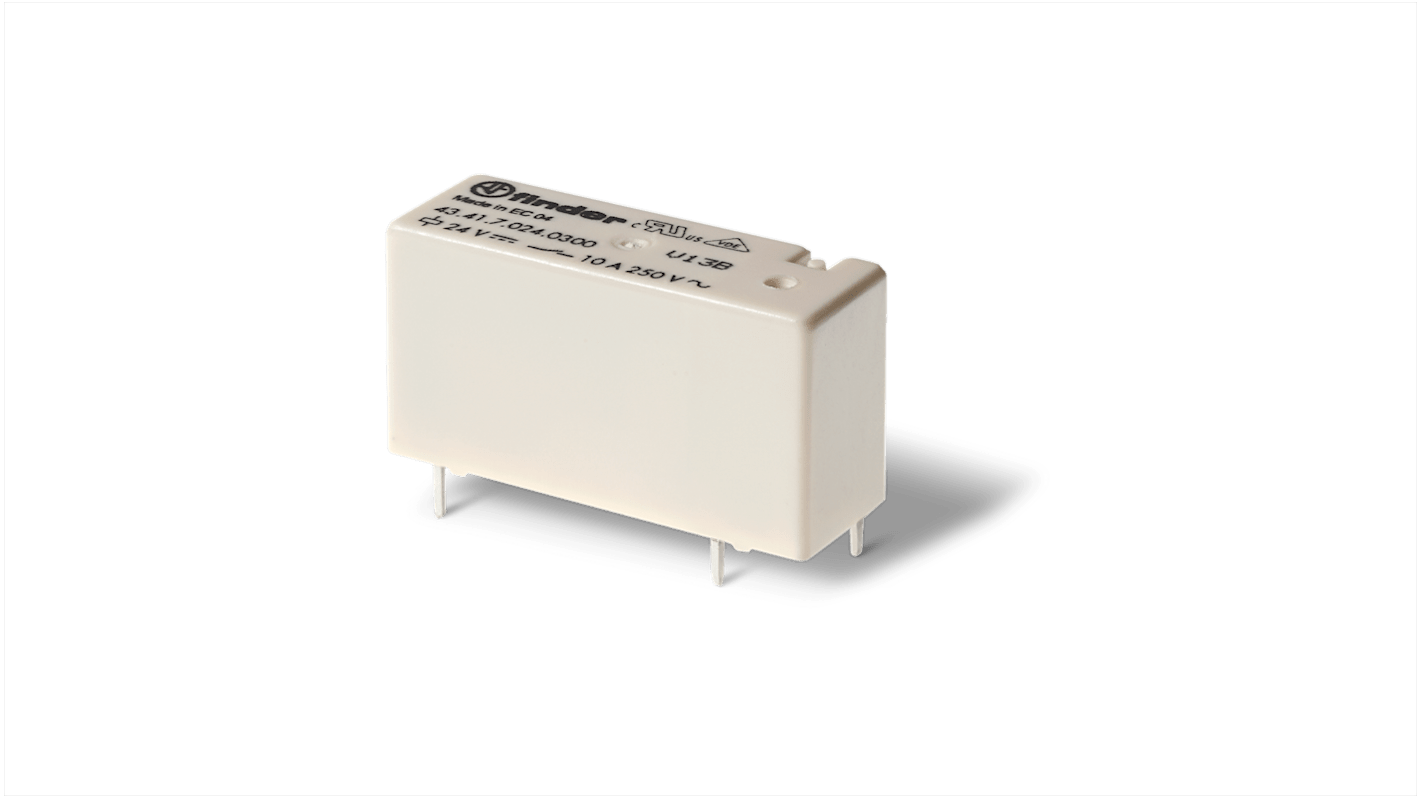

Finder PCB Relay, 24V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 248-1374
- Mfr. Part No.:
- 434170245000
- Brand:
- Finder
Subtotal (1 pack of 20 units)*
£167.38
(exc. VAT)
£200.86
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 + | £8.369 | £167.38 |
*price indicative
- RS Stock No.:
- 248-1374
- Mfr. Part No.:
- 434170245000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | 43 | |
| Terminal Type | Solder | |
| Switching Current | 10A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 350Ω | |
| Width | 12mm | |
| Standards/Approvals | UL, RoHS, EAC, CE, VDE | |
| Coil Power | 0.5W | |
| Height | 15mm | |
| Length | 29mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series 43 | ||
Terminal Type Solder | ||
Switching Current 10A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 350Ω | ||
Width 12mm | ||
Standards/Approvals UL, RoHS, EAC, CE, VDE | ||
Coil Power 0.5W | ||
Height 15mm | ||
Length 29mm | ||
Contact Material Silver Nickel Alloy | ||
- COO (Country of Origin):
- ES
The Finder's 43 series is low profile direct or PCB mount PCB relays have one pole and can be used in medical and dentistry, alarm systems, air conditioners, Burners, boilers and furnaces like applications.
Very high coil-contact isolation 10 mm, 6 kV (1.2/50 μs)
Cadmium free contacts (preferred version)
Flux proof RT II standard, (RT III option)
Have one pole
