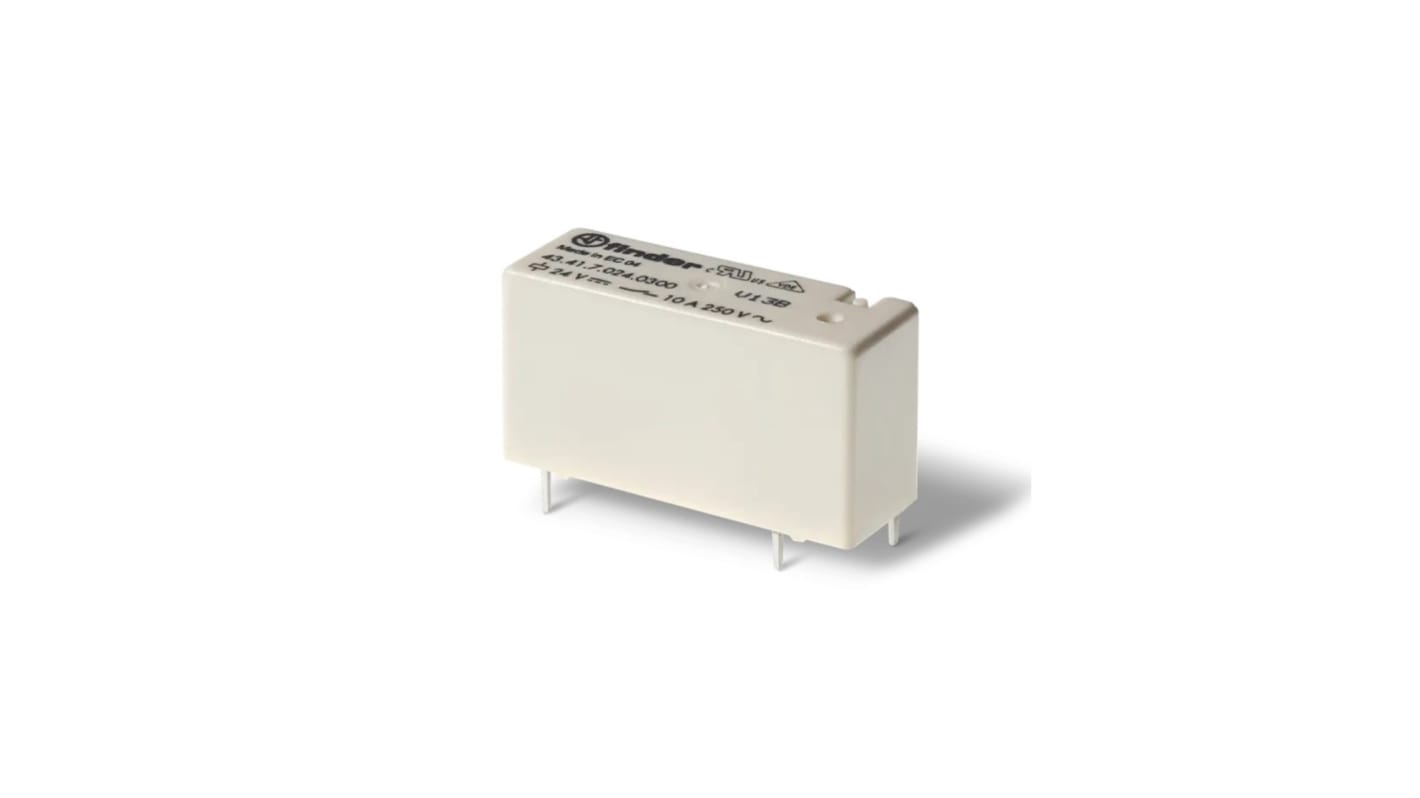

Finder PCB Power Relay, 24V dc Coil, 10A Switching Current, SPDT

RS Stock No.:: 282-6656
Mfr. Part No.:: 434170244000
Brand:: Finder

Finder PCB Power Relay, 24V dc Coil, 10A Switching Current, SPDT

Subtotal (1 unit)*

£5.12

(exc. VAT)

£6.14

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 324 unit(s) shipping from 27 April 2026
Plus 45 unit(s) shipping from 27 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£5.12

*price indicative

RS Stock No.:: 282-6656
Mfr. Part No.:: 434170244000
Brand:: Finder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Product Type	Power Relay
	Coil Voltage	24V dc
	Contact Configuration	SPDT
	Mount Type	PCB
	Series	43
	Switching Current	10A
	Switching AC Voltage	400V ac
	Minimum Operating Temperature	-40°C
	Coil Resistance	2.2kΩ
	Maximum Operating Temperature	85°C
	Width	10.2mm
	Height	15.4mm
	Coil Power	0.25W
	Length	30.2mm
	Standards/Approvals	No
	Contact Material	Silver Tin Oxide

	Select all
	Brand Finder
	Product Type Power Relay
	Coil Voltage 24V dc
	Contact Configuration SPDT
	Mount Type PCB
	Series 43
	Switching Current 10A
	Switching AC Voltage 400V ac
	Minimum Operating Temperature -40°C
	Coil Resistance 2.2kΩ
	Maximum Operating Temperature 85°C
	Width 10.2mm
	Height 15.4mm
	Coil Power 0.25W
	Length 30.2mm
	Standards/Approvals No
	Contact Material Silver Tin Oxide

Datasheet - 434170244000

COO (Country of Origin):: ES

Finder Series 43 Power Relay, 24V DC Coil Voltage, 10A Switching Current - 434170244000

This power relay is designed for efficient operation in various electrical applications. With a coil voltage of 24V DC and a compact PCB mounting style, it ensures seamless integration into diverse systems. The relay features a single pole and a high switching current capability of 10A, making it suitable for reliable performance in demanding environments.

Features & Benefits

• SPDT configuration offers versatile switching functions

• Operates at a maximum switching voltage of 400V AC

• Suitable for DC switching applications up to 48V

• Flux-proof design meets RT II protection standards

Applications

• Used in medical and dental equipment

• Ideal for alarm systems and air conditioning units

• Utilised in electric toys and games

• Suitable for door and gate openers

• Effective in vending machines and electronic circuit boards

What are the electrical specifications for this relay?

The relay operates at a coil voltage of 24V DC and supports a maximum switching voltage of 400V AC. It can handle a maximum switching current of 10A for AC and 15A peak.

How does this relay perform in high-temperature environments?

It can operate in temperatures ranging from -40°C to +85°C, ensuring reliability in varied conditions.

What is the expected lifespan of this relay under normal operating conditions?

The relay is rated for 100,000 electrical cycles at the rated load, ensuring long-term reliability and durability.
