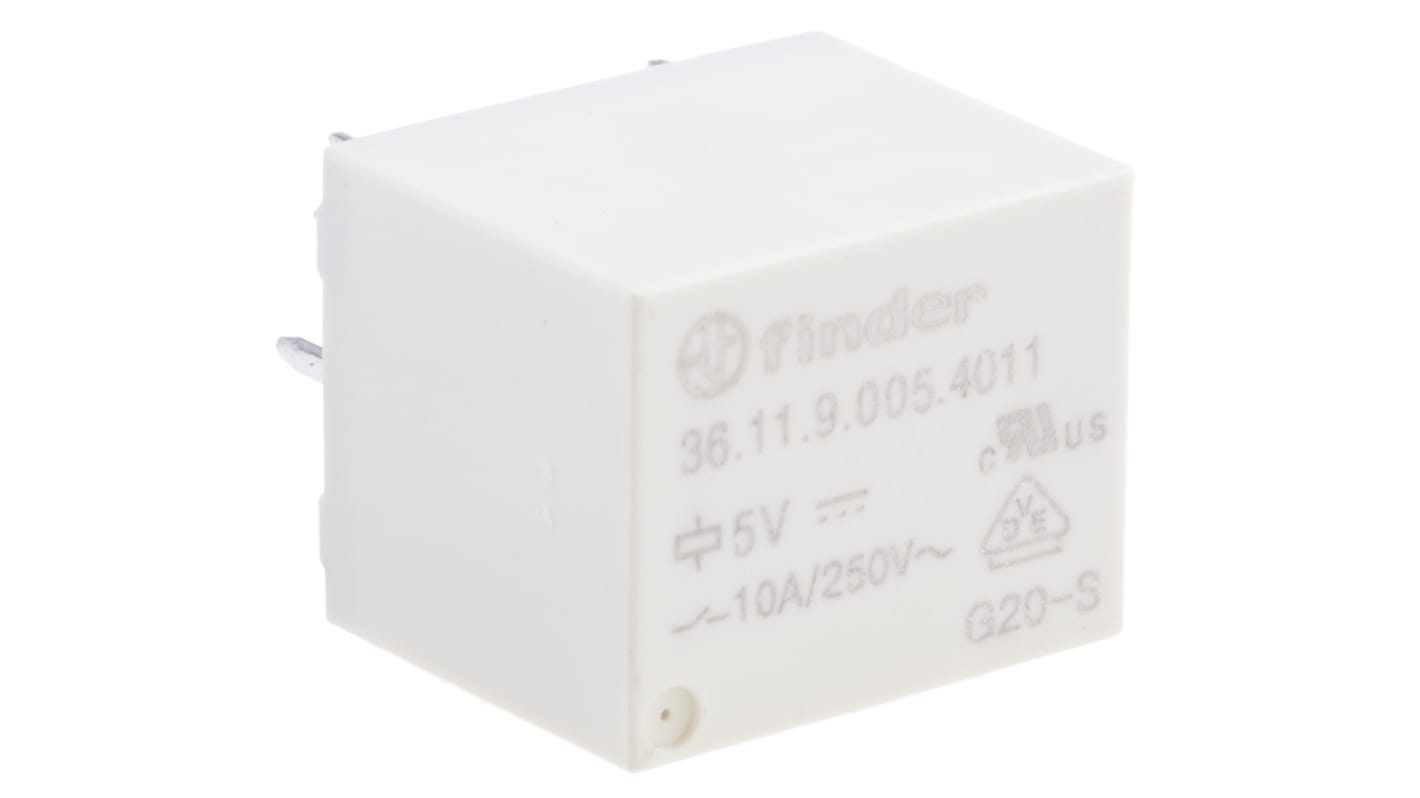

Finder PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 793-3768
- Mfr. Part No.:
- 36.11.9.005.4011
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£2.58
(exc. VAT)
£3.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 139 unit(s) ready to ship from another location
- Plus 113 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £2.58 |
10 - 24 | £2.37 |
25 - 49 | £2.28 |
50 - 99 | £2.19 |
100 + | £2.02 |
*price indicative
- RS Stock No.:
- 793-3768
- Mfr. Part No.:
- 36.11.9.005.4011
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 5V dc | |
Contact Configuration | SPDT | |
Mounting Type | PCB Mount | |
Switching Current | 10A | |
Number of Poles | 1 | |
Latching | No | |
Series | 36 Series | |
Terminal Type | Through Hole | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 48V dc | |
Length | 19mm | |
Coil Resistance | 70Ω | |
Coil Power | 360mW | |
Maximum Operating Temperature | +85°C | |
Contact Material | Silver Alloy | |
Height | 15mm | |
Depth | 15.5mm | |
Life | 50 x 10³ Operations | |
Isolation Coil To Contact | 3kV | |
Minimum Operating Temperature | -40°C | |
Maximum Switching Power DC | 360mW | |
Application | Power | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 5V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 1 | ||
Latching No | ||
Series 36 Series | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 48V dc | ||
Length 19mm | ||
Coil Resistance 70Ω | ||
Coil Power 360mW | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver Alloy | ||
Height 15mm | ||
Depth 15.5mm | ||
Life 50 x 10³ Operations | ||
Isolation Coil To Contact 3kV | ||
Minimum Operating Temperature -40°C | ||
Maximum Switching Power DC 360mW | ||
Application Power | ||
- COO (Country of Origin):
- CN
Finder 36 series Power Relay, 5V DC Coil Voltage, 10A Switching Current - 36.11.9.005.4011
This power relay is a compact PCB mount relay designed to handle high voltage applications. With a coil voltage of 5V DC and a maximum switching current of 10A, the device fits perfectly into automation and control systems. Its dimensions of 19mm x 15.5mm x 15mm allow for versatile installations in confined spaces.
Features & Benefits
• Suitable for 10A switching, meeting high current demands
• SPDT configuration allows versatile circuit operations
• PCB mount design ensures ease of integration
• Enhanced insulation with 3 kV dielectric strength
• Optimised for a wide temperature range from -40 °C to +85 °C
• Fabricated with silver alloy contacts for superior conductivity
• SPDT configuration allows versatile circuit operations
• PCB mount design ensures ease of integration
• Enhanced insulation with 3 kV dielectric strength
• Optimised for a wide temperature range from -40 °C to +85 °C
• Fabricated with silver alloy contacts for superior conductivity
Applications
• Ideal for use in industrial automation systems
• Employed in control circuits for machinery operation
• Utilised in consumer electronics to switch high voltages
• Engaged in mechanical requiring reliable relay functionality
• Employed in control circuits for machinery operation
• Utilised in consumer electronics to switch high voltages
• Engaged in mechanical requiring reliable relay functionality
What is the maximum voltage that can be switched by this relay?
The relay can handle up to 250V AC and 48V DC, making it suitable for a variety of high voltage applications in industrial settings.
How does the relay perform under extreme temperature conditions?
The device operates effectively within a temperature range of -40 °C to +85 °C, maintaining functionality in diverse environments typical of industrial applications.
What is the expected lifespan of this product?
It has a mechanical life of 10 million cycles and an electrical life of 50,000 operations at rated load, ensuring longevity and dependability in your systems.
What is the recommended coil resistance for this relay?
The coil resistance is rated at 70 Ω, allowing for efficient operation at the specified coil voltage of 5V DC.
Can this relay be used in applications requiring latching functionality?
This relay does not feature latching capabilities, making it best suited for on/off applications where continuous power is not necessary.
