Finder PCB Relay, 9V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 248-1787
- Mfr. Part No.:
- 361190094011
- Brand:
- Finder
Subtotal (1 pack of 25 units)*
£62.725
(exc. VAT)
£75.275
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 + | £2.509 | £62.73 |
*price indicative
- RS Stock No.:
- 248-1787
- Mfr. Part No.:
- 361190094011
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Relay | |
| Coil Voltage | 9V dc | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | 36 | |
| Terminal Type | Plug-In | |
| Switching Current | 10A | |
| Switching AC Voltage | 277V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Coil Power | 0.36W | |
| Width | 15.2mm | |
| Height | 15.5mm | |
| Length | 18.8mm | |
| Standards/Approvals | VDE, EAC | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Relay | ||
Coil Voltage 9V dc | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series 36 | ||
Terminal Type Plug-In | ||
Switching Current 10A | ||
Switching AC Voltage 277V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Coil Power 0.36W | ||
Width 15.2mm | ||
Height 15.5mm | ||
Length 18.8mm | ||
Standards/Approvals VDE, EAC | ||
Contact Material Silver Tin Oxide | ||

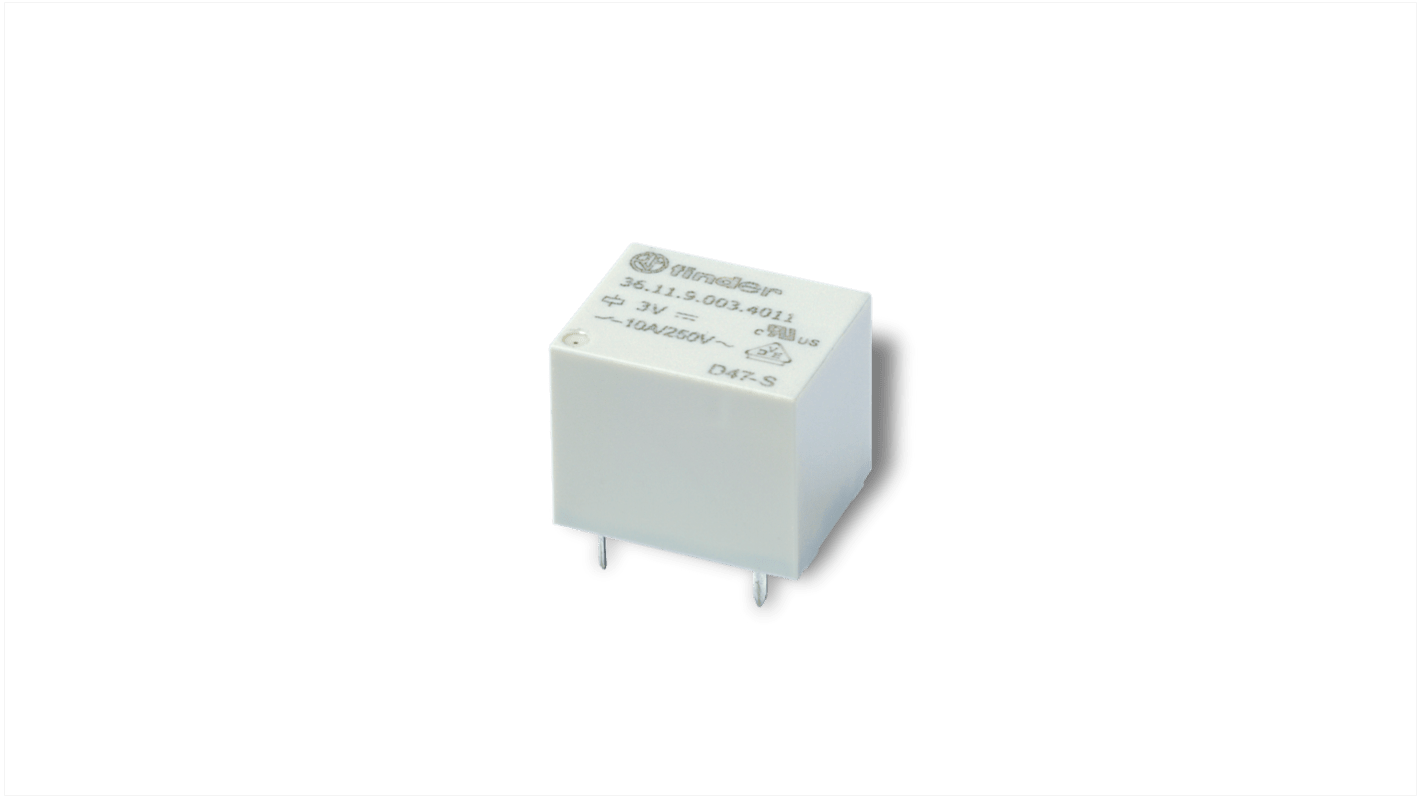

The Finder's makes this series 36 miniature relay, it is PCB mount relay with 1 pole (10 A). It has a DC coil and works with 9 Vdc of coil voltage. This is a wash tight version.
It has 1 CO (SPDT) contact
It has standard AgSnO2 contacts
