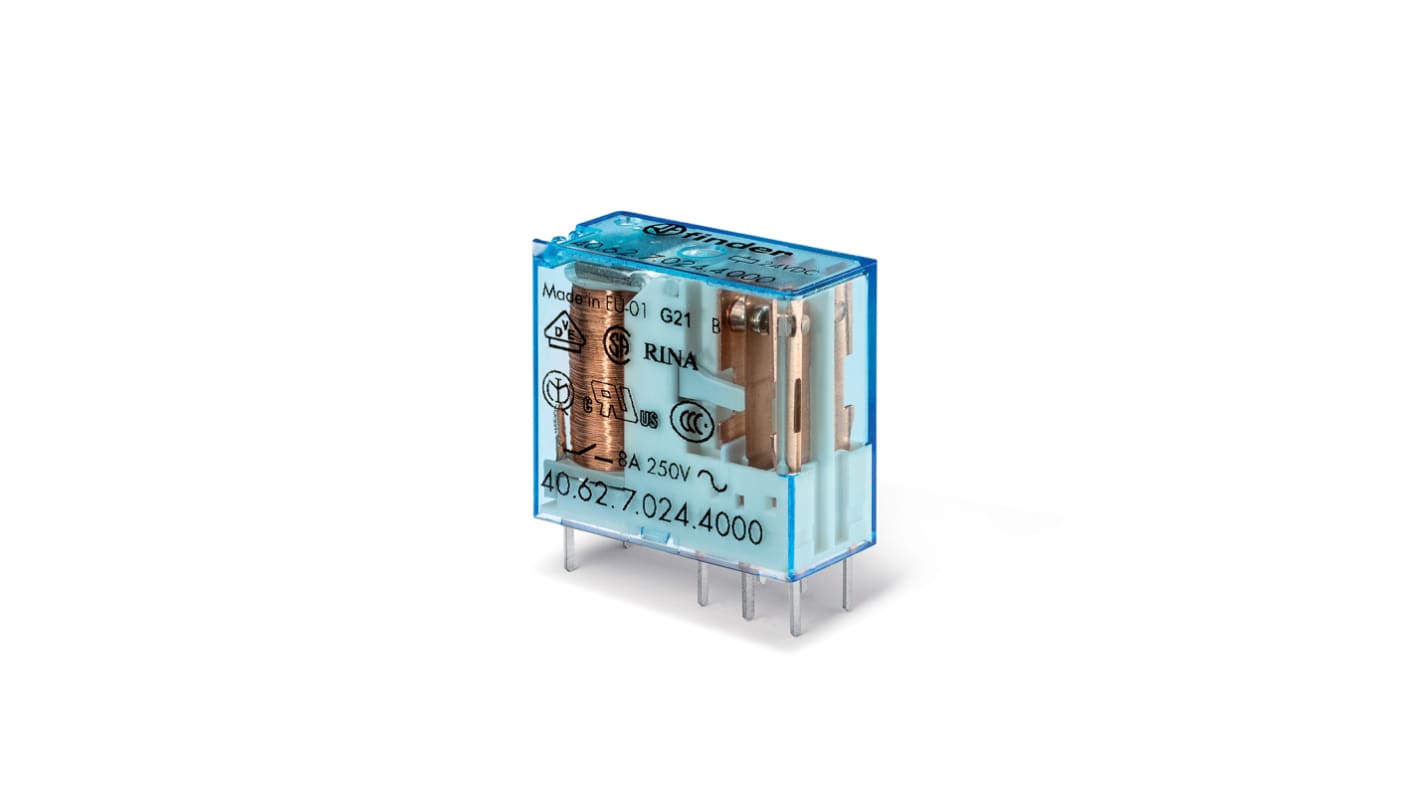

Finder PCB Mount Relay, 24V dc Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 182-9781
- Distrelec Article No.:
- 303-96-555
- Mfr. Part No.:
- 40.62.7.024.4000
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£9.27
(exc. VAT)
£11.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 393 unit(s) ready to ship
- Plus 640 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £9.27 |
25 - 49 | £8.15 |
50 - 99 | £7.88 |
100 - 249 | £7.24 |
250 + | £6.03 |
*price indicative
- RS Stock No.:
- 182-9781
- Distrelec Article No.:
- 303-96-555
- Mfr. Part No.:
- 40.62.7.024.4000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Switching Current | 10A | |
Number of Poles | 2 | |
Latching | No | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 400V | |
Length | 29mm | |
Coil Resistance | 900Ω | |
Coil Power | 650mW | |
Contact Material | Silver Alloy | |
Height | 25mm | |
Life | 10 x 10^6 cycles | |
Depth | 12.4mm | |
Isolation Coil To Contact | 6kV | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Series | 40 Series | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V | ||
Length 29mm | ||
Coil Resistance 900Ω | ||
Coil Power 650mW | ||
Contact Material Silver Alloy | ||
Height 25mm | ||
Life 10 x 10^6 cycles | ||
Depth 12.4mm | ||
Isolation Coil To Contact 6kV | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Series 40 Series | ||
- COO (Country of Origin):
- IT
Finder Series 40 Power Relay, DPDT Contact Configuration, 24V DC Coil Voltage - 40.62.7.024.4000
This power relay is designed for automated systems, providing dependable switching capabilities between circuits. It operates on a 24V DC power supply and can handle a maximum switching voltage of 400V AC, making it suitable for both high and low voltage applications. The DPDT relay is compatible with various industry standards, integrating well into different automation and control systems.
Features & Benefits
• Dual pole switching for versatile applications
• Handles switching current up to 10A
• Constructed with silver alloy contacts for improved durability
• PCB mount design for easy installation
• Operates within a temperature range of -40°C to +85°C
• Provides strong electrical isolation of 6kV between coil and contacts
• Handles switching current up to 10A
• Constructed with silver alloy contacts for improved durability
• PCB mount design for easy installation
• Operates within a temperature range of -40°C to +85°C
• Provides strong electrical isolation of 6kV between coil and contacts
Applications
• Used in control panels for electronic circuit boards
• Ideal for automation in blinds, grilles, and shutters
• Suitable for vending machines, ensuring effective operational control
• Commonly utilised in door and gate openers for secure access
• Applicable in medical and dental equipment
• Ideal for automation in blinds, grilles, and shutters
• Suitable for vending machines, ensuring effective operational control
• Commonly utilised in door and gate openers for secure access
• Applicable in medical and dental equipment
How can I install it securely on a PCB?
You can solder the relay directly onto your PCB or use a compatible socket for easier installation and maintenance.
What is the recommended voltage range for this relay?
It effectively operates within a nominal voltage of 24V DC, providing optimal performance across various applications.
Can it withstand high temperatures?
Yes, it functions efficiently in ambient temperatures ranging from -40°C to +85°C, making it appropriate for diverse environments.
Is this relay compatible with automation systems?
It is specifically designed for use in automation systems, offering dependable switching for control processes.
What maintenance is required for optimal performance?
Regular inspections for solder integrity and dust accumulation are advisable to maintain functionality and ensure longevity.
