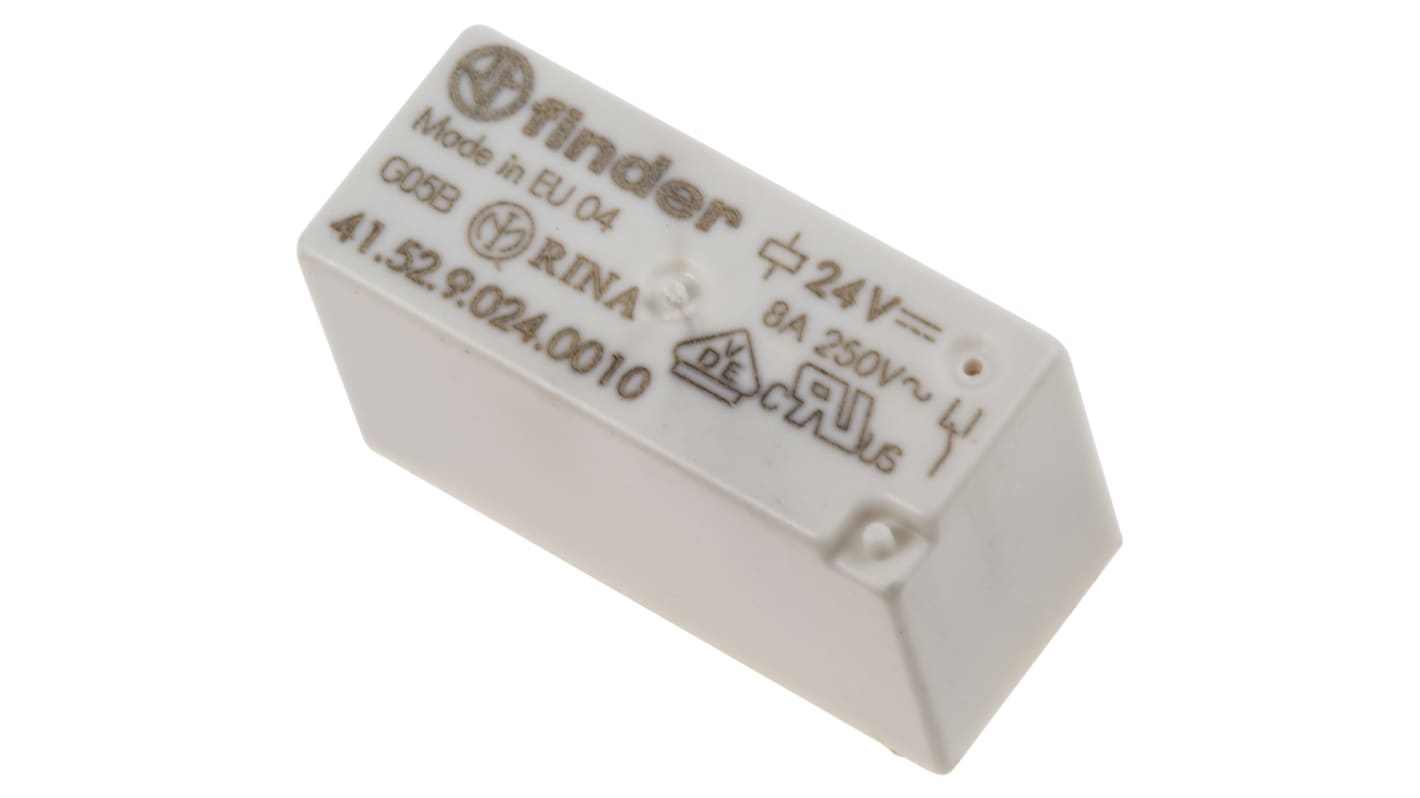

Finder PCB Relay, 24V dc Coil, 8A Switching Current, DPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£6.76

(exc. VAT)

£8.11

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 600 unit(s) ready to ship
  • Plus 419 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 24£6.76
25 - 49£5.93
50 - 99£5.75
100 - 249£5.28
250 +£4.40

*price indicative

RS Stock No.:
164-151
Distrelec Article No.:
137-44-379
Mfr. Part No.:
41.52.9.024.0010
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Product Type

Relay

Coil Voltage

24V dc

Contact Configuration

DPDT

Mount Type

PCB

Series

41

Terminal Type

Solder

Switching Current

8A

Switching AC Voltage

400V ac

Switching Power

2kVA

Minimum Operating Temperature

-40°C

Coil Resistance

1.4kΩ

Maximum Operating Temperature

85°C

Coil Power

650mW

Height

15.7mm

Length

29mm

Standards/Approvals

RoHS

Width

12.5mm

Contact Material

Silver Alloy

COO (Country of Origin):
ES

Finder Series 41 Power Relay, DPDT Contact Configuration, 24V DC Coil Voltage - 41.52.9.024.0010


This power relay is designed for automation and control systems. With a dual pole double throw (DPDT) configuration, it offers flexible circuit control. Its compact design enables efficient integration into printed circuit boards (PCBs) while maintaining performance across various environments. The relay operates on a 24 V DC coil voltage, making it suitable for commercial and industrial use.

Features & Benefits


• Utilises silver alloy contacts for enhanced conductivity

• Supports a maximum switching power of 2 kVA

• Designed for PCB mounting with through-hole terminals

• Operates within a temperature range of -40°C to +85°C

• Achieves a switching current of 8A

• Offers a coil resistance of 1440Ω, optimising power consumption

Applications


• Used in building automation for improved control

• Implemented in industrial robots for consistent operation

• Suitable for timers and lighting control systems

• Facilitates operation in vending machines

• Ideal for door and gate opening mechanisms

What are the advantages of using this relay in my projects?


It offers dependable performance and flexible circuit control options, enhancing project efficiency.

How is it mounted on a PCB?


It features through-hole terminals for straightforward integration.

What type of load can it handle?


It supports resistive and inductive loads, making it adaptable for various applications.

Is it suitable for outdoor applications?


Yes, it operates effectively within a wide temperature range, accommodating diverse environmental conditions.

How do I ensure proper installation?


Follow the specified terminal connections and ensure compatibility with circuit requirements.
