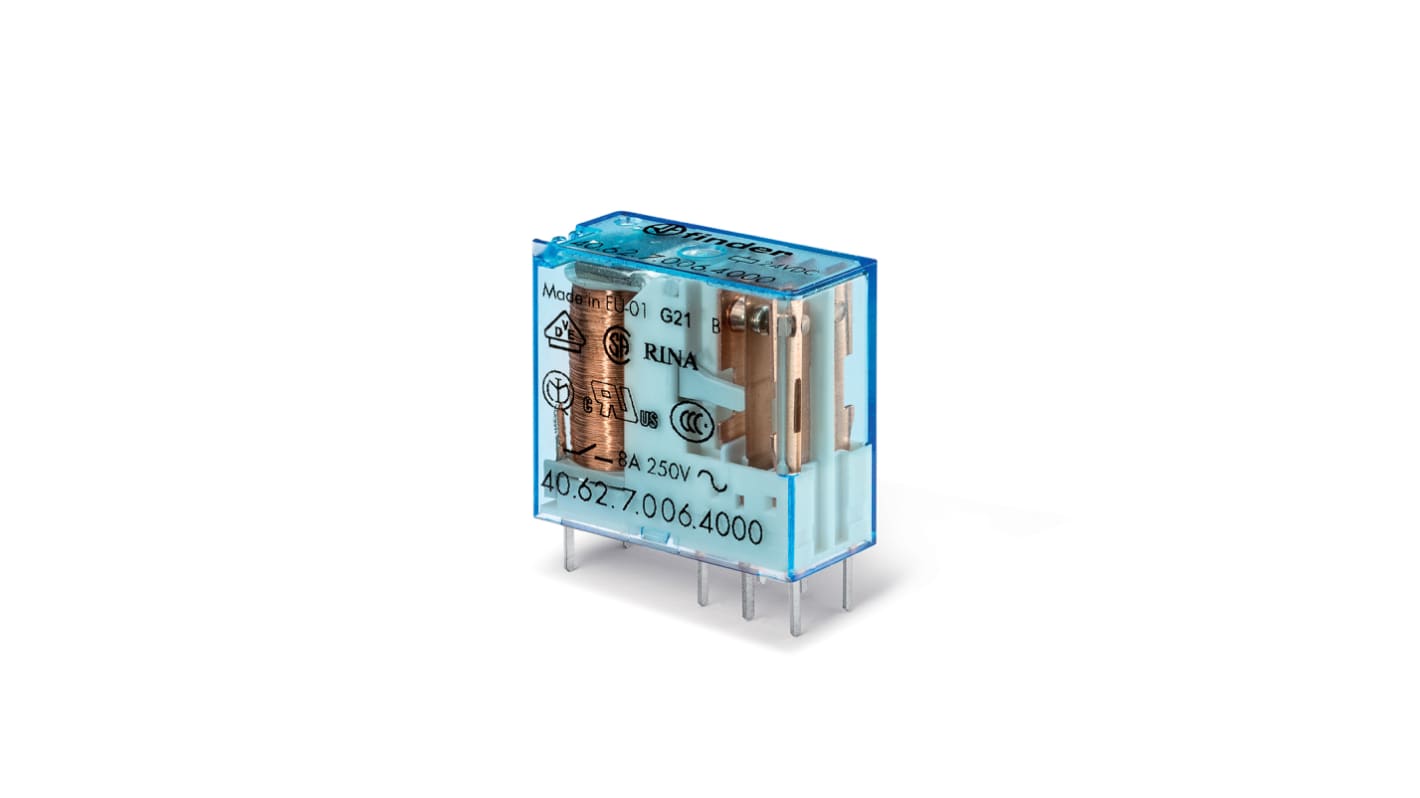

Finder PCB Mount Power Relay, 6V dc Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 182-9779
- Mfr. Part No.:
- 40.62.7.006.4000
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£10.72
(exc. VAT)
£12.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 48 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £10.72 |
10 - 24 | £9.88 |
25 - 49 | £9.42 |
50 - 99 | £9.09 |
100 + | £8.35 |
*price indicative
- RS Stock No.:
- 182-9779
- Mfr. Part No.:
- 40.62.7.006.4000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 6V dc | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Switching Current | 10A | |
Number of Poles | 2 | |
Latching | No | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 400V | |
Length | 29mm | |
Coil Resistance | 55Ω | |
Coil Power | 650mW | |
Life | 10 x 10^6 cycles | |
Depth | 12.4mm | |
Isolation Coil To Contact | 6kV | |
Minimum Operating Temperature | -40°C | |
Series | 40 | |
Height | 25mm | |
Contact Material | Silver Alloy | |
Maximum Operating Temperature | +85°C | |
Standards Met | EAC | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 6V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V | ||
Length 29mm | ||
Coil Resistance 55Ω | ||
Coil Power 650mW | ||
Life 10 x 10^6 cycles | ||
Depth 12.4mm | ||
Isolation Coil To Contact 6kV | ||
Minimum Operating Temperature -40°C | ||
Series 40 | ||
Height 25mm | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +85°C | ||
Standards Met EAC | ||
- COO (Country of Origin):
- IT
Finder Series 40 Power Relay, DPDT Contact Configuration, 6V DC Coil Voltage - 40.62.7.006.4000
This power relay is a compact DPDT relay designed for PCB mounting. With dimensions of 29x12.4x25mm, it operates on a 6V DC coil voltage and can handle switching voltages up to 400V AC. This device is suitable for various applications requiring effective switching solutions in electrical and automation settings.
Features & Benefits
• High switching voltage capability enhances application versatility
• 2-pole configuration allows for flexible circuit designs
• Coil resistance of 55Ω optimises energy efficiency
• Rated for up to 10 million switching cycles for durability
• Constructed with AgNi contact material for improved conduction
• Operates effectively in temperatures ranging from -40 to +85°C
• 2-pole configuration allows for flexible circuit designs
• Coil resistance of 55Ω optimises energy efficiency
• Rated for up to 10 million switching cycles for durability
• Constructed with AgNi contact material for improved conduction
• Operates effectively in temperatures ranging from -40 to +85°C
Applications
• Suitable for automation systems in blinds and gates
• Applicable in control panels for medical devices
• Utilised in electronic circuit boards and vending machines
• Employed in electrical distribution panels for reliable connectivity
• Appropriate for toys requiring secure switching mechanisms
• Applicable in control panels for medical devices
• Utilised in electronic circuit boards and vending machines
• Employed in electrical distribution panels for reliable connectivity
• Appropriate for toys requiring secure switching mechanisms
Can it operate in extreme temperatures?
Yes, it functions effectively between -40°C and +85°C.
Will it withstand high-voltage applications?
It can manage a maximum switching voltage of 400V AC.
Is it designed for PCB mounting?
Yes, it is specifically designed for PCB mount installations.
Can it handle repetitive switching cycles?
It is rated for up to 10 million cycles, ensuring longevity.
