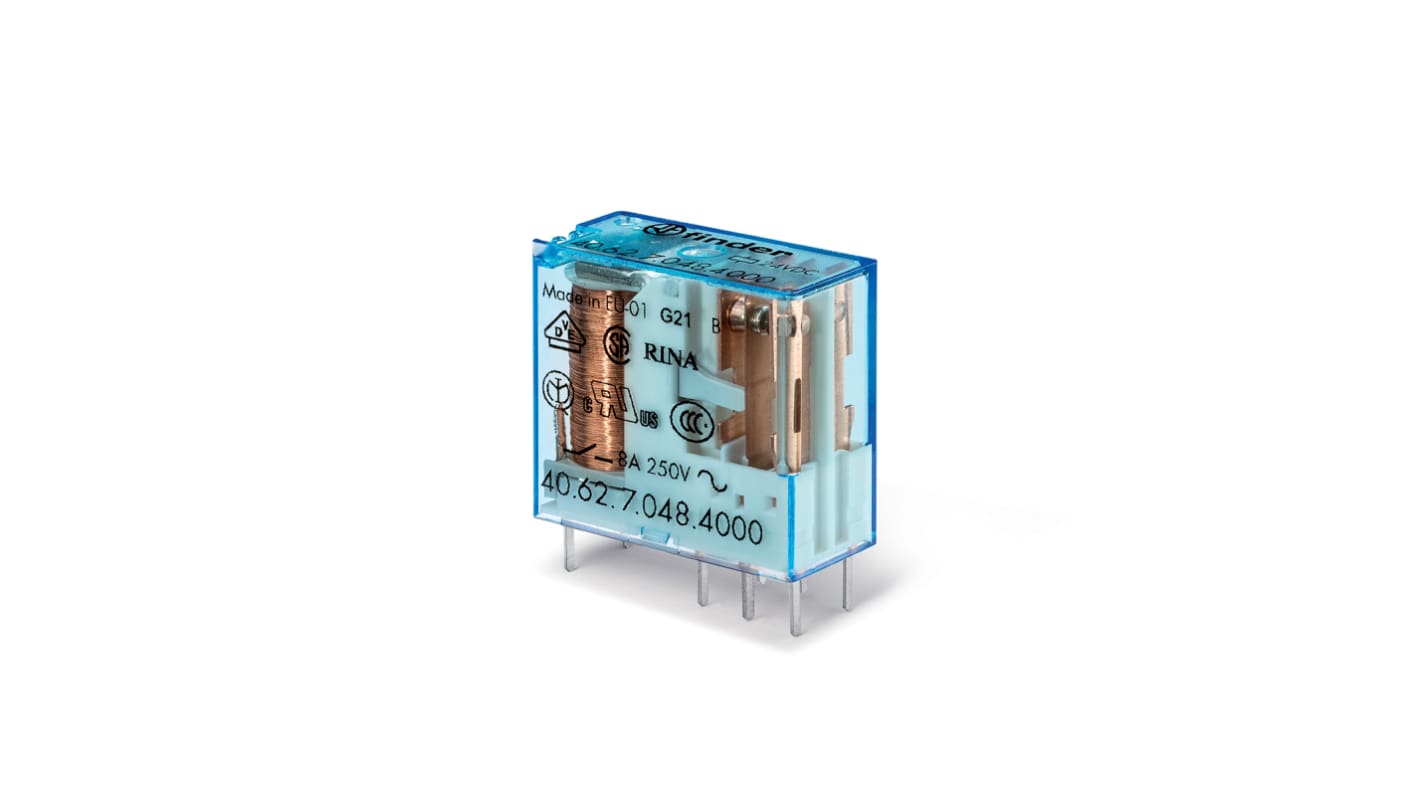

Finder PCB Mount Power Relay, 48V dc Coil, 10A Switching Current, DPDT

RS Stock No.:: 182-9782
Mfr. Part No.:: 40.62.7.048.4000
Brand:: Finder

Finder PCB Mount Power Relay, 48V dc Coil, 10A Switching Current, DPDT

Bulk discount available

Subtotal (1 unit)*

£10.72

(exc. VAT)

£12.86

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship
Plus 73 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 24	£10.72
25 - 49	£9.42
50 - 99	£9.12
100 - 249	£8.34
250 +	£6.95

*price indicative

RS Stock No.:: 182-9782
Mfr. Part No.:: 40.62.7.048.4000
Brand:: Finder

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	48V dc
	Contact Configuration	DPDT
	Mounting Type	PCB Mount
	Switching Current	10A
	Number of Poles	2
	Latching	No
	Series	40 Series
	Terminal Type	Plug In
	Maximum Switching Voltage AC	400V
	Maximum Switching Voltage DC	125V dc
	Maximum Switching Current AC	20 A
	Length	29mm
	Coil Resistance	3500Ω
	Coil Power	650mW
	Contact Material	Silver Alloy
	Height	25mm
	Life	10 x 10^6 cycles
	Isolation Coil To Contact	6kV
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C
	Depth	12.4mm
	Standards Met	cURus, EAC
	Number of Coils	Single

	Select all
	Brand Finder
	Coil Voltage 48V dc
	Contact Configuration DPDT
	Mounting Type PCB Mount
	Switching Current 10A
	Number of Poles 2
	Latching No
	Series 40 Series
	Terminal Type Plug In
	Maximum Switching Voltage AC 400V
	Maximum Switching Voltage DC 125V dc
	Maximum Switching Current AC 20 A
	Length 29mm
	Coil Resistance 3500Ω
	Coil Power 650mW
	Contact Material Silver Alloy
	Height 25mm
	Life 10 x 10^6 cycles
	Isolation Coil To Contact 6kV
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C
	Depth 12.4mm
	Standards Met cURus, EAC
	Number of Coils Single

Finder 40 Series Power Relay, 48V DC Coil Voltage, 10A Switching Current - 40.62.7.048.4000

This power relay is a compact DPDT relay designed for efficient operation in various industrial applications. Featuring a coil voltage of 48V DC, it is an ideal component for electronic circuit boards. The relay is specifically designed for PCB mounting, with dimensions of 29mm in length, 12.4mm in depth, and 25mm in height. This product ensures robust performance in handling a maximum switching voltage of 400V AC and boasts a 10A switching capability.

Features & Benefits

• High insulation resistance of 6kV between coil and contact enhances safety
• Silver alloy contacts provide durability and low contact resistance
• Compact dimensions suit space-restricted installations on circuit boards
• Supports maximum operating temperatures of +85°C for versatile applications
• Proven life expectancy of 10 x 10^6 cycles assures long-term reliability
• Flexible terminal type allows for easy plug-in or PCB mounting

Applications

• Used for automation in blinds, grilles, and shutters
• Implements control circuits in medical and dental settings
• Utilised in control panels for electrical distribution
• Essential for door and gate opening systems
• Engaged in vending machine operations for reliable control

What operational parameters does this relay support in different environments?

This relay operates effectively within a temperature range of -40°C to +85°C, ensuring performance in extreme environments.

How does the relay manage high-voltage switching applications?

It features a maximum switching voltage of 400V AC and 125V DC, making it suitable for diverse high-voltage applications without compromising safety.

What type of materials are used for contact construction in this relay?

The relay is equipped with silver alloy contacts, which enhance conductivity and prolong the relay's operational life.

How does the mounting type influence relay application?

The PCB mount design allows for easy integration onto circuit boards, ideal for compact and sophisticated electronic systems.

What electrical protection features are incorporated in this relay?

It meets cURus and EAC standards, reflecting its compliance with international safety regulations and ensuring reliable operation across various applications.
