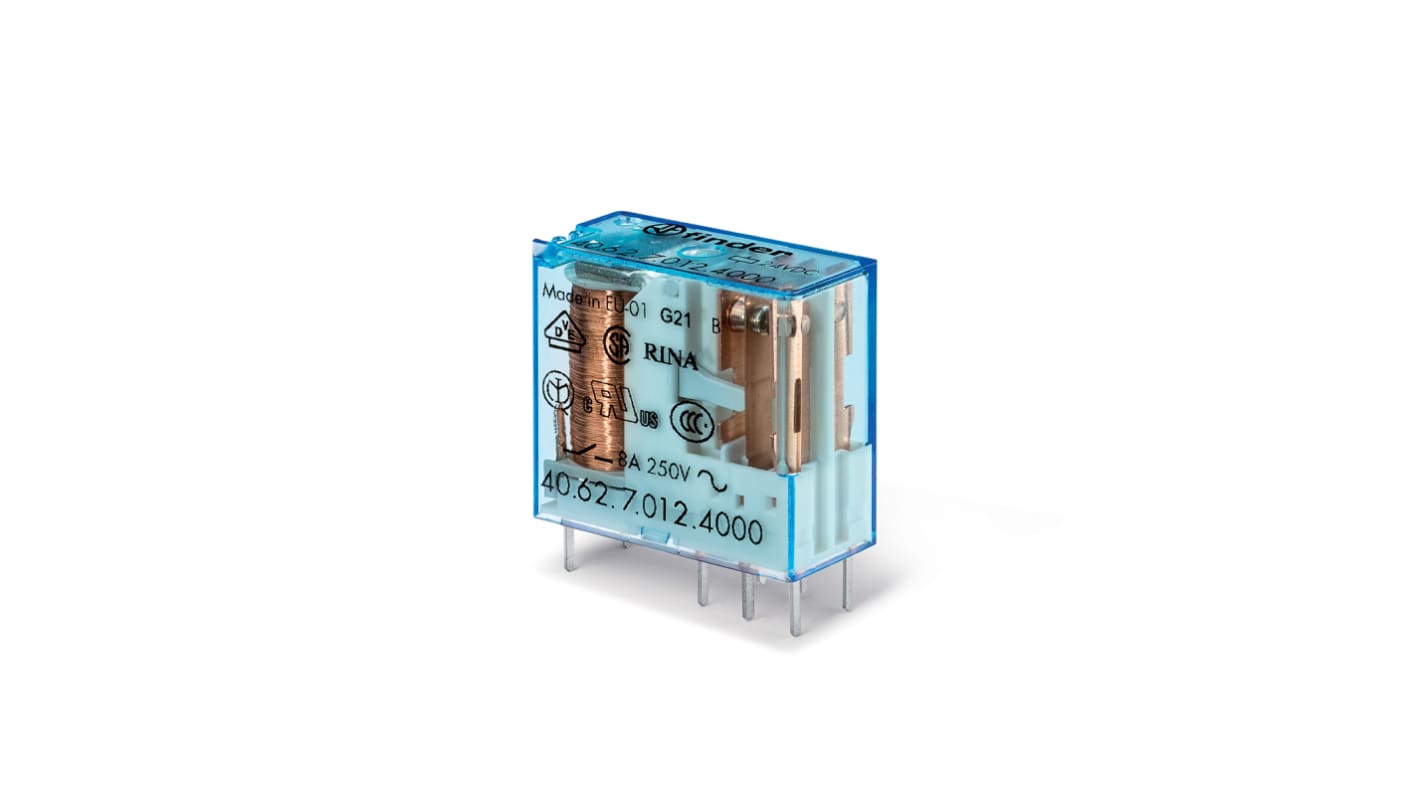

Finder PCB Mount Relay, 12V dc Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 182-9780
- Distrelec Article No.:
- 303-96-554
- Mfr. Part No.:
- 40.62.7.012.4000
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£9.27
(exc. VAT)
£11.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 110 unit(s) ready to ship
- Plus 84 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £9.27 |
25 - 49 | £8.15 |
50 - 99 | £7.88 |
100 - 249 | £7.24 |
250 + | £6.03 |
*price indicative
- RS Stock No.:
- 182-9780
- Distrelec Article No.:
- 303-96-554
- Mfr. Part No.:
- 40.62.7.012.4000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 12V dc | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Switching Current | 10A | |
Number of Poles | 2 | |
Series | 40 Series | |
Latching | No | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 400V | |
Length | 29mm | |
Coil Resistance | 220 O | |
Coil Power | 650mW | |
Isolation Coil To Contact | 6kV | |
Contact Material | Silver Alloy | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Height | 25mm | |
Life | 10 x 10^6 cycles | |
Depth | 12.4mm | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Series 40 Series | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V | ||
Length 29mm | ||
Coil Resistance 220 O | ||
Coil Power 650mW | ||
Isolation Coil To Contact 6kV | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Height 25mm | ||
Life 10 x 10^6 cycles | ||
Depth 12.4mm | ||
- COO (Country of Origin):
- IT
Finder Series 40 Power Relay, DPDT Contact Configuration, 12V DC Coil Voltage - 40.62.7.012.4000
This power relay is suitable for a variety of applications requiring dependable switching. It operates on a 12V DC coil voltage and is designed to manage high voltages, making it appropriate for numerous sectors.
Features & Benefits
• DPDT configuration supports flexible circuit control
• Handles up to 10A switching current
• Durable design with a lifespan of 10 million cycles
• Silver alloy contacts enhance conductivity
• Isolation rating of 6kV between coil and contact for increased safety
• Compact dimensions facilitate easy installation on PCB
• Handles up to 10A switching current
• Durable design with a lifespan of 10 million cycles
• Silver alloy contacts enhance conductivity
• Isolation rating of 6kV between coil and contact for increased safety
• Compact dimensions facilitate easy installation on PCB
Applications
• Control panels for electrical distribution
• Vending machines requiring dependable switches
• Automation systems for blinds and gates
• Control in medical and dental equipment
• Vending machines requiring dependable switches
• Automation systems for blinds and gates
• Control in medical and dental equipment
Can it be easily integrated into existing electronic circuits?
Yes, it is designed for straightforward integration into PCB layouts.
What is the maximum voltage it can handle?
It can safely switch up to 400V AC, providing versatility.
Is it suitable for high-temperature environments?
Yes, it operates effectively within a temperature range of -40°C to +85°C.
How do the silver alloy contacts benefit performance?
They improve conductivity and decrease the risk of contact failure.
What installation requirements should be considered?
Ensure proper mounting on PCB for optimal performance and reliability.
